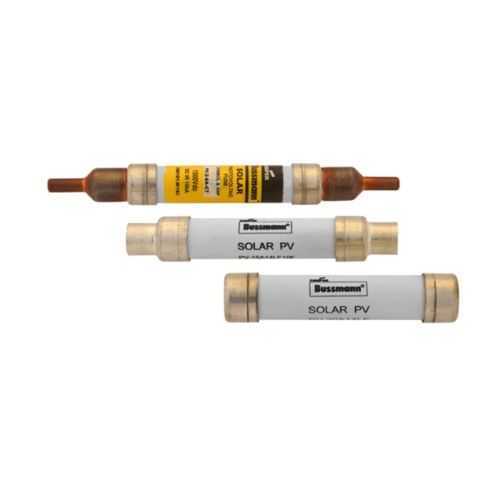

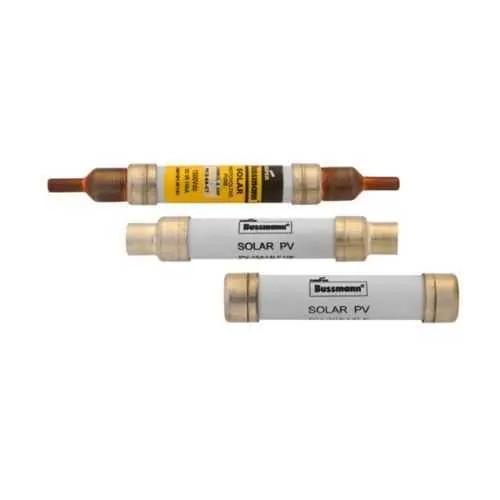

Eaton PV-32A14LF Photovoltaic Fuse - Class gPV, UL Listed
Part Number: PV-32A14LF
Quick Summary
The Eaton PV-32A14LF photovoltaic fuse protects PV strings in solar installations by enabling rapid fault interruption. This helps minimize energy loss and equipment damage when overcurrent or arc faults occur. Engineers often grapple with nuisance tripping, difficult fault tracing, and downtime that erodes plant uptime and output. The device is CE Marked, RoHS Compliant, and UL Listed, with CSA Certification for broader market access, plus IEC 60269 compliance supporting global compliance. By leveraging Bussmann series PV fuses, you gain a compact, reliable protection element that integrates easily with standard PV fuse holders. The result is improved system availability, safer operation, and lower total cost of ownership across turnkey solar projects.
Product Information
Extended Description
PV-32A14LF Eaton: Eaton Bussmann series Fuse-link, high speed, 32 A, DC 1300 V, 14 x 65 mm, gPV, IEC, UL
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-32A14LF
UPC
051712377263
EAN
5027590506076
Product Length/Depth
65 mm
Product Height
14 mm
Product Width
14 mm
Product Weight
12 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
32 A
Voltage rating
1300 Vdc
Interrupt rating
10 kAIC
Class
Class gPV
Pre arc (I2T)
105
Watt losses
10.4 W
Application
Photovoltaic strings
Fuse type
PV-A14LF
Fuse indicator
Non Indicating
Fuse size
14 x 65 mm
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005064.pdf
DA-DC-00005064.pdf
Eaton Bussmann - Products for sustainable energy
High-speed interruption delivers immediate fault energy limits, protecting PV modules and cables while reducing thermal stress and potential fire risk in solar arrays. Business impact: lower maintenance costs and increased uptime through faster fault clearing; application: photovoltaic strings in utility-scale and commercial installations. The 32 A, 1300 Vdc rating supports modern PV configurations with long-lived performance in high-voltage DC systems, while the 10 kAIC interrupt rating ensures robust protection during severe fault events. Application note: suitable for IEC/UL-listed Bussmann PV fuse holders; compatibility simplifies retrofits and stock management for procurement teams. Pre-arc (I2T) of 105 and watt losses of 10.4 W balance fast clearing with manageable heat generation, ensuring reliability in constrained enclosures. Class gPV designation provides recognized PV protection performance, aligning with industry standards and reducing design risk. The fuse is non-indicating, which lowers component cost and avoids false indicators in harsh environments. Dimension and form factor (14 x 65 mm) enable quick replacement in standard 14x65 mm fuse blocks, streamlining commissioning and field service.
Get a Quick Quote for a Eaton PV-32A14LF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-32A14LF?
Enquire Now
FAQs
The PV-32A14LF uses the 14 x 65 mm fuse size and is designed for standard Bussmann PV fuse holders. It integrates easily into common PV string protection blocks, enabling straightforward retrofits and minimal disruption during upgrades. Its non-indicating design reduces complexity in space-limited enclosures while maintaining reliable protection for photovoltaic circuits.
Key specs include a 32 A amperage rating, 1300 Vdc voltage rating, 10 kAIC interrupt rating, and gPV class designation. The fuse type is PV-A14LF with a 14 x 65 mm size and 65 mm depth, flushing out a compact footprint suitable for PV string protection. Pre-arc I2T is 105, and watt losses are 10.4 W, balancing fast clearing with acceptable heat generation.
Yes. With 32 A at 1300 Vdc, 10 kAIC interrupt rating, and IEC/UL CSA certifications, PV-32A14LF is well-suited for utility-scale PV strings requiring rapid fault clearance and robust protection. Its gPV class aligns with PV-specific protection standards, supporting safe, high-energy installations and helping minimize downtime across large solar arrays.
PV-32A14LF is UL Listed, CSA Certified, and IEC 60269 compliant, with CE Marking and RoHS compliance. This combination supports global deployment, simplifies supplier qualification processes, and helps ensure regulatory alignment across North American and international PV projects.
Employing this high-speed PV fuse reduces fault energy, limits equipment damage, and lowers downtime. The rugged 14 x 65 mm form supports easy maintenance and quick replacements in field service, improving uptime. Although non-indicating, its reliable performance and certification breadth deliver a favorable total cost of ownership for solar projects.
