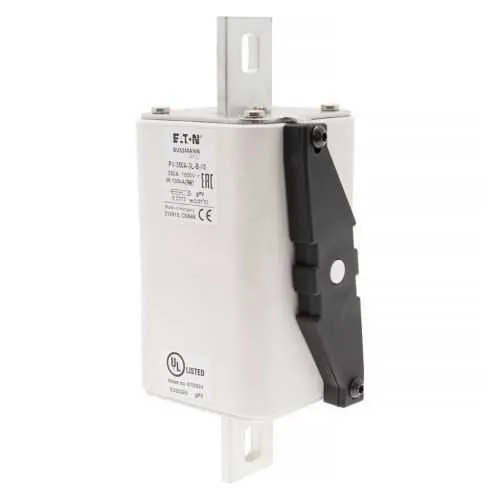

Eaton PV-350A-3L-B-15 Photovoltaic Fuse - Class gPV
Part Number: PV-350A-3L-B-15
Quick Summary
The Eaton PV-350A-3L-B-15 Photovoltaic fuse protects PV systems by interrupting faults in inverters and arrays. Engineers often struggle with high fault currents and arc faults in DC solar circuits, risking downtime and equipment damage. This device carries UL Listed, CSA Certified, and IEC 60269 certifications, with CE marking and RoHS compliance for global deployments. With a 1500 Vdc rating and Class gPV protection, it delivers reliable performance in demanding solar environments. Its bolt-in 3L form factor and integrated status indicators streamline installation and field diagnostics, helping EPCs and end users reduce total cost of ownership while improving system uptime.
Product Information
Extended Description
PV-350A-3L-B-15 Eaton: Eaton Bussmann series high speed square body fuse, 350A 1500V 3L gPV BOLT-IN VER
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-350A-3L-B-15
EAN
5996516041727
Product Length/Depth
201.4 mm
Product Height
91 mm
Product Width
91 mm
Product Weight
1614 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
350 A
Voltage rating
1500 Vdc
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
195000
Watt losses
59 W
Application
Photovoltiac systems, inverters ,Photovoltaic array combiners and disconnects
Fuse type
PV-3L-B-15
Fuse indicator
Centre fuse status indicator
Fuse size
3L
Fitted with:
Side indicator
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
Datasheet - PV-125A-2XL
10201 XL PV fuses
High-speed PV fuse design delivers rapid fault clearance, reducing arc energy and protecting DC wiring; this translates to safer installations and less panel damage in PV systems. The 1500 Vdc voltage rating supports both rooftop and utility-scale PV configurations, enabling safer protection across diverse DC bus architectures. A robust 100 kAIC interrupt rating paired with Class gPV construction ensures dependable fault isolation even in high-current scenarios, lowering the risk of cascading failures in inverters and combiner boxes. Centre fuse status indicator and side indicator provide immediate visual diagnostics, speeding maintenance and minimizing downtime during inspections or fault events. The bolt-in 3L form factor, coupled with a 201.4 mm length and 91 mm width/height, simplifies retrofit and new-install workflows, reducing installation time and spare parts needs. Watt losses of 59 W and pre-arc I2T of 195000 offer predictable thermal and protection performance for mission-critical solar applications, supporting long-term reliability and compliance with IEC/UL standards.
Get a Quick Quote for a Eaton PV-350A-3L-B-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-350A-3L-B-15?
Enquire Now
FAQs
This fuse uses a bolt-in 3L form factor with centre fuse status and side indicators, measuring 201.4 mm long and 91 mm high by 91 mm wide. Ensure proper DC bus clearance, secure mounting within suitable enclosures, and compatible connectors for 1500 Vdc systems. Verify CE/RoHS compliance and UL/CSA certifications are recognized in your region.
Rated for 350 A continuous current, 1500 Vdc maximum voltage, and an interrupt rating of 100 kAIC. It is a Class gPV fuse with a pre-arc I2T of 195000 and watt losses of 59 W, suitable for protecting PV arrays, inverters, and DC bus networks.
Yes. It is specifically designed for photovoltaic systems, including inverters, array combiners and disconnects, providing fast fault interruption and reliable protection in both rooftop and utility-scale installations.
The fuse is UL Listed and CSA Certified, with IEC 60269 recognition. It also carries CE marking and RoHS compliance, supporting global deployment and regulatory adherence.
The centre/status indicators enable quick fault identification, reducing diagnostic time. Its high current rating and fast isolation minimize downtime and potential equipment damage, contributing to lower maintenance costs and improved system availability over the life of the solar installation.
