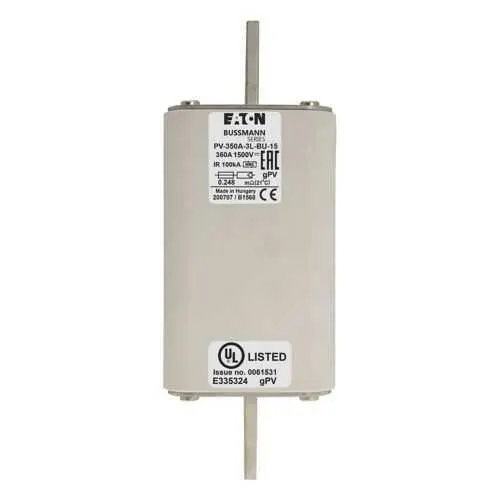

Eaton PV-350A-3L-BU-15 Photovoltaic Fuse - UL Listed
Part Number: PV-350A-3L-BU-15
Quick Summary
Eaton Bussmann series photovoltaic fuses supply fast overcurrent protection for solar arrays in utility-scale and commercial PV systems. Designers often struggle with arc fault protection, nuisance tripping, and downtime during faults; these fuses help minimize outages and simplify maintenance. They are CE marked, RoHS compliant, UL Listed, and CSA Certified, with IEC 60269 compatibility, ensuring global compliance. By offering a clear indicator and a compact 3L bolt-on design, they reduce panel space while improving protection. This combination supports reliable PV protection, reduces total cost of ownership, and aligns with procurement goals for long-term solar projects. Its compatibility with standard Eaton Bussmann PV fuses simplifies stocking and maintenance programs.
Product Information
Extended Description
PV-350A-3L-BU-15 Eaton: Eaton Bussmann series high speed square body fuse, 350A 1500V 3L PV BOLTED NO SIDE IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-350A-3L-BU-15
EAN
5996516041963
Product Length/Depth
201.4 mm
Product Height
73.5 mm
Product Width
73.5 mm
Product Weight
2.6 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
350 A
Voltage rating
1500 Vdc
Class
Class gPV
Watt losses
59 W
Fuse indicator
With Indicator
Fuse size
3L
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
Feature → High current rating and 1500 Vdc rating converge to protect large PV arrays efficiently. Business impact → Fast interruption reduces energy loss and potential damage in PV strings, improving system uptime. Application → Utility-scale solar farms and commercial photovoltaic installations. This design also enables rapid fault clearance even in high-density layouts, minimizing energy waste and downtime. Feature → 3L bolted no-side indicator fuse with an integrated indicator. Business impact → Easy installation, quick fault identification, and reduced maintenance time. Application → Field service and assembly in dense PV layouts. This combination simplifies wiring and reduces field errors during commissioning. Feature → Class gPV, UL Listed, CSA Certified, CE RoHS compliance. Business impact → Regulatory certainty, lower risk of non-compliance, and smoother cross-border projects. Application → International solar projects and OEM equipment protection. Feature → With Indicator and Watt losses 59 W. Business impact → Energy-conscious design with visible fault status; predictable operating efficiency. Application → PV inverters and string protection where efficiency matters. Feature → Compact dimensions 201.4 mm L x 73.5 mm W x 73.5 mm H; 2.6 g weight. Business impact → Space-efficient protection solution with lightweight handling in enclosures. Application → Rooftop and ground-mounted PV arrays with tight packaging constraints. Feature → All-aligned with IEC standards and standard mounting patterns. Business impact → Easier OEM integration and retrofit compatibility, reducing project risk. Application → Modular solar subsystems and protected enclosures across diverse installations.
Get a Quick Quote for a Eaton PV-350A-3L-BU-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-350A-3L-BU-15?
Enquire Now
FAQs
The PV-350A-3L-BU-15 is designed for 1500 Vdc photovoltaic installations and is compatible with Eaton Bussmann PV fuse holders and standard DC solar string protections. Its Class gPV rating and bolted 3L form factor fit typical utility-scale and commercial PV configurations, delivering fast interrupting with a visible indicator for quick fault diagnosis.
With a high 350 A amperage rating and high-speed operation, the fuse rapidly opens on overcurrent events, minimizing arc damage and preventing backfeed across strings. The built-in indicator provides immediate status feedback, aiding fault location during inspections and reducing downtime in solar farms.
Yes. The fuse is CE marked and RoHS compliant, and it carries UL Listed and CSA Certified markings, along with IEC 60269 compatibility. This ensures regulatory alignment for global projects and simplifies cross-border procurement and installation in diverse markets.
Install as a bolted 3L unit with proper torque on the bolts per enclosure manufacturer's guidelines. Ensure 1500 Vdc rating is respected in wiring and insulation, and use matching Eaton Bussmann PV fuse components to preserve the protection scheme. The indicator aids quick fault verification during commissioning.
The fast-acting protection reduces energy losses during faults, lowers the risk of string damage, and minimizes downtime, contributing to improved uptime and lower maintenance costs. The compact 3L form factor saves enclosure space, enabling more efficient system layouts and easier serviceability.
