Eaton PV-355A-3L-15 PV Fuses - UL Listed for PV Arrays gPV
Part Number: PV-355A-3L-15
Quick Summary
Eaton Bussmann photovoltaic fuses protect PV arrays by delivering high-speed DC interruption up to 1500 V in PV array combiners and disconnects. This model helps you avoid nuisance trips and protect critical solar assets, even in demanding environments. The device carries UL Listed, CSA Certified, and IEC 60269 compliance, along with CE RoHS marking, underscoring safety and regulatory alignment. By pairing fast protection with a compact 3L form factor and a top indicator, it reduces downtime and simplifies maintenance, while supporting scalable solar projects and streamlined procurement across electrical protection systems.
Product Information
Extended Description

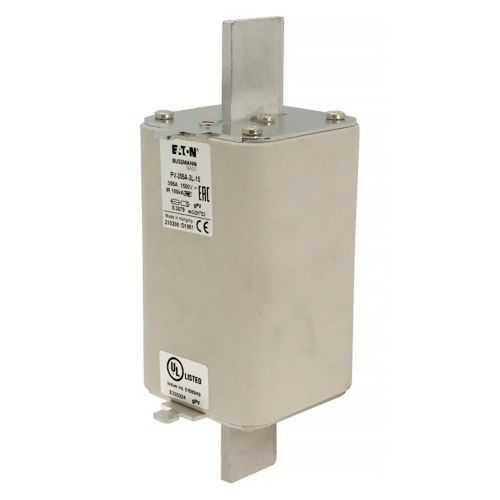

PV-355A-3L-15 Eaton: Eaton Bussmann series Fuse-link, high speed, 355 A, DC 1500 V, 3L, 75 x 91 x 205 mm, gPV, UL, IEC, with indicator, blade connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-355A-3L-15
UPC
051712374521
EAN
5996516001202
Product Length/Depth
217 mm
Product Height
82 mm
Product Width
94 mm
Product Weight
2035 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
355 A
Voltage rating
1500 Vdc
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
44000
Watt losses
84 W
Application
Photovoltaic array combiners and disconnects
Fuse type
PV-3L-15
Fuse indicator
Top fuse status indicator
Fuse size
3L
Fitted with:
Blade with top indicator
Suitable for
SD3L-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
Datasheet - PV-125A-2XL
10201 XL PV fuses
Feature: High amperage rating of 355 A enables robust protection for mid-to-large PV strings. Business Impact: Supports safe, reliable current interruption without nuisance tripping, improving system uptime. Application: Suitable for photovoltaic array combiners and disconnects in commercial and utility-scale installations. Feature: DC voltage rating of 1500 Vdc provides broad compatibility with modern PV systems. Business Impact: Enables long conductors and higher voltage configurations with confidence in safe arc fault control. Application: Ideal for DC protection in 1500 V PV configurations. Feature: Very fast interrupt capability with a 100 kAIC rating minimizes arc energy and enhances personnel safety. Business Impact: Reduces fault impact and equipment damage, lowering maintenance costs. Application: Critical for high-energy PV fault scenarios. Feature: Pre-arc I2T of 44000 integrates predictable fault response, improving selective coordination. Business Impact: Improves system protection philosophy and reduces collateral trip events. Application: PV string protection in complex arrays. Feature: Top fuse status indicator and blade connections simplify installation and monitoring. Business Impact: Accelerates commissioning and fault diagnosis, lowering field labor time. Application: Quick visual status checks during routine maintenance. Feature: 3L fuse size and compatibility with SD3L-S-PV XL fuse base ensure plug-and-play integration. Business Impact: Reduces integration risk and accelerates replacement cycles. Application: Retrofit and new builds in standardized PV protection layouts. Feature: Power dissipation of 84 W informs thermal management planning. Business Impact: Enables accurate enclosure and airflow design to prevent overheating. Application: Enclosures with restricted ventilation commonly used in outdoor PV installations. Feature: CE Marked RoHS Compliant, UL Listed, CSA Certified, and IEC 60269 compliant. Business Impact: Ensures global regulatory alignment, streamlines certification efforts, and supports cross-border projects. Application: Global solar energy projects requiring compliance across multiple markets.
