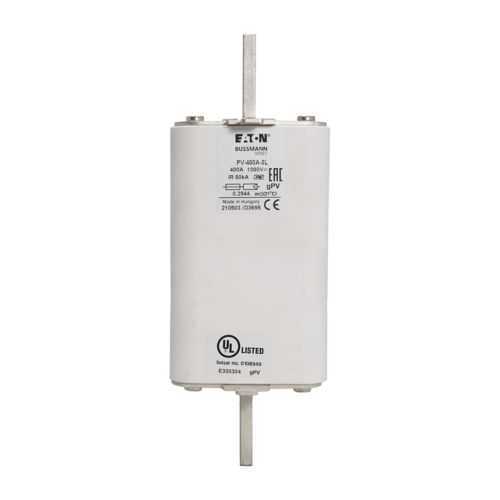

Eaton PV-400A-3L Photovoltaic fuse - Class gPV
Part Number: PV-400A-3L
Quick Summary
Eaton PV-400A-3L Photovoltaic fuse protects DC PV strings and inverters in solar installations. Sizing and compatibility challenges can lead to nuisance trips and extended downtime. This product is certified to IEC 60269, UL Listed, and CSA Certified, aligning with PV industry safety and performance standards. Designed for easy integration with SD3L-S-PV XL fuse bases, it delivers reliability, reduces maintenance costs, and supports scalable PV systems with long-term operational efficiency.
Product Information
Extended Description
PV-400A-3L Eaton: Eaton Bussmann series Fuse-link, high speed, 400 A, DC 1000 V, 3L, 75 x 91 x 205 mm, gPV, UL, IEC, with indicator, blade connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-400A-3L
UPC
051712372190
EAN
5996516000588
Product Length/Depth
75 mm
Product Height
205 mm
Product Width
85 mm
Product Weight
1978 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
400 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
44500
Watt losses
82 W
Application
Photovoltaic systems, inverters, Photovoltaic array combiners and disconnects
Fuse type
PV-3L
Fuse indicator
Top fuse status indicator
Fuse size
3L
Fitted with:
Blade without bolt holes
Suitable for
SD3L-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
CE Square-bodied PV fuse-links
CE Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
40
Get a Quick Quote for a Eaton PV-400A-3L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-400A-3L?
Enquire Now
FAQs
The PV-400A-3L is designed for use with the SD3L-S-PV XL fuse base. This compatibility ensures blade-type connections fit cleanly without bolt holes, enabling a secure, tool-friendly installation in PV arrays, inverters, or disconnects while maintaining fast fault response.
Key specs include a 400 A amperage rating, 1000 Vdc voltage rating, 50 kAIC interrupt rating, and class gPV designation. It’s a high-speed PV-3L fuse with a top status indicator, designed to minimize arc duration and protect DC photovoltaic circuits effectively.
Yes. The PV-400A-3L is purpose-built for photovoltaic systems, including PV arrays, inverters, and array combiners. Its 1000 Vdc rating supports large commercial installations, while its fast-acting design limits fault energy, reducing the risk of collateral damage.
The fuse is certified to IEC 60269, UL Listed, and CSA Certified, with RoHS compliance and CE marking. These certifications verify safety, reliability, and environmental compliance for regulated installations in global markets.
The top fuse status indicator speeds fault detection and replacement, minimizing downtime. The high interrupt rating and robust construction improve system uptime, while standardization with existing bases reduces spare parts inventory and maintenance costs across multiple PV projects.
