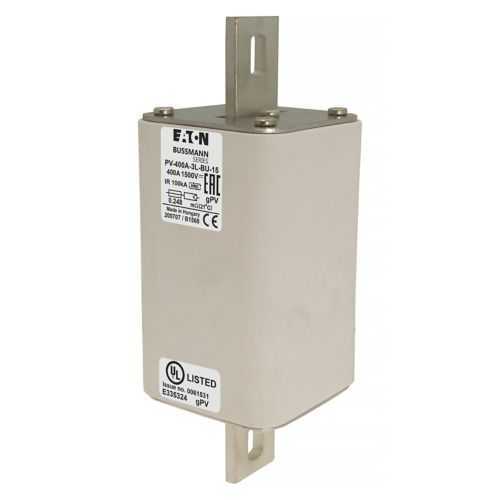

Eaton PV-400A-3L-BU-15 Photovoltaic Fuse - gPV 100 kAIC

Feature 400 A rating with 1500 Vdc capability. Business Impact Enables protection for high-current PV strings and 1.5 kVdc circuits, reducing the risk of damage to inverters and combiners. Application Suitable for photovoltaic inverters, PV array combiners, and disconnects in both utility-scale and commercial solar installations. Feature 100 kAIC interrupt rating. Business Impact Delivers fast fault clearing to minimize arc energy and system downtime, improving overall plant safety and reliability. Application Essential for critical PV power paths where high interrupt capability is required in DC networks. Feature 3L gPV class with non-indicating design and blade-with-bolt-hole fittings. Business Impact Simplifies installation in standard enclosures, reduces wiring complexity, and lowers maintenance needs with a durable mounting solution. Application Ideal for bolted connection installations in 1500 Vdc PV systems. Feature 61 W watt losses and 296000 A2 I2T pre-arc energy. Business Impact Keeps energy losses low while delivering predictable protective performance, supporting efficiency and long-term operating costs. Application Suitable for continuous operation in PV protection schemes under typical solar operating temperatures. Feature CE Marked, RoHS Compliant, UL Listed, CSA Certified. Business Impact Ensures regulatory compliance across diverse markets, enabling smoother project approvals and warranty coverage. Application Relevant to global solar projects with stringent certification requirements. Feature Non-indicating, blade-with-bolt-hole design and 201 mm length. Business Impact Reduces visual maintenance needs and eases mounting in compact spaces, while ensuring robust mechanical integrity. Application Appropriate for restricted enclosure environments and retrofit scenarios.
