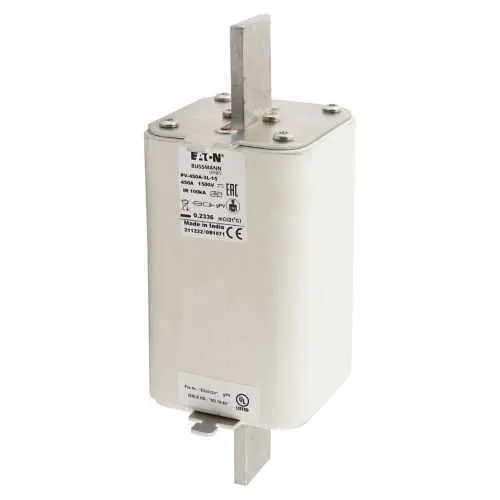

Eaton PV-450A-3L-15 Photovoltaic Fuse - gPV 1500V
Part Number: PV-450A-3L-15
Quick Summary
Photovoltaic fuse solutions from Eaton protect solar inverters and PV arrays with fast, high-current interruption. Engineers often wrestle with arc flash risk and retrofit downtime when selecting PV protection for existing inverters. This fuse family meets RoHS conform, CE marking and UL recognition, ensuring regulatory compliance across global PV deployments. The PV-450A-3L-15 delivers 450 A at 1500 V DC, with a 100 kA interrupt rating and a compact 75 x 205 mm form factor. The module also supports easy installation with a top indicator and compatibility with SD3L-S-PV XL fuse bases. Together, these features translate to faster commissioning, lower field service costs, and consistent protection across commercial and utility-scale PV projects.
Product Information
Extended Description
PV-450A-3L-15 Eaton: Eaton Bussmann series Fuse-link, high speed, 450 A, DC 1500 V, 100 kA, 3L, 75 x 205 mm, gPV, IEC, UL, with indicator
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-450A-3L-15
EAN
5996516044735
Product Length/Depth
205 mm
Product Height
60 mm
Product Width
60 mm
Product Weight
1.8 kg
Compliances
RoHS conform CE Marked
Amperage Rating
450 A
Voltage rating
1500 Vdc
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
412000
Watt losses
67 W
Application
Photovoltiac systems, inverters
Fuse type
PV-3L-15
Fuse indicator
Top fuse status indicator
Fuse size
3L
Fitted with:
Blade with top indicator
Suitable for
SD3L-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
Feature: High-speed PV fuse links with a 3L form factor and 450 A rating. Business impact: Rapid fault clearance minimizes arc energy and protects PV strings and inverters, reducing risk and equipment damage. Application: Suitable for PV systems and inverter protection across commercial installations. Feature: Top fuse status indicator. Business impact: Improves maintenance visibility, accelerates fault diagnostics, and minimizes downtime during inspections. Application: Field monitoring of string-level protection in PV plants. Feature: RoHS conform and CE marked with UL recognition. Business impact: Simplifies cross-border procurement and regulatory compliance, reducing project delays. Application: Global deployments in utility-scale and commercial PV projects. Feature: Compatibility with SD3L-S-PV XL fuse bases. Business impact: Streamlines installation, stocking, and retrofit projects with standard protection architectures. Application: Standard PV base compatibility for quick upgrades. Feature: Electrical specs such as 450 A, 1500 Vdc, 100 kAIC, 3L size, and 67 W watt losses. Business impact: Balanced protection and efficiency, enabling reliable long-term operation. Application: Inverter input protection and PV string protection in harsh environments. Overall: These features translate to faster commissioning, lower maintenance costs, and consistent protection across PV deployments.
Get a Quick Quote for a Eaton PV-450A-3L-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-450A-3L-15?
Enquire Now
FAQs
PV-450A-3L-15 is designed to fit the SD3L-S-PV XL fuse base and similar three‑pole PV bases. Its 3L form factor, blade with top indicator, and 75×205 mm envelope simplify field installation and status monitoring, reducing commissioning time. The blade-and-base compatibility ensures consistent protection across string and inverter assemblies while maintaining a compact footprint.
Key ratings include 450 A continuous amperage, 1500 V DC maximum voltage, and a 100 kA interrupt rating (AIC) for robust fault clearance. Its class gPV designation confirms suitability for PV applications, and pre-arc I2T of 412000 supports predictable arcing performance. With 67 W watt losses, it balances protection with efficiency in solar systems.
Yes. The PV-450A-3L-15 is purpose-built for photovoltaic systems and inverters, including grid-tied installations. Its high-speed fuse-link design minimizes fault energy, protecting DC circuits from string faults, module failures, and inverter faults. The 1500 Vdc rating accommodates modern PV arrays, while the gPV class and RoHS/CE compliance meet common industry requirements.
This fuse carries RoHS conformity and CE marking, along with IEC and UL recognition, aligning with global electrical safety and environmental standards. Compliance supports cross-regional procurement and reduces auditing overhead. Its compatibility with standard PV fuse bases further ensures regulatory alignment during system integration.
Choosing PV-450A-3L-15 enhances uptime by enabling rapid fault isolation thanks to its top-status indicator and fast-acting design. Its 100 kAIC interrupt capacity minimizes catastrophic failures, reducing maintenance costs and service interruptions in solar arrays and inverters. Reliable performance under PV operating conditions translates to lower lifecycle costs and improved system availability.
