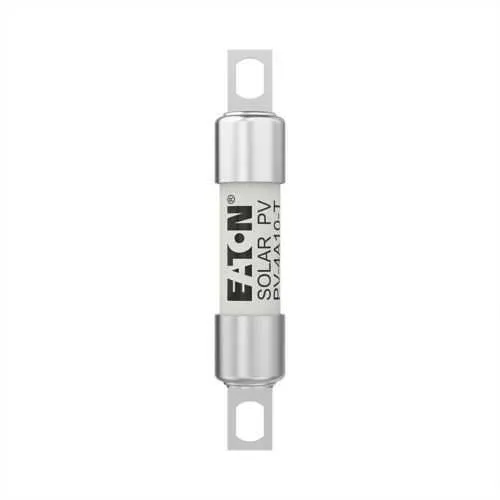

Eaton PV-4A10-T Photovoltaic Fuse - Class gPV
Part Number: PV-4A10-T
Quick Summary
Eaton PV-4A10-T photovoltaic fuse protects solar strings by fast interrupting fault currents in PV installations. Engineers often struggle with nuisance trips and undersized protection that slow solar deployments and raise maintenance costs. This device carries UL Listed, CSA Certified, and IEC Rated certifications, helping teams meet regional safety and reliability requirements. RoHS compliant and CE marked, it also simplifies global procurement while delivering consistent performance in outdoor, high-UV environments. Designed for 1000 Vdc systems, it supports scalable PV arrays and aligns with CHPV modular fuse holders for streamlined installation and long-term service. The compact 10 x 38 mm form factor and bolt-fixing design enable quick retrofits in dense enclosures, reducing labor time and downtime.
Product Information
Extended Description
PV-4A10-T Eaton: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 4A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Bolt
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-4A10-T
UPC
051712357449
EAN
5027590506243
Product Length/Depth
62 mm
Product Height
25 mm
Product Width
52 mm
Product Weight
11.3 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified IEC Rated CCC
Amperage Rating
4 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
9.5
Watt losses
1.5 W
Application
Photovoltaic strings
Fuse type
PV-A10-T
Fuse indicator
Other
Fuse size
10 x 38 mm
Fitted with:
Bolt fixing
Quantity
10
Suitable for
CHPV Modular fuse holder
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005062.pdf
DA-DC-00005062.pdf
Eaton Bussmann - Products for sustainable energy
720110 10x38 mm PV fuses
The PV-4A10-T offers a 1000 Vdc rating with a 4 A nominal current and a 50 kAIC interrupt capability, delivering robust protection for PV strings and reducing arc energy during fault events, which lowers equipment damage and maintenance costs in industrial solar installations. This is complemented by a 1-3 ms time constant under IEC 60269-6 type A (Class gPV), ensuring fast fault interruption and enhanced system safety across high-voltage PV networks and string combiner applications. The non-indicating design minimizes panel clutter and maintenance overhead while providing reliable protection in harsh outdoor environments. Bolt fixing, together with a compact 10 x 38 mm fuse size (62 mm length x 52 mm width x 25 mm height) and a weight of 11.3 g, supports rapid installation and easy integration into CHPV modular fuse holders. Compatibility with CHPV holders simplifies procurement and stocking for solar projects, while RoHS compliance and CE marking streamline cross-border procurement and regulatory adherence. The device’s UL Listed, CSA Certified, and IEC Rated certifications reinforce compliance for multinational deployments, reducing sourcing risk and accelerating project timelines.
Get a Quick Quote for a Eaton PV-4A10-T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-4A10-T?
Enquire Now
FAQs
The PV-4A10-T is designed for bolt fixing and is compatible with CHPV modular fuse holders. Begin by locating the CHPV holder within the inverter or combiner box, align the fuse with the holder’s contacts, tighten the bolts to the manufacturer’s torque specification, and verify a secure electrical connection. Follow lockout-tagout procedures and refer to the Eaton datasheet for installation torque values and clearance requirements.
PV-4A10-T carries UL Listed, CSA Certified, and IEC Rated marks, along with CE and RoHS compliance. This combination supports regulatory alignment across North America and Europe, simplifies supplier qualification, and reduces project risk when sourcing PV protection devices for commercial and utility-scale solar arrays.
The 1000 Vdc rating enables protection directly at high-voltage PV strings, which reduces the need for multiple lower-rated fuses in series and improves protection accuracy. Combined with a 4 A rating and 50 kAIC interrupt capability, it supports safe, reliable operation of modern PV installations and minimizes arc energy during faults.
Yes. The non-indicating design reduces maintenance checks while the bolt-fixed 10 x 38 mm format simplifies replacement in crowded enclosures. Its robust RoHS/CE compliance and multiple certifications also lower procurement risk and downtime caused by regulatory issues, supporting long intervals between service events in outdoor solar environments.
PV-4A10-T uses a 10 x 38 mm fuse size with a total package length of 62 mm, width of 52 mm, height of 25 mm, and a weight of 11.3 g. It is designed for bolt-fix installation and is compatible with CHPV Modular fuse holders, enabling straightforward integration into standard PV protection schemes.
