Eaton PV-4A10F Photovoltaic Fuses - 50 kAIC UL Listed
Part Number: PV-4A10F
Quick Summary
PV-4A10F photovoltaic fuses protect solar power systems by interrupting fault currents in 1000 V DC PV strings. Engineers often struggle with reliable overcurrent protection for high-voltage PV arrays in tight installation spaces. This device is UL Listed, IEC Rated, and CE marked, aligning with global safety, performance, and environmental compliance. The 10x38 mm ferrule-end design eases field wiring in inverters, combiner boxes, and PV harnesses, delivering fast response (1–3 ms) and low watt losses while sustaining a 50 kAIC interrupt rating. Standardization on these fuses reduces maintenance downtime and expedites certification documentation, delivering lower lifecycle costs and safer, more dependable PV installations across commercial and utility-scale projects.
Product Information
Extended Description

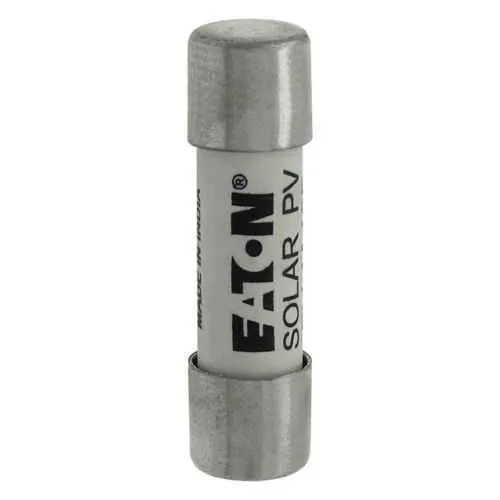

PV-4A10F Eaton: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 4A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-4A10F
Model Code
4A 1000V DC SOLAR FERRULE 10x38mm
UPC
051712245197
EAN
5027590506250
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
9.7 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
CSA Certified IEC Rated UL Listed UL 2579 UL Listed file E121785 CCC Marked
Amperage Rating
4 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
9.5
Watt losses
1 W
Application
Combiner boxes, inverters, pv wire harnesses, Photovoltaic strings
Fuse type
PV-A10F
Fuse indicator
Other
Fuse size
10 x 38 mm
Quantity
10
Suitable for
CHPV Modular fuse holder HPV-DV Inline holder
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005064.pdf
DA-DC-00005064.pdf
Eaton Bussmann - Products for sustainable energy
720110 10x38 mm PV fuses
Feature: 1000 Vdc rating and 50 kAIC interrupt capability. Business Impact: protects high-energy PV circuits from faults, reducing equipment damage and downtime. Application: ideal for inverters, combiner boxes, and PV string harnesses in commercial and utility-scale solar installations. Feature: 1–3 ms time constant. Business Impact: rapid fault clearance minimizes arc energy and thermal stress, extending component life. Application: enhances protection in fast-switching PV power paths across modules and arrays. Feature: 10x38 mm ferrule-end construction. Business Impact: simplifies field wiring, improves contact reliability, and speeds installation. Application: compatible with CHPV modular holders and HPV-DV inline holders for modular protection schemes. Feature: Class gPV with IEC 60269-6 type A and RoHS CE UL compliance. Business Impact: ensures global safety alignment and regulatory readiness, reducing certification risk. Application: suitable for multinational solar projects requiring standard components. Feature: Low watt loss (1 W). Business Impact: decreases heat generation in enclosures, lowers cooling load, and reduces operating cost. Application: preferred for compact PV enclosures and temperature-sensitive installations. Feature: Non-indicating design. Business Impact: reduces potential trip indicators in dimly lit or enclosed spaces, lowering false positives while maintaining protection. Application: non-indicating PV fuses suited for clean panel layouts.
Get a Quick Quote for a Eaton PV-4A10F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-4A10F?
Enquire Now
FAQs
PV-4A10F uses a 10x38 mm ferrule-end design compatible with CHPV modular holders and HPV-DV inline holders. Ensure correct polarity and tighten ferrules per manufacturer guidance to maintain a solid electrical connection and reliable fault interruption.
PV-4A10F is rated for 1000 Vdc, 4 A, with a 50 kAIC interrupt rating and a 1–3 ms time constant. It is Class gPV and non-indicating, with RoHS compliance and UL/IEC/CE certifications.
Yes. The 10x38 mm ferrule-end PV fuse is designed for inverters, combiner boxes, and PV wire harnesses, providing fast protection for PV strings in commercial and utility-scale installations.
PV-4A10F carries UL Listed, IEC Rated, CSA/CE RoHS compliance, and CE marking. These certifications confirm safety, interoperability, and regulatory compliance across global markets, reducing certification risk for projects.
Warranty is listed as Not Applicable in the datasheet. Nevertheless, its high interrupt rating, low watt losses, and robust construction contribute to longer service life and reduced maintenance costs in PV installations.
