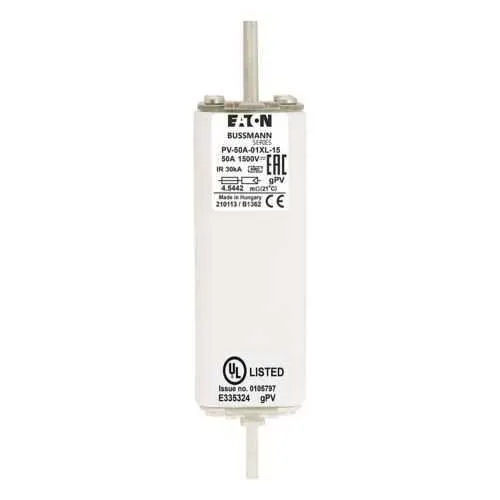

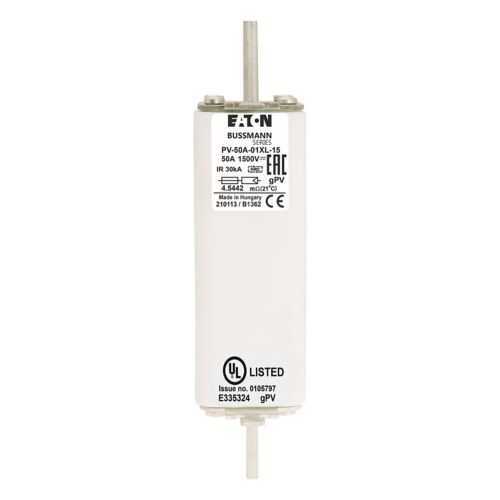

Eaton PV-50A-01XL-15 PV Fuse - gPV (UL/IEC)
Part Number: PV-50A-01XL-15
Quick Summary
The Eaton PV-50A-01XL-15 PV fuse delivers fast protection for photovoltaic inverters and arrays in solar installations. Engineers and maintenance teams often struggle with reliable fault indication, compliance gaps, and lengthy downtime during fuse changes. This device is IEC 60269 certified, UL Listed, CSA Certified, and CE RoHS compliant, supporting global solar projects. Its compact form, integrated top indicator, and blade connections simplify installation, reduce field errors, and lower total cost of ownership. With a 50 A, 1500 Vdc rating and 30 kAIC interrupt capacity, it protects large-scale PV arrays under fault conditions. Designed for compatibility with SD1XL-S-PV XL fuse bases, it supports streamlined field replacement and serviceability.
Product Information
Extended Description
PV-50A-01XL-15 Eaton: Eaton Bussmann series Fuse-link, high speed, 50 A, DC 1500 V, 01XL, 47 x 189 mm, gPV, UL, IEC, with indicator, blade connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-50A-01XL-15
UPC
051712400633
EAN
5996516001226
Product Length/Depth
217 mm
Product Height
65 mm
Product Width
85 mm
Product Weight
1200 g
Warranty
No warranty
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
50 A
Voltage rating
1500 Vdc
Interrupt rating
30 kAIC
Class
Class gPV
Pre arc (I2T)
175
Watt losses
25 W
Application
Photovoltiac systems, inverters ,Photovoltaic array combiners and disconnects
Fuse type
PV-01XL-15
Fuse indicator
Top fuse status indicator
Fuse size
01XL
Fitted with:
Blade with top indicator
Suitable for
SD1XL-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
Datasheet - PV-125A-2XL
10201 XL PV fuses
Feature: High-speed PV fuse with DC rating of 1500 V and 50 A. Business Impact: Ensures rapid fault clearing to minimize arc flash risk and equipment damage, reducing downtime in PV inverters and solar arrays. Application: Suitable for PV systems and inverter protection in modern solar installations. Feature: Top fuse status indicator integrated into the fuse. Business Impact: Immediate visual health check saves service time and improves maintenance planning for solar projects. Application: Field service and ongoing monitoring of PV arrays. Feature: Blade connections compatible with SD1XL-S-PV XL fuse base. Business Impact: Streamlines installation and retrofit projects, lowering labor costs and risk of mis-wiring. Application: On-site fuse replacements and panel upgrades. Feature: Compliance and certifications (IEC 60269, UL Listed, CSA Certified, CE RoHS). Business Impact: Reduces regulatory risk and supports global deployments across markets with minimal compliance effort. Application: Global solar deployments and equipment procurements. Feature: Size, weight, and form factor (217 mm length, 65 mm height, 85 mm width, 1200 g). Business Impact: Easier mounting in compact enclosures and retrofit scenarios, enabling denser protective layouts. Application: Space-constrained PV disconnect assemblies. Feature: Pre-arc I2T 175 and 30 kAIC interrupt rating. Business Impact: Predictable performance under surge conditions, improving system reliability and compliance with high-energy PV fault scenarios. Application: Large photovoltaic arrays and utility-scale inverters.
Get a Quick Quote for a Eaton PV-50A-01XL-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-50A-01XL-15?
Enquire Now
FAQs
Use the blade connections to insert the fuse into the SD1XL-S-PV base, ensuring the top fuse status indicator is visible. Confirm compatibility with a 1500 Vdc system and secure mounting within the enclosure. After installation, verify the indicator shows a healthy state to avoid misdiagnosis during startup.
The fuse is rated for 50 A continuous current and 1500 Vdc maximum voltage, with a 30 kAIC interrupt rating. It is a gPV class fuse designed for photovoltaic protection, featuring a 175 I2T pre-arc value for reliable arc suppression and a 25 W watt loss profile during operation.
Yes. The device is UL Listed and CSA Certified, IEC 60269 compliant, and CE RoHS compliant, ensuring it meets widely recognized safety and environmental standards for global solar installations.
The fuse measures 217 mm in length, 65 mm in height, and 85 mm in width, with an approximate weight of 1200 g. This size supports installation in compact PV disconnect assemblies while maintaining robust protection.
It is designed for photovoltaic systems, inverters, PV array combiners and disconnects. Its gPV class rating, top-indicator, and 1500 Vdc capability make it ideal for large solar installations requiring reliable DC protection and straightforward field servicing.
