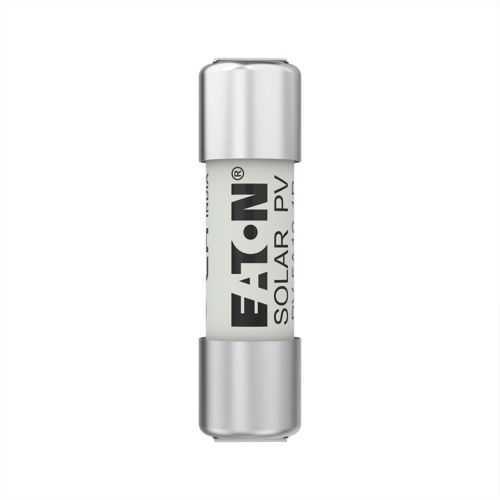

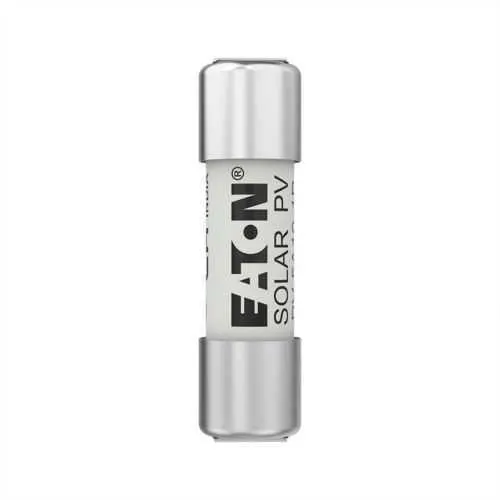

Eaton PV-5A10-1P Photovoltaic Fuse - Class gPV, 50 kAIC
Part Number: PV-5A10-1P
Quick Summary
PV-5A10-1P photovoltaic fuse is a high-speed protection device for solar PV strings. It interrupts faults quickly to minimize damage and downtime in photovoltaic installations. This fuse carries RoHS compliance, CE marking, UL Listed and CSA Certified, aligned with IEC 60269-6 type A classification for Class gPV protection. By standardizing on this solution, projects gain predictable performance, reduced maintenance costs, and simpler procurement across global sites. The compact 10x38 mm form factor and PCB fixation simplify panel design and installation workflows while supporting scalable solar deployments.
Product Information
Extended Description
PV-5A10-1P Eaton: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 5A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Single PCB tab
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-5A10-1P
Model Code
5A 1000V DC SOLAR PCB-1 10x38mm
UPC
051712373517
EAN
5027590506298
Product Length/Depth
44 mm
Product Height
38 mm
Product Width
52 mm
Product Weight
12.1 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
CSA Certified IEC Rated UL Listed CCC
Amperage Rating
5 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
19
Watt losses
1.6 W
Application
Photovoltaic strings
Fuse type
PV-A10-1P
Fuse indicator
Other
Fuse size
10 x 38 mm
Fitted with:
PCB Fixing single pin
Quantity
10
Suitable for
CHPV Modular fuse holder
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005062.pdf
DA-DC-00005062.pdf
Eaton Bussmann - Products for sustainable energy
720110 10x38 mm PV fuses
Feature: 1000 Vdc rating, 5 A current, 50 kAIC interrupt rating, Class gPV, and 1-3 ms time constant. Business Impact: Enables high-voltage PV protection with fast clearing to limit module and wiring damage, improving overall system reliability. Application: Suitable for photovoltaic strings in utility-scale and commercial PV installations. Feature: Non-indicating design with a PCB fixing single pin and a 10x38 mm footprint. Business Impact: Reduces panel clutter and simplifies PCB mounting, cutting assembly time and error rates. Application: Ideal for compact string combiner boxes and modular fuse holders. Feature: Watt losses of 1.6 W and a compact footprint. Business Impact: Minimizes heat generation, preserving module efficiency and thermal performance under load. Application: Critical in densely packed solar arrays. Feature: Compatible with CHPV Modular fuse holders. Business Impact: Streamlines integration into standard protection architectures, lowering installation risk and training needs. Application: Widely used in CHPV-based protection schemes. Feature: Compliance and certifications RoHS, CE, UL Listed, CSA Certified, IEC Rated. Business Impact: Ensures regulatory alignment, simplifying audits and supplier qualification. Application: Required for global solar projects and regulated markets.
Get a Quick Quote for a Eaton PV-5A10-1P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-5A10-1P?
Enquire Now
FAQs
PV-5A10-1P is a 10x38 mm PV fuse with PCB fixing single pin, designed for easy insertion into CHPV modular fuse holders. Ensure correct orientation and clearance within the string enclosure, verify that the holder supports 10x38 mm fuses, and mount on a suitable PCB or panel surface to maintain a reliable electrical connection and thermal dissipation.
The device provides a 5 A amperage rating, 1000 Vdc voltage rating, and a 50 kAIC interrupt rating with a 1-3 ms time constant. This combination allows rapid fault interruption in PV strings, protecting modules and conductors from overcurrent while maintaining system uptime and reducing arc-related damage.
Yes. PV-5A10-1P is RoHS compliant, CE marked, UL Listed, and CSA Certified, with IEC 60269-6 type A classification for photovoltaic applications. These certifications support regulatory compliance, supplier qualification, and risk mitigation across multinational solar installations.
By delivering fast fault interruption (1-3 ms) and high interrupt rating, the fuse minimizes downtime, reduces module and wiring damage, and simplifies maintenance scheduling. Its compact form and low watt losses improve thermal stability, contributing to longer string life and lower life cycle costs in solar projects.
PV-5A10-1P is ideal for photovoltaic strings in commercial and utility-scale installations, particularly where CHPV modular fuse holders are used. Its 10x38 mm size, PCB-Fix single-pin mounting, and non-indicating design suit compact string boxes, module-level protection blocks, and consolidated protection schemes requiring fast, compliant PV fuses.
