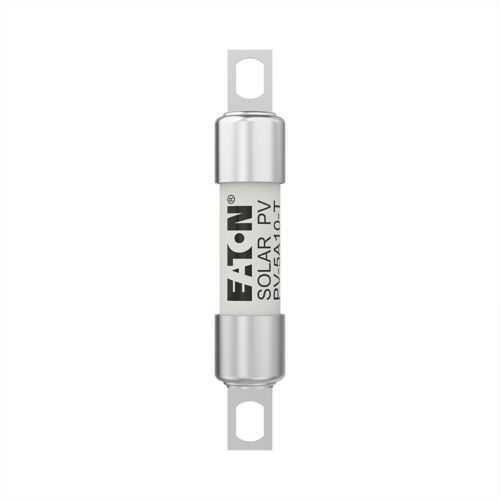

Eaton PV-5A10-T Photovoltaic Fuse - 1000 Vdc, 50 kAIC gPV

Feature 1: 1000 Vdc voltage rating → Business Impact: Enables safe, scalable protection for high-voltage PV strings with reduced risk of insulation failure. Application: Ideal for utility-scale and large commercial PV installations where 1000 Vdc safety margins are essential. Feature 2: Fast time constant 1-3 ms → Business Impact: Limits energy released during short-circuit events, reducing arc energy and downstream damage. Application: Critical in rapid response scenarios for PV arrays, improving system uptime. Feature 3: 50 kAIC interrupt rating → Business Impact: Withstands and interrupts high fault currents, ensuring equipment protection and crew safety. Application: Suitable for high-current fault scenarios in PV systems and fuse-holder assemblies. Feature 4: Class gPV designation → Business Impact: PV-specific protection class aligns with industry standards, supporting compliance across regions. Application: Certified for photovoltaic string protection in mixed portfolios. Feature 5: Bolt fixing and 10x38 mm size → Business Impact: Simplifies mounting and reduces installation time, lowering labor costs. Application: Quick integration into CHPV modular fuse holders and backplanes. Feature 6: Low watt losses (1.6 W) → Business Impact: Minimizes heat generation and improves overall inverter and cabling efficiency. Application: Essential for dense PV string layouts where thermal management matters. Feature 7: Compatibility with CHPV modular fuse holders → Business Impact: Streamlines field replacements and maintenance planning. Application: Fast swaps during inspections without rewiring. Feature 8: RoHS, CE, UL, CSA, CCC certifications → Business Impact: Ensures broad regulatory compliance and market access. Application: Facilitates cross-border deployments and supplier qualification. Feature 9: Fitted with bolt fixing and compact footprint → Business Impact: Reduces installation footprint and enables robust mechanical mounting. Application: Suitable for conduit routes and tight PV enclosures. Feature 10: Manufactured for photovoltaic strings with 10x38 mm fuse size → Business Impact: Standardization supports inventory management and spare part availability. Application: Widely compatible with common PV string protection schemes.
