Eaton PV-600A-3L-B Photovoltaic Fuse - UL Listed
Part Number: PV-600A-3L-B
Quick Summary
Photovoltaic fuse provides fast DC protection for solar systems and PV inverters. Unprotected PV strings risk arc faults and costly downtime during switching events. This part carries IEC 60269, UL Listed, and CSA certifications, along with CE marking and RoHS compliance. With a compact 3L form factor, bolted connections, and top fuse status indicator, it streamlines installation and improves uptime. In demanding environments, it helps protect inverters and modules while meeting gPV class requirements, offering reliable protection with measurable impact on system availability. Engineers value documented data for safe operation, reduced maintenance, and easier compliance audits.
Product Information
Extended Description

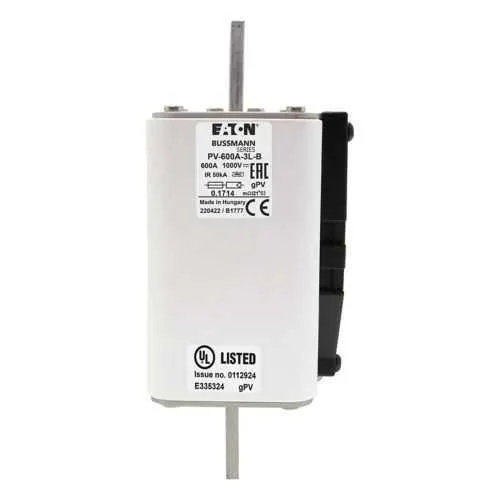

PV-600A-3L-B Eaton: Eaton Bussmann series Fuse-link, high speed, 600 A, DC 1000 V, 3L, 75 x 91 x 205 mm, gPV, UL, IEC, with indicator, bolted connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-600A-3L-B
UPC
051712391801
EAN
5996516001653
Product Length/Depth
91 mm
Product Height
201.4 mm
Product Width
73.5 mm
Product Weight
1557 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
600 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
137000
Watt losses
108 W
Application
Photovoltaic systems, inverters, solar applications
Fuse type
PV-3L
Fuse indicator
Top fuse status indicator
Fuse size
3L
Fitted with:
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
CE Square-bodied PV fuse-links
CE Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
Feature: High-speed DC protection rated at 600 A and 1000 Vdc. Business Impact: Delivers rapid interruption to limit fault energy, reducing panel damage and downtime. Application: Ideal for PV arrays, inverters, and solar strings where swift de-energization is critical. Feature: 50 kAIC interrupt rating. Business Impact: Supports large fault currents without compromising safety, ensuring system reliability in higher‑risk installations. Application: Utility-scale and commercial PV projects where fault current levels are substantial. Feature: Pre-arc (I2T) 137000. Business Impact: Minimizes arcing energy during interruption, extending component life and reducing thermal stress on conductors. Application: DC PV circuits with tight enclosure temperatures. Feature: Top fuse status indicator. Business Impact: Enables quick field diagnostics, reducing maintenance time and improving asset uptime. Application: On-site inspections and remote monitoring scenarios. Feature: Fitted with blade bolts and bolted connections (3L). Business Impact: Simplifies mounting in compact enclosures and improves mechanical reliability under vibration. Application: Enclosed PV protection cabinets and array combiner boxes. Feature: Class gPV, CE RoHS compliant, UL Listed, CSA Certified, IEC 60269. Business Impact: Ensures global compliance, safer operation, and easier procurement across international projects. Application: Multinational solar deployments and regulated installations.
