Eaton PV-63ANH1 Photovoltaic Fuse - UL Listed gPV
Part Number: PV-63ANH1
Quick Summary
Photovoltaic fuse protection with the PV-63ANH1 ensures reliable DC protection for solar arrays up to 1000 V in industrial electrical systems. Engineers often grapple with selecting fast-acting protection that minimizes nuisance trips and reduces maintenance in outdoor PV farms. The device carries IEC 60269, UL Listed and CSA Certified marks, along with CE marking RoHS compliance, aligning with global safety and environmental standards. Designed for PV array combiners and disconnects, the PV-63ANH1 integrates with SD1-D-PV NH fuse bases, enabling quick installation and robust protection. This combination translates to lower downtime, simpler compliance reporting, and a more predictable protective strategy for procurement and engineering teams.
Product Information
Extended Description

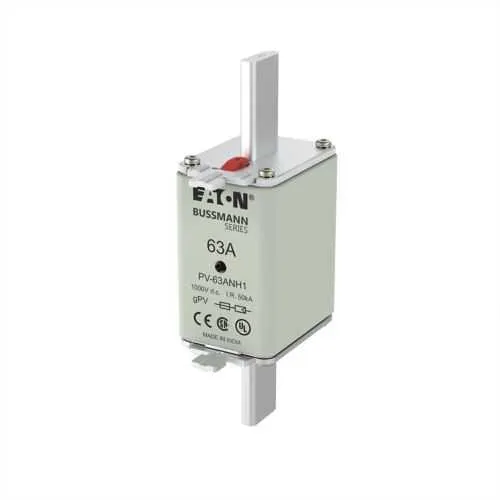

PV-63ANH1 Eaton: Eaton Bussmann series Fuse-link, high speed, 63 A, DC 1000 V, NH1, gPV, UL PV, UL, IEC, dual indicator
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-63ANH1
UPC
051712377133
EAN
5027590506342
Product Length/Depth
137 mm
Product Height
68 mm
Product Width
134 mm
Product Weight
434 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
63 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
470
Watt losses
12 W
Application
Photovoltaic array combiners and disconnects
Fuse type
PV-ANH1
Fuse indicator
Combination fuse status indicator
Fuse size
NH1
Fitted with:
Blade without bolt holes
Suitable for
SD1-D-PV NH Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
CE Square-bodied PV fuse-links
CE Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
720133 NH photovoltaic fuse links
High-speed PV fuse-link delivers rapid fault interruption, limiting energy to PV modules and wiring. The 63 A, 1000 Vdc rating supports direct connection to DC strings in utility-scale and commercial PV installations. By meeting gPV class requirements, the fuse provides reliable protection in harsh solar environments and helps prevent insulation damage and fire risk. It also features a dual status indicator for immediate at-a-glance health checks, reducing maintenance overhead. Compatibility and installation advantages include NH1 fuse size, blade without bolt holes, and compatibility with SD1-D-PV NH Fuse base, which simplifies enclosure fit and field servicing. Certifications and compliance are supported by CE, RoHS, IEC, UL and CSA marks, streamlining procurement and cross-border deployments. Electrical characteristics like pre-arc I2T of 470 and 50 kAIC interrupt rating translate into predictable fault clearing and system resilience. Practical dimensions and weight—137 mm length, 134 mm width, 68 mm height, 434 g—ensure reliable installation in standard PV protection enclosures.
