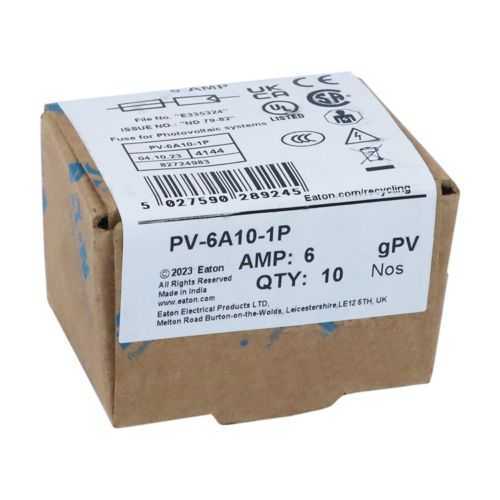

Eaton PV-6A10-1P PV Fuse - Class gPV, 1000 Vdc
Part Number: PV-6A10-1P
Quick Summary
Eaton Bussmann photovoltaic fuses protect PV strings with fast overcurrent protection for solar arrays. Engineers often struggle with arc faults and downtime when protection isn’t PV-optimized. The device carries UL Listed, CE Marked, and IEC rated certifications, supporting global compliance. Its compact 10x38 mm format, PCB fixing single pin, and low watt losses simplify installation and reduce thermal impact, while maintaining reliable protection across outdoor ambient conditions. For efficiency-focused solar projects, this fusion of performance and practicality translates into lower maintenance costs and faster ROI across commercial and utility-scale deployments.
Product Information
Extended Description
PV-6A10-1P Eaton: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 6A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Single PCB tab
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-6A10-1P
UPC
051712373524
EAN
5027590506359
Product Length/Depth
44 mm
Product Height
38 mm
Product Width
52 mm
Product Weight
12.1 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
UL Listed CSA Certified IEC Rated CCC
Amperage Rating
6 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
30
Watt losses
1.8 W
Application
Photovoltaic strings
Fuse type
PV-A10-1P
Fuse indicator
Other
Fuse size
10 x 38 mm
Fitted with:
PCB Fixing single pin
Quantity
10
Suitable for
CHPV Modular fuse holder
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005062.pdf
DA-DC-00005062.pdf
Eaton Bussmann - Products for sustainable energy
720110 10x38 mm PV fuses
Feature: High electrical ratings enable fast protection for PV strings. Benefit: Reduces arc energy and minimizes damage to modules, improving reliability and system availability in critical solar applications. Application: Ideal for 1000 Vdc photovoltaic strings in rooftop and utility-scale installations, delivering consistent performance where fast fault clearance matters. Long-tail keywords integrated: 1000 Vdc PV fuse, fast overcurrent protection, PV string protection. Business impact: Lower risk of fire, reduced downtime, and extended component life. Feature: Compact 10x38 mm package with PCB fixing single pin. Benefit: Easier mounting in tight junction boxes and microinverter terminals, reducing assembly time and labor costs. Application: Module-level protection in small form factor PV assemblies, CHPV holder compatibility. Long-tail keywords integrated: 10x38 mm PV fuse, PCB fixing single pin, compact PV protection. Business impact: Lower installation cost and improved reliability in dense solar arrays.
Get a Quick Quote for a Eaton PV-6A10-1P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-6A10-1P?
Enquire Now
FAQs
PV-6A10-1P is designed for CHPV modular fuse holders and uses a PCB fixing single pin within a 10x38 mm footprint. This enables straightforward field replacements and modular integration in solar junction boxes, reducing labor time during installation and upgrades.
The fuse is rated for 1000 Vdc, 6 A with a 50 kAIC interrupt rating and a 1–3 ms time constant. It conforms to IEC 60269-6 type A and Class gPV, delivering fast, reliable protective action for PV strings.
Yes. With a high interrupt rating, 1000 Vdc capability, and UL/IEC/CE certifications, it is appropriate for both utility-scale and rooftop PV installations, providing dependable protection across diverse hotspots and weather conditions.
This fuse is UL Listed, CSA Certified, IEC Rated, and CE Marked, with RoHS compliance. These certifications support global procurement and help meet stringent safety and performance requirements in regulated markets.
By delivering fast fault clearance, reducing arc energy, and enabling easy installation with CHPV holders, it lowers maintenance costs and downtime. The compact form factor and low watt losses further improve system efficiency, contributing to quicker payback on solar projects.
