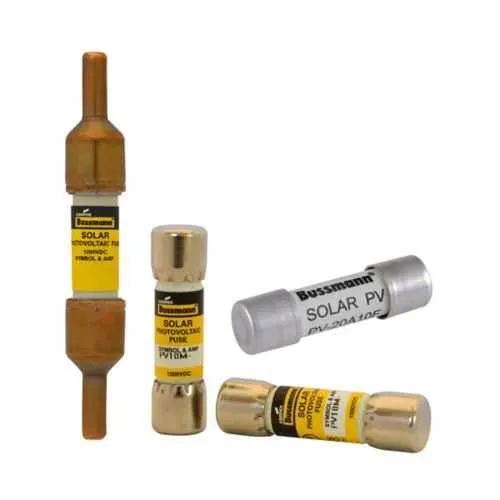

Eaton PV-6A10-2P Photovoltaic Fuses - Class gPV
Part Number: PV-6A10-2P
Quick Summary
PV-6A10-2P photovoltaic fuses protect solar arrays in PV strings. Designers often struggle to balance fast fault interruption with low energy loss in high-voltage PV systems. These fuses are IEC rated, UL Listed, and CSA Certified, with RoHS and CE compliance to support global deployments. Rated at 1000 Vdc and 6 A with a 50 kAIC interrupt capability, they deliver reliable protection while minimizing downtime and maintenance costs. Their compact 10 x 38 mm footprint and PCB-fix double-pin design simplify installation in CHPV modular fuse holders and compact inverters, enabling efficient solar farm or rooftop deployments.
Product Information
Extended Description
PV-6A10-2P Eaton: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 6A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Dual PCB tab
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-6A10-2P
UPC
051712373586
EAN
5027590506366
Product Length/Depth
44 mm
Product Height
38 mm
Product Width
52 mm
Product Weight
12.3 g
Warranty
Not Applicable
Compliances
RoHS Compliant CE Marked
Certifications
IEC Rated UL Listed CSA Certified CCC
Amperage Rating
6 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
30
Watt losses
1.8 W
Application
Photovoltaic strings
Fuse indicator
Other
Fuse size
10 x 38 mm
Fitted with:
PCB Fixing double pin
Quantity
10
Suitable for
CHPV Modular fuse holder
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00005062.pdf
DA-DC-00005062.pdf
Eaton Bussmann - Products for sustainable energy
720110 10x38 mm PV fuses
High voltage capacity and current rating enable direct protection of PV strings up to 1000 Vdc and 6 A. This translates to improved system safety and reduced risk of module damage during short circuits or overloads, particularly in utility-scale and rooftop installations. Use in photovoltaic strings across commercial solar projects reduces the need for retrofits and ensures consistent protection across banked modules. Fast response with a 1–3 ms time constant and a pre-arc I2T of 30 minimizes arcing energy and material stress in faults. The result is lower energy release, reduced module hot spots, and fewer downstream faults, improving array uptime. Class gPV construction and broad certifications support multi-region compliance (IEC Rated, UL Listed, CSA Certified, CCC) and RoHS/CE marking. This provides confidence in procurement and reduces qualification time, accelerating project timelines. Compact 10 x 38 mm form factor with PCB-fixing double pins simplifies mechanical integration and automated assembly. The device is easily mounted in CHPV modular fuse holders, cutting installation time and inventory complexity. Energy efficiency is enhanced by low watt losses of 1.8 W, preserving PV string yield in the long term. Minimal parasitic heat also lowers thermal stress in dense arrays, supporting maintenance intervals and reliability.
Get a Quick Quote for a Eaton PV-6A10-2P
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-6A10-2P?
Enquire Now
FAQs
The PV-6A10-2P is fitted with PCB fixing double pins and a 10 x 38 mm footprint, designed for straightforward installation into CHPV modular fuse holders. Ensure the string voltage is within 1000 Vdc, secure the fuse using the double-pin terminals, and confirm proper polarity and clearance per system design. This setup minimizes wiring complexity and supports automated assembly in solar inverters and combiner boxes.
It combines a 1000 Vdc rating with a 6 A amperage rating and a 50 kAIC interrupt capability, delivering fast protection at high voltage while limiting arc energy. This makes it particularly effective for rooftop and utility-scale PV strings where voltage transients and short circuits pose significant risk to modules and wiring.
Yes. The device is IEC rated, UL Listed, and CSA Certified, with RoHS compliant and CE markings. These certifications support cross-border deployments, simplifying procurement, supplier qualification, and regulatory compliance for global solar projects.
Key specs include 6 A amperage rating, 1000 Vdc voltage rating, 50 kAIC interrupt rating, Class gPV designation, 1–3 ms time constant, and a 10 x 38 mm fuse size. These parameters define fast, high-voltage protection suitable for PV strings and CHPV holders.
Low watt losses of 1.8 W minimize parasitic heating in dense arrays, helping sustain energy yield over time and reduce thermal stress. The fast response reduces arc energy and downtime, supporting higher up-time in solar deployments and potentially lowering maintenance costs and service intervals.
