Eaton PV-80A-01XL-15 PV Fuses - 80A/1500V UL Listed
Part Number: PV-80A-01XL-15
Quick Summary
PV-80A-01XL-15 PV fuses protect solar arrays by interrupting faults with fast, high-current disconnection in DC circuits. Engineers often wrestle with nuisance trips and reliability challenges in outdoor solar deployments, driving maintenance costs and downtime. UL Listed, IEC 60269 certified, and CE RoHS compliant, these fuses meet global safety and performance standards. The compact 53 mm length and top fuse status indicator simplify field diagnostics, while blade connections ease installation. For project teams, predictable performance translates to lower risk in utility-scale solar and faster procurement by leveraging Eaton Bussmann platforms.
Product Information
Extended Description

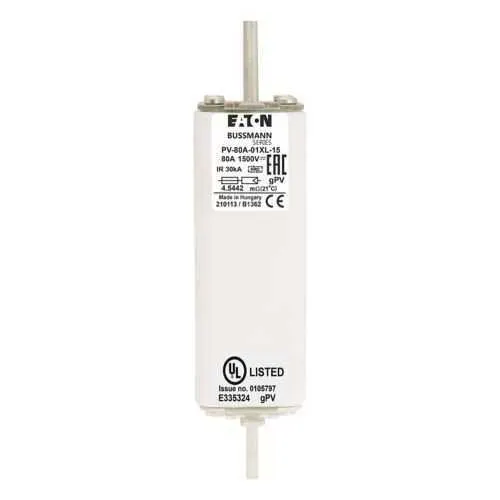

PV-80A-01XL-15 Eaton: Eaton Bussmann series Fuse-link, high speed, 80 A, DC 1500 V, 01XL, 47 x 189 mm, gPV, UL, IEC, with indicator, blade connections
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-80A-01XL-15
UPC
051712372275
EAN
5996516000526
Product Length/Depth
53 mm
Product Height
23 mm
Product Width
39 mm
Product Weight
93 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
80 A
Voltage rating
1500 Vdc
Interrupt rating
30 kAIC
Class
Class gPV
Pre arc (I2T)
950
Watt losses
30 W
Application
Photovoltaic array combiners and disconnects
Fuse type
PV-01XL-15
Fuse indicator
Top fuse status indicator
Fuse size
01XL
Fitted with:
Blade with top indicator
Suitable for
SD1XL-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
High-speed 80 A, 1500 Vdc rating delivers rapid fault clearance, reducing arc energy and potential module damage in PV strings. This translates to shorter downtime and lower repair costs, particularly in utility-scale installations where fault currents are high. Application: PV array combiners and disconnects benefit from Class gPV protection and a visible top indicator for quick status checks. The compact form factor (53 mm x 39 mm x 23 mm) with blade connections fits standard SD1XL-S-PV bases, enabling faster commissioning and fewer wiring errors. Business impact: easier installation, reduced field labor time, and improved reliability in rooftop and ground-mount projects. Certifications and compliance ensure regulatory clearance across international sites, streamlining procurement and site acceptance. Additional advantages include predictable heat generation (30 W watt losses) and a robust 30 kAIC interrupt rating that supports high fault currents without compromising safety.
Get a Quick Quote for a Eaton PV-80A-01XL-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-80A-01XL-15?
Enquire Now
FAQs
PV-80A-01XL-15 is designed for blade connections and is compatible with the SD1XL-S-PV XL Fuse base. For best results, ensure correct blade inlet orientation, secure mounting, and that conductor sizes match the fuse base specifications. This compatibility supports straightforward field replacement and efficient maintenance, reducing commissioning time on both rooftop and ground-mounted PV systems.
Pre-arc I2T of 950 A²s indicates the fuse can withstand a certain energy before arcing forms, while the 30 kAIC interrupt rating ensures fast, fault-current interruption without excessive arc energy. Together they translate to safer transitions during faults, minimized damage to PV modules and wiring, and improved safety margins in high-current PV strings found in utility-scale installations.
Yes, with an 80 A rating and 1500 Vdc capacity, PV-80A-01XL-15 suits string-level protection in rooftops and commercial installations. It is designed for photovoltaic array combiners and disconnects, offering a top-status indicator for quick checks. Always verify conductor sizing, enclosure clearance, and the local standards (UL IEC CE) to ensure compliance in your specific region.
PV-80A-01XL-15 carries UL Listed, IEC 60269 compliance, and CE RoHS marking, along with CSA certification. These certifications support global deployment, simplify procurement across markets, and help meet regulatory and safety requirements for solar protection devices used in diverse climates and installation types.
The top fuse status indicator provides immediate visual confirmation of fuse health, reducing routine inspection time and speeding fault diagnosis. This leads to lower maintenance labor costs, faster repair cycles, and improved system uptime—critical metrics for ROI in utility-scale and commercial PV projects where downtime directly impacts energy production and revenue.
