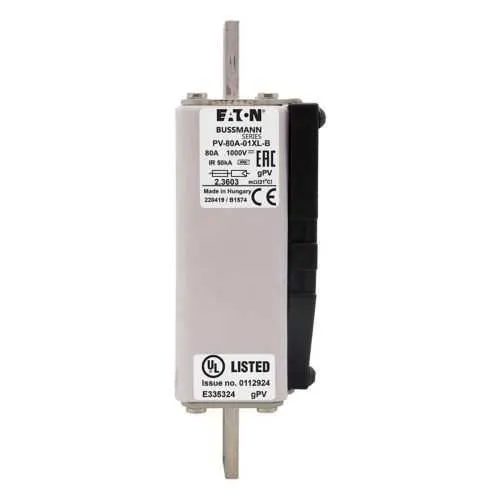

Eaton PV-80A-01XL-B Photovoltaic Fuse - UL Listed/IEC
Part Number: PV-80A-01XL-B
Quick Summary
Photovoltaic fuse PV-80A-01XL-B provides high-speed protection for solar PV arrays and DC power systems. Engineers often contend with misfiring or slow fuses in harsh PV environments that threaten uptime. It is CE marked, RoHS compliant, UL Listed and CSA certified, with IEC 60269 compliance, supporting global qualification and procurement. Designed for electrical protection and circuit control in PV installations, it reduces downtime and simplifies bolted-connection installation while meeting industry standards and safety expectations. Its gPV class construction supports reliable performance under continuous duty, and the center fuse status indicator speeds diagnostics. This combination translates to faster maintenance, safer operation, and lower total cost of ownership for solar investments.
Product Information
Extended Description
PV-80A-01XL-B Eaton: Eaton Bussmann series Fuse-link, high speed, 80 A, DC 1000 V, 01XL, gPV, UL, IEC, bolted connection
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-80A-01XL-B
Model Code
FUSE 80A 1000V 1 XL PV BOLT IN VER
UPC
051712373395
EAN
5996516000809
Product Length/Depth
217 mm
Product Height
65 mm
Product Width
85 mm
Product Weight
1200 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
80 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
660
Watt losses
27 W
Application
Photovoltaic array combiners and disconnects
Fuse type
PV-01XL-B
Fuse indicator
Centre fuse status indicator
Fuse size
01XL
Fitted with:
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
10201 XL PV fuses
Feature: High-speed PV fuse rated at 80 A and 1000 Vdc with gPV class. Business Impact: Fast overcurrent interruption protects PV strings from arc faults and thermal runaway, reducing downtime and safeguarding inverters and combiners. Application: Suitable for PV array combiners and disconnects in utility-scale and commercial solar installations. Feature: Fuse-link PV-01XL-B in a bolted connection with blade holes. Business Impact: Secure, vibration-resistant mounting and straightforward field wiring for durable solar DC protection. Application: Bolt-in installation in rugged outdoor environments. Feature: Centre fuse status indicator. Business Impact: Quick visual confirmation of fuse health, accelerating diagnostics and maintenance cycles. Application: On-site inspections and remote monitoring workflows. Feature: Comprehensive certifications (CE, RoHS, UL Listed, CSA, IEC 60269). Business Impact: Regulatory compliance reduces procurement risk and streamlines cross-border projects. Application: Global solar projects with strict compliance needs. Feature: 50 kAIC interrupt rating and 660 A2T pre-arc performance. Business Impact: High fault current handling and safer energy dissipation in large PV strings. Application: Utility-scale and multi-string configurations where fault currents may be significant. Feature: Physical dimensions and weight (217 mm length, 65 mm height, 85 mm width, 1200 g). Business Impact: Predictable footprint for panel design, enclosure fit, and thermal management. Application: Integrates into standard bolted PV fuse assemblies with blade connections. Feature: Fitted with blade with bolt holes for easy bolt-in integration. Business Impact: Reduces installation time and improves mechanical reliability in harsh environments. Application: Any PV protection scenario requiring robust bolt-in fusing.
Get a Quick Quote for a Eaton PV-80A-01XL-B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-80A-01XL-B?
Enquire Now
FAQs
PV-80A-01XL-B uses a blade with bolt holes for a secure bolted connection, conforming to the 01XL-B fuse sizing. This design supports bolt-in installation, enabling robust mechanical mounting and reliable electrical contact in outdoor PV installations where vibration and thermal cycling are common. Compatibility is reinforced by the bolted-in standard and the centre fuse status indicator for quick checks.
The fuse is rated for 80 A and 1000 Vdc, with a 50 kAIC interrupt rating. This ensures fast protection for PV strings under overcurrent conditions while tolerating high fault currents typical of large arrays. The 1000 Vdc rating aligns with common PV system voltages, providing a safe margin for planning and safety margins for DC protection devices.
The PV-80A-01XL-B carries CE marking, RoHS compliance, UL Listed, and CSA Certified, with IEC 60269 alignment. These certifications verify safety, environmental, and performance standards, facilitating global procurement and reducing regulatory risk for installers and integrators across markets that mandate recognized fuse standards.
The center fuse status indicator provides a clear visual signal of fuse health, enabling faster fault diagnosis and reducing downtime during inspections. In commissioning and field maintenance, technicians can quickly determine whether the fuse link has operated, avoiding unnecessary replacements and enabling targeted servicing for solar power systems.
Plan for bolted-in mounting with blade connections, using the 217 mm length, 85 mm width, and 65 mm height enclosure footprint. Ensure proper torque on bolts to maintain secure contact, account for outdoor enclosure design, and verify compatibility with PV array wiring practices. The device’s 1.2 kg weight aids handling and supports stable mechanical installation in harsh environments.
