Eaton PV-80ANH1 Photovoltaic Fuses - gPV UL Listed
Part Number: PV-80ANH1
Quick Summary
Eaton PV-80ANH1 Photovoltaic fuses protect DC circuits in solar arrays and PV systems. This solution helps engineers prevent arc damage and unwanted power loss by providing fast, reliable protection at up to 1000 V DC. The device carries CE Marked, RoHS Compliant, UL Listed, and CSA Certified credentials, aligning with diverse regulatory requirements and customer standards. Its IEC 60269 compatibility further supports international installations. By combining a visible status indicator with a compact NH1 form factor, this fuse simplifies field diagnostics and wiring in PV combiner boxes and disconnects. For procurement teams, the design translates to predictable performance, easier stocking, and reduced maintenance costs across solar installations and distributed generation projects.
Product Information
Extended Description

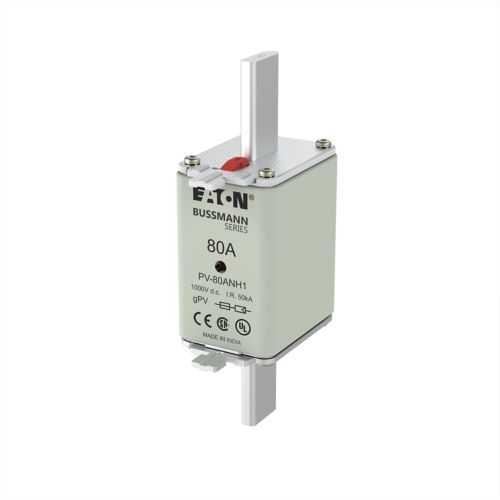

PV-80ANH1 Eaton: Eaton Bussmann series Fuse-link, high speed, 80 A, DC 1000 V, NH1, gPV, UL PV, UL, IEC, dual indicator
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-80ANH1
UPC
051712393096
EAN
5027590506397
Product Length/Depth
137 mm
Product Height
68 mm
Product Width
134 mm
Product Weight
448 g
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
80 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Pre arc (I2T)
640
Watt losses
15.5 W
Application
Photovoltaic array combiners and disconnects
Fuse type
PV-ANH1
Fuse indicator
Combination fuse status indicator
Fuse size
NH1
Fitted with:
Blade without bolt holes
Suitable for
SD1-D-PV NH Fuse base
