Eaton PV-80ANH1-B PV Fuse - gPV UL Listed IEC 60269
Part Number: PV-80ANH1-B
Quick Summary
PV fuse for solar PV strings, the Eaton PV-80ANH1-B protects DC circuits in photovoltaic installations. Engineers often struggle with rapid fault isolation and safe disconnection under high DC voltages in solar arrays. This device is certified to IEC 60269, UL Listed, and CSA Certified with CE RoHS compliance, ensuring safety across international markets. With a bolted NH1 fuse link and clear status indication, it simplifies installation, reduces maintenance, and lowers total cost of ownership. Designed for high-speed protection in utility-scale and commercial rooftops, it supports efficient system uptime while aligning with long-term sustainability goals.
Product Information
Extended Description

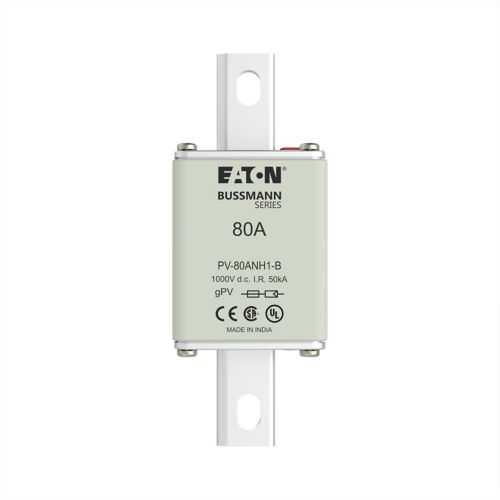

PV-80ANH1-B Eaton: Eaton Bussmann series Fuse-link, high speed, 80 A, DC 1000 V, NH1, gPV, UL PV, IEC, UL, dual indicator, bolted connection
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-80ANH1-B
UPC
051712531627
EAN
5027590402033
Product Length/Depth
135 mm
Product Height
40 mm
Product Width
40 mm
Product Weight
0.001 kg
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed CSA Certified
Amperage Rating
80 A
Voltage rating
1000 Vdc
Interrupt rating
50 kAIC
Class
Class gPV
Watt losses
15.5 W
Fuse type
PV-ANH1
Fuse indicator
Combination fuse status indicator
Fuse size
NH1
Fitted with:
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
UKCA Square-bodied PV fuse-links
UKCA Square-bodied PV fuse-links
Eaton Bussmann - Products for sustainable energy
Datasheet - PV-100ANH1-B
720133 NH photovoltaic fuse links
Feature: High-speed 80 A, 1000 Vdc operation with a 50 kAIC interrupt rating. Business Impact: Rapid fault clearing minimizes arc exposure and downtime, boosting system availability in photovoltaic strings. Application: Solar installations, both rooftop and utility-scale, where DC protection is critical. Feature: Combination fuse status indicator provides at-a-glance health, reducing inspection time and preventing unnecessary replacements. Business Impact: Lower maintenance costs and faster troubleshooting. Application: Enclosures and source-circuit cabinets in PV plants. Feature: NH1 fuse size with blade holes enables secure bolted connections. Business Impact: Reliable mounting and vibration resistance in harsh outdoor environments; faster, error-free installations. Application: Standard PV fuse holders and control panels. Feature: Full compliance with IEC 60269, UL Listed, CSA Certified, and CE RoHS. Business Impact: Simplified international procurement and risk mitigation through proven regulatory conformity. Application: Global deployments across regulated markets. Feature: Watt losses of 15.5 W at rating indicate predictable thermal behavior for consistent protection. Business Impact: Stable fuse performance and predictable thermal margins, reducing overdesign. Application: Continuous operation in solar PV strings; compatible with Bussmann PV fuse-link families. Feature: Fitted with blade with bolt holes for straightforward retrofits and mechanical integrity. Business Impact: Streamlined replacements and fewer field-installation errors. Application: New installations and upgrades in existing solar arrays.
Get a Quick Quote for a Eaton PV-80ANH1-B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV-80ANH1-B?
Enquire Now
FAQs
PV-80ANH1-B uses the standard NH1 fuse size with blade bolt holes, designed for bolted connections in typical Bussmann/ Eaton photovoltaic fuse holders. This ensures secure mounting, vibration resistance, and straightforward retrofits into existing enclosures or switchgear without special adapters.
PV-80ANH1-B is rated for 80 A continuous current at up to 1000 V DC with a 50 kAIC interrupt rating. It is a high-speed PV fuse (PV-ANH1) with a combination fuse status indicator, designed to quickly disconnect faulty string circuits and protect PV assets.
Yes. With a DC voltage rating of 1000 V, 80 A ampacity, and gPV class performance, PV-80ANH1-B is suitable for a wide range of solar applications, from commercial rooftops to utility-scale string protection, ensuring consistent performance across environments.
PV-80ANH1-B complies with IEC 60269, UL Listed, CSA Certified, and CE RoHS. These certifications support regulatory compliance in multiple regions and simplify cross-border purchasing for global solar projects.
The combination fuse status indicator provides immediate fault visibility, reducing inspection time. Bolted NH1 mounting and robust electrical performance minimize field service trips, lowering maintenance costs and improving uptime, which translates to a lower total cost of ownership over the system lifecycle.
