Eaton PV10 Push Button Enclosures for Industrial - UL 508A
Part Number: PV10
Quick Summary
Eaton PV10 Push Button Enclosures protect control panels in industrial machines, delivering rugged housing for push-button interfaces. In harsh factory environments, dust, oil, and moisture threaten uptime; these enclosures shield sensitive controls and reduce maintenance. They carry UL 508A and CSA C22.2 certifications and a NEMA 12 rating, aligning with industrial control standards. With surface mounting and external mounting feet, they simplify installation and support scalable panel designs. Designed for quick field servicing, they help minimize downtime and lower total cost of ownership.
Product Information
Extended Description

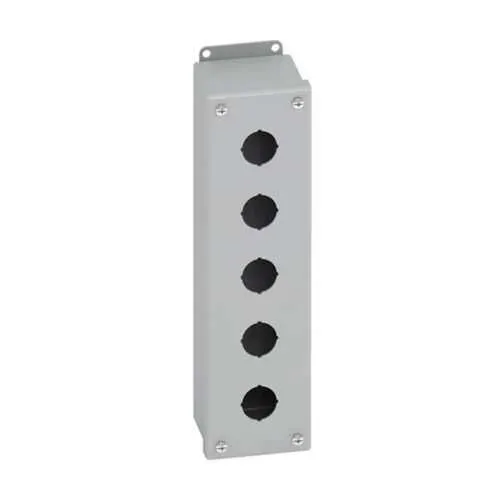

PV10 Eaton: Eaton B-Line series push button enclosures, 14" height, 4.75" length, 6.25" width, NEMA 12, Screw cover, PV enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PV10
UPC
782051702408
Product Length/Depth
4.75 in
Product Height
14 in
Product Width
6.25 in
Product Weight
8 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PV enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
NEMA Rating
12
Country of origin
US
Feature: Carbon steel enclosure with 14 gauge wall thickness and ANSI 61 gray painted finish. Business Impact: Delivers durable protection against impact and environmental exposure, extending service life in demanding environments. Application: Suitable for surface-mounted control panels in automation lines and electrical rooms, including dusty or oily environments. Feature: NEMA 12 rating with oil-resistant gasket and screw cover. Business Impact: Maintains dust and liquid ingress protection, reducing maintenance events and improving operator safety. Application: Ideal for machine control panels in manufacturing floors and process areas. Feature: Surface mounting with external feet. Business Impact: Simplifies retrofit and expansion in tight spaces; allows easy alignment with adjacent panels. Application: Common in factory automation cabinets and electrical rooms. Feature: Dimensions and weight — 14 in height, 6.25 in width, 4.75 in depth; ~8 lb. Business Impact: Compact footprint supports dense panel layouts while retaining robustness. Application: Suitable for small control sub-panels or push-button interfaces. Feature: Certifications and standards — UL 508A, CSA C22.2, NEMA 12. Business Impact: Eases regulatory approvals and reduces risk during design reviews. Application: Aligns with U.S./Canada industrial standards for control panels.
Get a Quick Quote for a Eaton PV10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV10?
Enquire Now
FAQs
PV10 supports surface mounting with external mounting feet, enabling quick, tool-efficient installation in tight electrical rooms. The surface mount design simplifies alignment with adjacent enclosures and reduces required wall clearance, speeding panel assembly and minimizing field wiring disruptions.
PV10 carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating. These approvals confirm electrical safety and environmental protection for dusty and oily industrial environments, streamlining customer compliance during panel approvals and audits.
Yes. PV10 uses an oil-resistant gasket and a NEMA 12-rated enclosure, providing effective protection against dust, dirt, and oil ingress. This reduces maintenance frequency and helps maintain reliable operation of push-button controls in challenging areas.
PV10 is designed as a compatible B-Line push-button enclosure with screw cover access, supporting surface-mounted installations and straightforward wiring. Its dimensions and mounting feet are chosen to align with common control-panel layouts and accessories for quick integration.
PV10 delivers longer service life through tough carbon steel construction and reliable sealing, reducing downtime and maintenance costs. Its regulatory certifications also shorten design reviews, accelerating project timelines and improving total cost of ownership in automation installations.
