Eaton PV1F JIC Panel Enclosure - NEMA 4X Certification
Part Number: PV1F
Quick Summary
PV1F is a fiberglass JIC panel enclosure designed for rugged industrial control and electrical distribution. In harsh environments, enclosure integrity and gasket reliability are critical to prevent costly downtime. UL 50, NEMA 4X, and CSA C22.2 certifications provide essential compliance and protection for controls in exposed locations. This PV1F unit offers surface mounting, a screw cover, and a seamless gasket to reduce installation time and maintenance costs. It supports lightweight handling and corrosion resistance through fiberglass construction, delivering real business value for panel builders and operators in manufacturing, water treatment, and process industries.
Product Information
Extended Description

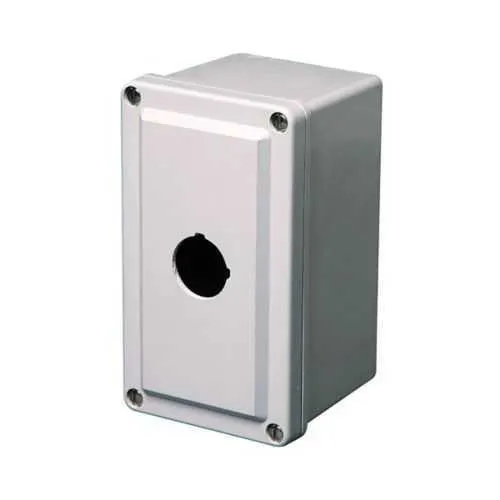

PV1F Eaton: Eaton B-Line series JIC panel enclosure, 6.63" height, 3.89" length, 3.81" width, NEMA 4X, Screw cover, PVF enclosure, Surface mount, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV1F
UPC
782051523478
Product Length/Depth
3.89 in
Product Height
6.63 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction delivers corrosion resistance and non-conductive protection. Business impact: This reduces maintenance costs and extends service life in outdoor, washdown, and corrosive environments. Application: Use PV1F for control panels exposed to the elements in water treatment, food and beverage, and chemical processing plants. Feature: NEMA 4X rating with seamless gasket. Business impact: Sealed enclosure minimizes ingress of dust, water, and contaminants, improving uptime and safety. Application: Suitable for demanding process environments and locations where moisture and chemicals are present. Feature: Compact dimensions and light weight. Business impact: 6.63 in height, 3.89 in depth, 3.81 in width with 2 lb weight enables quick installation and flexible mounting. Application: Field service and machine builders needing space-efficient enclosures. Feature: Surface mounting with screw cover. Business impact: Surface mounting simplifies siting and reduces hardware complexity. Application: Mount on machine frames or walls where internal mounting provisions are not required. Feature: Sealed gasket and PVF model. Business impact: Sealed gasket helps maintain ingress protection and long-term reliability. Application: Control circuits in environments with dust and temperature variation. Feature: Compliance and documentation. Business impact: UL 50, CSA C22.2, and local codes support procurement and regulatory adherence; engineering data from catalogs and datasheets accelerates design.
