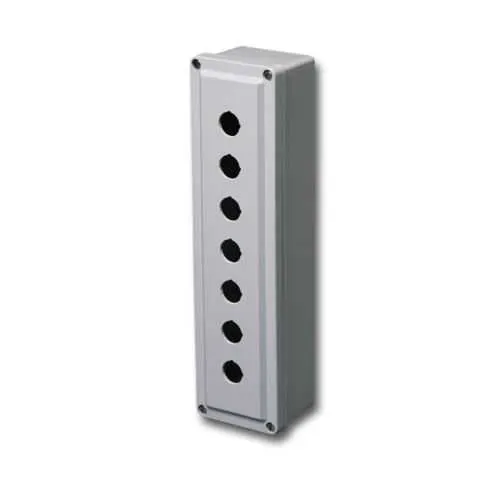

Eaton PV1MF Panel Enclosure - NEMA 4X UL 50 Listed
Part Number: PV1MF
Quick Summary
PV1MF Panel Enclosure is a durable JIC solution designed for compact control panels in industrial environments. End users often struggle with moisture ingress and corrosion in outdoor locations, making reliable protection essential. The fiberglass body with a seamless gasket and screw cover delivers weatherproof sealing while minimizing maintenance. UL 50, NEMA 4X, and CSA C22.2 certifications provide robust compliance for demanding facilities. Surface mounting keeps install time low and simplifies integration with existing Eaton B-Line systems, including the PVMF enclosure family. This combination of rugged protection, easy installation, and standardization supports safer operation, longer service life, and lower total cost of ownership across industrial electrical infrastructure projects.
Product Information
Extended Description
PV1MF Eaton: Eaton B-Line series JIC panel enclosure, 6.63" height, 3.89" length, 3.81" width, NEMA 4X, Screw cover, PVMF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV1MF
UPC
782051523508
Product Length/Depth
3.89 in
Product Height
6.63 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVMF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Feature: NEMA 4X fiberglass construction → Business Impact: delivers superior weather and chemical resistance, reducing corrosion-related downtime and maintenance costs. This rugged material choice supports reliable operation in outdoor enclosures and damp indoor environments. Feature: Seamless poured-in-place gasket and gasketed seam → Business Impact: enhances enclosure sealing against moisture and dust, lowering ingress risk and extending component life. Application: outdoor process areas, washdown zones, and harsh industrial environments. Feature: Screw cover enclosure with surface mounting and no mounting provisions → Business Impact: simplifies field installation, speeds up commissioning, and reduces mounting hardware costs. Application: wall-mounted control panels and equipment racks with minimal retrofit. Feature: Medium single door PVMF model → Business Impact: optimizes internal access while maintaining enclosure integrity during maintenance. Application: cabinet upgrades in control rooms or equipment housings. Feature: UL 50, NEMA 4X, CSA C22.2 certifications → Business Impact: ensures compliance with core electrical safety standards, easing procurement and audits. Application: electrical infrastructure projects across manufacturing, utilities, and process industries. Feature: Surface-mounted mounting method and US origin → Business Impact: streamlines installation in existing sites with minimal structural changes and ensures traceability with U.S. manufacturing origins. Application: retrofits and new-build facilities seeking standardized enclosures.
Get a Quick Quote for a Eaton PV1MF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV1MF?
Enquire Now
FAQs
PV1MF is designed for surface mounting with no mounting provisions included in the enclosure. This simplifies installation on existing walls or equipment frames and reduces retrofit complexity. The medium single door PVMF configuration provides convenient access for wiring and maintenance, helping technicians complete commissioning quickly and with minimal hardware.
PV1MF measures 6.63 inches in height, 3.89 inches in length, and 3.81 inches in width, with a nominal weight of 2 pounds. These compact dimensions fit tight spaces in electrical rooms and retrofit projects, while maintaining adequate internal space for typical JIC panel components.
PV1MF carries UL 50, NEMA 4X, and CSA C22.2 certifications. UL 50 confirms cabinet integrity for electrical equipment, NEMA 4X ensures protection against moisture and corrosion, and CSA compatibility broadens market access. Together they simplify procurement, compliance audits, and cross-border deployments for industrial facilities.
Yes. The NEMA 4X rating combined with fiberglass construction provides excellent weather and chemical resistance, making PV1MF suitable for outdoor enclosures and washdown zones. The seamless gasket and screw-cover design further protect internal components from moisture, dust, and contaminants while enabling reliable service life in challenging environments.
PV1MF reduces maintenance frequency through durable fiberglass and robust sealing, while its straightforward surface-mount installation speeds up commissioning. Standardization with Eaton B-Line systems supports commonized spares and quicker upgrades, contributing to lower total cost of ownership and faster project ROI in both retrofits and new-build facilities.
