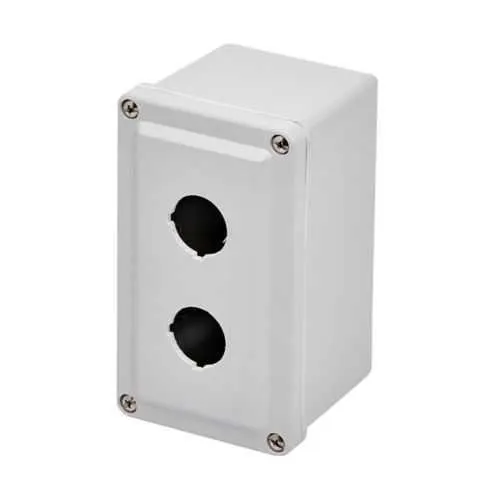

Eaton PV2F JIC Panel Enclosure - Fiberglass NEMA 4X
Part Number: PV2F
Quick Summary
PV2F JIC Panel Enclosure by Eaton protects electrical gear in harsh industrial environments. Engineers often struggle with weatherproofing, corrosion, and mounting challenges in compact control spaces. It carries UL 50, NEMA 4X, and CSA C22.2 certifications, ensuring reliable performance against moisture, dirt, and chemical exposure. The fiberglass construction and seamless poured-in-place gasket deliver long-term durability, while surface mounting keeps installation straightforward, minimizing field modifications and downtime. As part of the B-Line PVF family, it supports scalable automation layouts and modular upgrade paths, helping you reduce maintenance costs and improve panel reliability in demanding applications. This combination enables faster commissioning, simpler spare-part management, and predictable service life in outdoor, washdown, and climate-controlled facilities.
Product Information
Extended Description
PV2F Eaton: Eaton B-Line series JIC panel enclosure, 6.63" height, 3.89" length, 3.81" width, NEMA 4X, Screw cover, PVF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV2F
UPC
782051523485
Product Length/Depth
3.89 in
Product Height
6.63 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
The PV2F enclosure uses a fiberglass body with a screw cover and a seamless poured-in-place gasket, delivering superior corrosion resistance and weatherproof performance. This translates to longer service life in harsh environments and reduced maintenance intervals, especially in outdoor or washdown areas where moisture and chemicals are present. The NEMA 4X and UL 50 certifications provide regulatory confidence, allowing you to deploy the enclosure in demanding industrial settings without compromising safety or compliance. Its surface-mount design simplifies installation in tight control panels—no interior mounting provisions are required, which reduces hardware costs and installation time. With a compact footprint (6.63 in H, 3.89 in D, 3.81 in W) and a lightweight 2 lb weight, it streamlines handling and integration into small-footprint automation projects. The medium single-door PVF enclosure format supports straightforward access for maintenance while keeping electronics protected behind a screw cover and gasketed seam.
Get a Quick Quote for a Eaton PV2F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV2F?
Enquire Now
FAQs
Yes. PV2F is designed for surface mounting, simplifying installation in compact control panels. Interior mounting provisions are not included, so you’ll typically attach the enclosure to a mounting surface or frame and route cables externally. This approach reduces assembly steps, saves space, and supports quick field deployment in limited-access environments.
PV2F carries UL 50, NEMA 4X, and CSA C22.2 certifications, confirming suitability for weatherproof and washdown applications. These ratings certify protection against moisture, dust, and chemical exposure, enabling compliant operation in industrial automation, outdoor installations, and demanding manufacturing environments.
The enclosure footprint is 6.63 inches in height, 3.89 inches in depth, and 3.81 inches in width, with a weight of about 2 pounds. These compact, lightweight dimensions support convenient handling, easier transport to field sites, and seamless integration into small control panels or instrument cabinets.
Yes. The NEMA 4X rating, UL 50 certification, and fiberglass construction make PV2F well-suited for outdoor or washdown areas. The seamless gasket and screw-cover design enhance ingress protection, helping maintain internal electronics reliability in moist or chemically aggressive environments.
Fiberglass PV2F enclosures offer corrosion resistance, lower weight, and reduced maintenance needs compared with many metal alternatives. The combination of weatherproof sealing, lightweight handling, and robust certifications translates to lower total cost of ownership through fewer corrosion-related failures and easier field servicing over the life of the panel.
