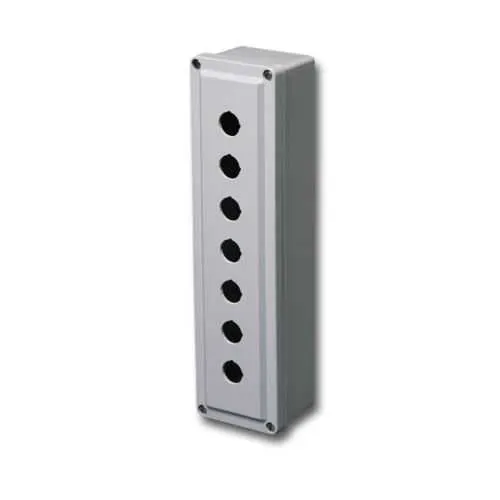

Eaton PV2MF JIC Panel Enclosure, Fiberglass - NEMA 4X
Part Number: PV2MF
Quick Summary
PV2MF JIC panel enclosure is a rugged fiberglass housing for industrial electrical distribution in harsh environments. Engineers often battle corrosion, moisture ingress, and mounting constraints when deploying field panels in plants and outdoor sites. Certified to UL 50, NEMA 4X, and CSA C22.2, it withstands washdowns and dusty, vented spaces with predictable performance. Surface mounting, a screw cover, and a seamless gasket enable fast, maintenance-friendly installations and long-term reliability in demanding facilities. Coupled with Eaton's B-Line series compatibility, it supports compliant, cost-efficient ownership by reducing downtime and rework in critical, time-sensitive projects.
Product Information
Extended Description
PV2MF Eaton: Eaton B-Line series JIC panel enclosure, 6.63" height, 3.90" length, 3.81" width, NEMA 4X, Screw cover, PVMF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV2MF
UPC
782051523515
Product Length/Depth
3.9 in
Product Height
6.63 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVMF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Feature → Fiberglass construction with NEMA 4X protection delivers robust corrosion resistance and washdown durability, reducing maintenance cost and downtime in coastal, chemical, and food-processing environments. Business Impact → Longer service life and lower replacement cycles translate to lower total cost of ownership. Application → Ideal for outdoor cabinets, washdown zones, and harsh industrial spaces where reliability is mission-critical. Feature → Compact, lightweight dimensions (6.63 in height, 3.9 in depth, 3.81 in width) and 2 lb weight enable easier handling and faster installation. Business Impact → Streamlined logistics and reduced on-site labor. Application → Small control panels and tight enclosures in crowded electrical rooms or equipment caravans. Feature → Surface mounting with a screw cover and seamless poured-in-place gasket provides a sealed, maintenance-friendly enclosure. Business Impact → Faster retrofits and fewer ingress-related failures. Application → Retrofit projects and new builds where quick, durable sealing matters. Feature → UL 50, NEMA 4X, and CSA C22.2 certifications align with industry codes and safety programs. Business Impact → Procurement risk reduction and easier compliance documentation. Application → Regulated facilities in water/wastewater, manufacturing, and processing sectors. Feature → Medium single-door PVMF enclosure design within the B-Line series offers compatibility with Eaton components and accessories. Business Impact → Simplified parts sourcing and system integration. Application → Projects leveraging Eaton’s enclosure ecosystem for scalable control architectures.
Get a Quick Quote for a Eaton PV2MF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV2MF?
Enquire Now
FAQs
PV2MF is designed for surface mounting with a screw cover and seamless gasket. It does not include internal mounting provisions, which simplifies retrofits and new installations where external mounting structures or existing frames are used. The enclosure’s compact footprint aids in tight panel spaces while maintaining a sealed, weather-resistant interior for protected electrical components.
PV2MF provides NEMA 4X protection and UL 50 compliance, making it resilient to washdowns, dust, and moisture. Its fiberglass construction offers corrosion resistance in chemical and coastal environments. CSA C22.2 certification further supports compliance in regulated facilities. Together, these features minimize maintenance needs and extend asset life in challenging industrial settings.
Yes. PV2MF is a PVMF enclosure within the Eaton B-Line JIC family, designed to integrate with other B-Line components. Its surface-mount approach and screw-cover design align with common B-Line mounting practices, enabling modular upgrades and scalable control architectures without extensive rework or specialty hardware.
PV2MF carries UL 50 and NEMA 4X protections, along with CSA C22.2 compatibility. These certifications confirm the enclosure meets industry safety and environmental standards, supporting compliance with building and electrical codes. This reduces procurement risk and streamlines regulatory documentation for regulated industries such as water treatment, food & beverage, and manufacturing.
The enclosure’s corrosion resistance and sealed gasket reduce maintenance frequency and ingress-related failures, lowering downtime costs. Its light weight and compact size simplify shipping and installation, cutting labor and freight expenses. Long-term reliability translates to fewer replacements and predictable lifecycle budgeting for critical control panels.
