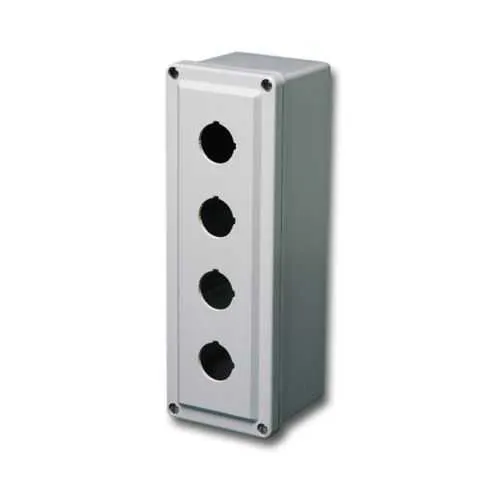

Eaton PV3F JIC Panel Enclosure - NEMA 4X rating
Part Number: PV3F
Quick Summary
PV3F JIC panel enclosure from Eaton protects electrical assemblies in harsh environments, providing durable fiberglass housing for surface-mounted panels. Engineers often grapple with moisture, dust ingress, and costly downtime in demanding locations. UL 50, NEMA 4X, and CSA C22.2 certifications back this enclosure, ensuring rugged, code-compliant protection. The PV3F design offers a reliable junction box solution with seamless gasket and screw cover for fast, secure sealing, reducing maintenance intervals and service calls. By pairing fiberglass construction with surface mounting and a medium single-door configuration, it supports fast installations in industrial plants while aligning with safety and environmental requirements. This enclosure complements B-Line series offerings for modular, scalable infrastructure.
Product Information
Extended Description
PV3F Eaton: Eaton B-Line series JIC panel enclosure, 8.88" height, 3.89" length, 3.81" width, NEMA 4X, Screw cover, PVF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV3F
UPC
782051523492
Product Length/Depth
3.89 in
Product Height
8.88 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Sealed gasket and screw cover provide dust and moisture protection, reducing unplanned downtime and maintenance costs while enabling quicker service access for electricians on site. The fiberglass construction offers superior corrosion resistance and UV stability, extending enclosure life in chemical processing, outdoor, and washdown environments, which lowers total cost of ownership over metal alternatives. NEMA 4X rating, UL 50, and CSA C22.2 certifications substantiate compliance and safety, helping avoid regulatory delays in regulated facilities and ensuring reliable operation in wet or dusty settings. Surface mounting simplifies installation, eliminating complex brackets and reducing installation time, especially in tight plant spaces where wall-mounted solutions are preferred. The medium single-door PVF enclosure delivers easy wiring access and straightforward field servicing, supporting scalable control panel extensions in the Eaton B-Line family. Overall, it enables faster deployment, predictable performance, and consistent protection across industrial infrastructure.
Get a Quick Quote for a Eaton PV3F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV3F?
Enquire Now
FAQs
PV3F is a surface-mounted JIC panel enclosure designed for straightforward wall installation. It features a screw cover and seamless gasket for a reliable seal, and its mounting method is specified as surface with no internal mounting provisions. This simplifies retrofits and new-build panels in tight industrial spaces while maintaining access for wiring and service.
PV3F carries UL 50, NEMA 4X, and CSA C22.2 certifications, confirming enclosure integrity against dust, water ingress, and corrosion. These standards support compliance in regulated industries, enabling safer installations in washdown and outdoor environments and reducing risk during audits and inspections.
Ideal for control panels and electrical housings in factory automation, PV3F supports surface-mounted installations on walls or equipment standoffs. Its weatherproof, corrosion-resistant fiberglass construction makes it suitable for outdoor enclosures, washdown areas, and harsh industrial spaces requiring reliable protection for sensitive electronics.
Yes. PV3F’s NEMA 4X rating provides weatherproof and corrosion-resistant protection suitable for outdoor and washdown environments. The seamless gasket and screw-cover design offer a robust seal against moisture and dust, helping maintain internal component integrity over time.
PV3F reduces maintenance intervals and service calls by delivering dependable protective sealing and high corrosion resistance. Its compatibility with the Eaton B-Line family supports scalable, modular infrastructure, accelerating installation and enabling longer service lifespans for critical control panels, which translates to lower total cost of ownership.
