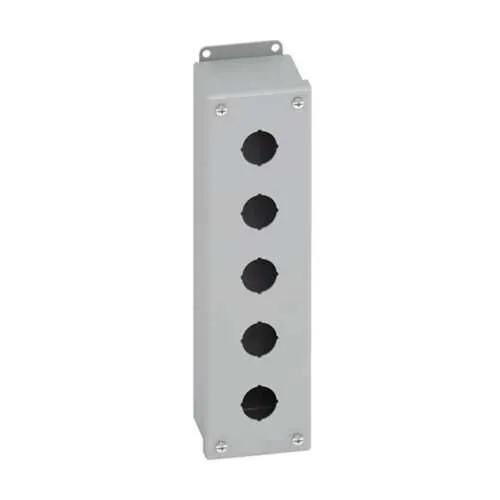

Eaton PV3M-4XS Push Button Enclosures - NEMA 4X
Part Number: PV3M-4XS
Quick Summary
Eaton B-Line push button enclosures protect control circuits in harsh industrial environments. These units address downtime and maintenance challenges by shielding switches from oil, dust, and moisture. The PV3M-4XS features a NEMA 4X rating with 304 stainless steel and a robust 14-gauge wall for long-term rugged use. Originating in the US and designed for surface mounting with external feet, it streamlines panel integration. In practice, it supports cost-effective maintenance, reduced downtime, and reliable protection for control components. Its removable screw cover, recessed pull ring, and stainless-steel hardware simplify field service. The unit also accommodates hard-wired or plug-in configurations for flexible automation architectures.
Product Information
Extended Description
PV3M-4XS Eaton: Eaton B-Line series push button enclosures, 8" height, 2.75" length, 3.25" width, NEMA 4X, Screw cover, PVM4XS enclosure, Surface mounted, Medium single door, External mounting feet, 304 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PV3M-4XS
UPC
782051138153
Product Length/Depth
2.75 in
Product Height
8 in
Product Width
3.25 in
Product Weight
3.4 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
304 stainless steel
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
PVM4XS enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Special features
Removable cover, recessed pull ring, s.s. screws
NEMA Rating
4X
Country of origin
US
Feature: NEMA 4X rating paired with 304 stainless steel delivers corrosion resistance in challenging environments. Business impact: Fewer enclosure replacements and lower maintenance costs over the life of the system. Application: Ideal for washdown zones and outdoor control panels in food & beverage, water treatment, and chemical processing. Feature: Removable cover, recessed pull ring, and stainless-steel screws enable quick access and serviceability. Business impact: Faster maintenance cycles and reduced labor costs during routine inspections or fault-finding. Application: Suitable for frequent access points in control panels and integration with modular automation components. Feature: External mounting feet and surface-mount design simplify installation and retrofits. Business impact: Reduced installation time and easier integration into existing panels or new builds. Application: Effective for surface-mounted enclosures in compact control rooms, machine centers, and field installations. Feature: Oil-resistant gasket and gasket-detailed seal preserve enclosure integrity. Business impact: Maintains ingress protection, minimizes ingress-related downtime, and extends life in oil or chemical environments. Application: Ideal for equipment bays and process lines where exposure to lubricants is common. Feature: 8 in height, 3.25 in width, 2.75 in depth with 14-gauge wall thickness offers a compact yet rugged footprint. Business impact: Optimized space utilization without compromising strength or protection. Application: Perfect for retrofit projects or new builds where panel real estate is at a premium.
Get a Quick Quote for a Eaton PV3M-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV3M-4XS?
Enquire Now
FAQs
The PV3M-4XS supports surface mounting with external mounting feet, enabling straightforward installation on control panels or machine frames. The screw cover design also simplifies panel access during commissioning or maintenance, reducing installation time and minimizing service disruption.
It features a NEMA 4X rating and 304 stainless steel construction, delivering excellent corrosion resistance in washdown, outdoor, or chemically challenging environments. An oil-resistant gasket further protects against moisture ingress, extending service life and reducing replacement frequency.
Yes. The PV3M-4XS is designed as part of the B-Line series ecosystem, supporting compatibility with standard PVM enclosures and related mounting hardware. Its surface-mount design and external feet simplify integration with nearby panels, switchgear, or field devices.
Schedule regular inspections of the gasket seal, screws, and cover. The removable cover and recessed pull ring facilitate quick access for inspections or component swaps. Maintaining the 4X seal and ensuring fasteners remain tight will optimize ingress protection and prolong enclosure life.
The PV3M-4XS is produced in the United States, which can offer advantages in lead times and logistics for US-based projects. Local manufacturing often supports faster availability for urgent panel upgrades and ensures alignment with domestic sourcing expectations.
