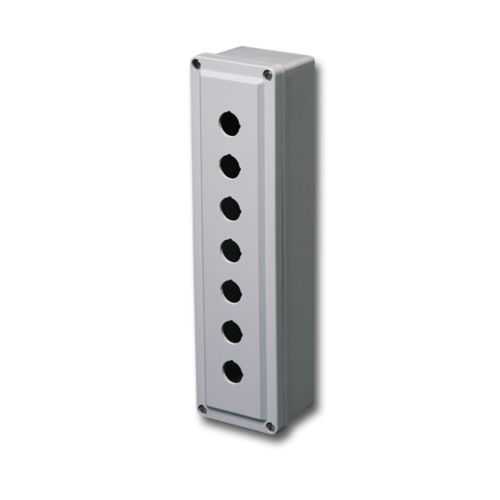

Eaton PV3MF JIC Panel Enclosure - UL 50/NEMA 4X
Part Number: PV3MF
Quick Summary
The Eaton PV3MF JIC panel enclosure protects control gear in surface-mounted electrical installations. In harsh environments, moisture ingress and corrosion threaten uptime and safety, complicating maintenance and compliance. This enclosure carries UL 50, NEMA 4X, and CSA C22.2 certifications, signaling robust enclosure integrity across demanding applications and regulatory regimes. Built from fiberglass with an unfinished gray finish, it offers corrosion resistance and gasket integrity with a seamless poured-in-place sealing system. The combination of a medium single-door design and screw cover provides easy access while maintaining a tight seal. For engineers and procurement teams, the PV3MF supports reliable, long-term performance in industrial enclosures and electrical infrastructure projects.
Product Information
Extended Description
PV3MF Eaton: Eaton B-Line series JIC panel enclosure, 6.63" height, 3.91" length, 3.81" width, NEMA 4X, Screw cover, PVMF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV3MF
UPC
782051523522
Product Length/Depth
3.91 in
Product Height
6.63 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVMF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Fiberglass construction provides inherent corrosion resistance and a lighter yet durable housing, translating to longer service life and lower maintenance costs in damp or chemical-prone environments. This translates to improved uptime for critical control panels in manufacturing lines and outdoor installations where weatherproof performance matters. The UL 50 and NEMA 4X certifications deliver regulatory assurance and risk reduction, ensuring enclosure integrity under washdown and outdoor conditions, a key selling point for facilities with strict safety and compliance requirements. A seamless poured-in-place gasket and a screw cover seal the enclosure reliably, preventing dust and moisture ingress and making routine inspections straightforward in busy plant environments. Surface mounting, with no internal mounting provisions, offers installation flexibility and faster deployment on existing frames or structures, reducing trenching or retrofits. Lightweight at about 2 lb and with precise dimensions (6.63 in high, 3.91 in deep, 3.81 in wide), it enables quick replacements and modular scoping for small-control panels. This combination supports cost-effective, scalable solutions for electrical infrastructure projects in industrial settings, enabling standardized enclosures that meet demanding specifications while remaining easy to source and service.
Get a Quick Quote for a Eaton PV3MF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV3MF?
Enquire Now
FAQs
PV3MF is designed for surface mounting and does not include internal mounting provisions. For secure installation, use external brackets or mounting frames compatible with fiberglass enclosures. Ensure the mounting surface is flat and capable of supporting the enclosure’s load, and seal around the installation per NEMA/UL guidance to maintain protection ratings.
PV3MF measures 6.63 inches in height, 3.91 inches in length (depth), and 3.81 inches in width, with an approximate weight of 2 pounds. This compact size supports easy handling and quick swaps in restricted spaces within control panels or electrical infrastructure installations.
PV3MF carries UL 50, NEMA 4X, and CSA C22.2 certifications. UL 50 confirms enclosure integrity for electrical equipment, NEMA 4X ensures protection against wind-driven rain, corrosion, and splashing water, and CSA C22.2 aligns with Canadian electrical standards. Together these certifications support regulatory compliance, safety, and long-term reliability in industrial settings.
PV3MF is constructed from fiberglass with an unfinished gray finish. Fiberglass provides excellent corrosion resistance and strength-to-weight benefits, making it well-suited for challenging environments. The unfinished surface accepts field painting or coatings if required for specific plants, while the gasket-sealed design maintains environmental protection without additional treatments.
PV3MF is ideal for surface-mounted industrial control panels and electrical infrastructure in environments prone to moisture and corrosion. It supports compact control enclosures for small circuits, washdown areas, and outdoor installations requiring robust protection (NEMA 4X) and regulatory compliance (UL 50, CSA C22.2). It helps standardize small enclosure needs across manufacturing lines and facilities.
