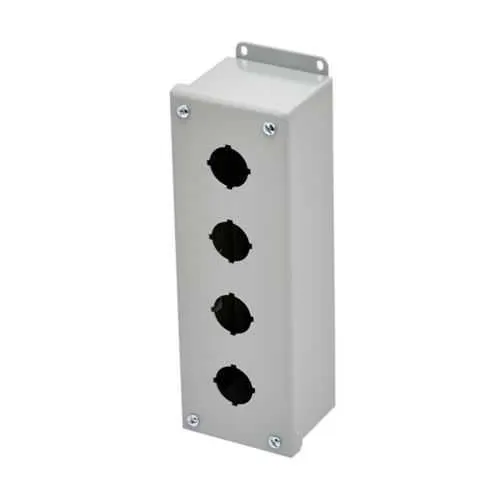

Eaton PV4 Push Button Enclosures - NEMA 12 Certification
Part Number: PV4
Quick Summary
PV4 Push Button Enclosures from Eaton protect control stations and operator interfaces in demanding industrial environments. When panels face dust, oil exposure, and washdowns, lack of proper enclosure protection can lead to unplanned downtime and costly repairs. The PV4 line carries UL 508A, CSA C22.2, and NEMA 12 certifications, providing safety and reliability for harsh facilities. With a painted ANSI 61 gray finish on carbon steel, these enclosures couple rugged protection with straightforward installation, supporting surface mounting and external feet. This combination delivers substantial business value by reducing maintenance cycles and accelerating panel assembly in industrial automation projects.
Product Information
Extended Description
PV4 Eaton: Eaton B-Line series push button enclosures, 7.25" height, 4.75" length, 6.25" width, NEMA 12, Screw cover, PV enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PV4
UPC
782051702460
Product Length/Depth
4.75 in
Product Height
7.25 in
Product Width
6.25 in
Product Weight
4 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PV enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
NEMA Rating
12
Country of origin
US
The PV4 enclosure uses a 14-gauge carbon steel shell to deliver robust mechanical protection that resists impact and wear, reducing panel damage in high-traffic environments. This translates to lower repair costs over the system lifetime and improved operator safety in demanding production lines. Surface mounting with external mounting feet simplifies field installation, cutting downtime during panel builds and upgrades, while the screw cover provides tamper-resistance and clean aesthetics for controlled environments. The 7.25 in height, 6.25 in width, and 4.75 in depth create a compact yet capacious housing for push-button assemblies, enabling flexible layout and easier cable routing in tight switchgear rooms. The oil-resistant gasket and ANSI 61 gray paint further enhance weather sealing and corrosion resistance. The enclosure aligns with common control-panel standards, supporting UL 508A and CSA C22.2 compliance for regulated facilities. Long-term maintenance planning benefits from standard components and readily available replacement parts.
Get a Quick Quote for a Eaton PV4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV4?
Enquire Now
FAQs
The PV4 is designed for surface mounting with external mounting feet, enabling quick installation in existing panels or onwall-mounted control stations without additional vibration isolation parts. This layout simplifies field wiring, reduces installation time, and minimizes the need for bespoke mounting hardware in standard enclosures.
PV4 carries UL 508A, CSA C22.2, and a NEMA 12 rating, indicating compliance with electrical safety standards and suitability for dusty, oily, and non-wet environments. These certifications help satisfy regulatory requirements for commercial and industrial facilities and support safer, more reliable control panels.
Yes. With a 14 gauge carbon steel shell, oil-resistant gasket, and ANSI 61 gray painted finish, PV4 provides rugged protection for push-button assemblies in harsh environments. Its NEMA 12 rating supports dust and light oil exposure, making it appropriate for many manufacturing, process, and packaging lines.
PV4’s surface mounting and external feet enable fast mounting and easy leveling, reducing assembly time. The screw cover adds tamper-resistance and a clean look, while standard materials and finishes simplify sourcing of replacement parts, lowering maintenance costs and minimizing downtime during panel servicing.
PV4 dimensions are 7.25 in height, 6.25 in width, and 4.75 in depth, with a 14 gauge carbon steel shell and oil-resistant gasket. The enclosure is painted ANSI 61 gray, designed for surface mounting with external feet, making it straightforward to integrate alongside other control hardware in medium to large panels.
