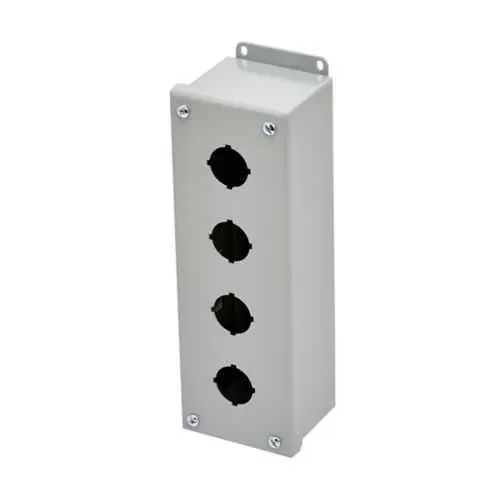

Eaton PV4-4XSS6 Push Button Enclosures - NEMA 4X
Part Number: PV4-4XSS6
Quick Summary
Push Button Enclosures from Eaton PV4-4XSS6 protect control stations in harsh environments. Engineers often struggle with corrosion, moisture ingress, and maintenance when enclosures are under-sized or poorly sealed. With a NEMA 4X rating and 316 stainless steel construction, these enclosures deliver outstanding durability for washdown areas and outdoor installations. Surface mounting with external feet simplifies installation in tight panels and minimizes field adaptations, while a removable cover and recessed pull ring speed maintenance. For OEMs and integrators, the PV4-4XSS6 reduces downtime, extends service life, and supports safer, compliant automation deployments. Its 316 stainless steel, oil-resistant gasket, and 14 gauge wall meet demanding industrial specs, protecting costly controls and slowing corrosion.
Product Information
Extended Description
PV4-4XSS6 Eaton: Eaton B-Line series push button enclosures, 10.25" height, 2.75" length, 3.25" width, NEMA 4X, Screw cover, PV4XSS6 enclosure, Surface mounted, Medium single door, External mounting feet, 316 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PV4-4XSS6
UPC
782051138009
Product Length/Depth
2.75 in
Product Height
10.25 in
Product Width
3.25 in
Product Weight
4 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
316 stainless steel
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
PV4XSS6 enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Special features
Removable cover, recessed pull ring, s.s. screws
NEMA Rating
4X
Country of origin
US
316 stainless steel construction and a 14 gauge wall provide excellent corrosion resistance and rigidity, translating into longer service life in chemical plants and washdown applications. This reduces replacement costs and downtime while maintaining panel integrity. The NEMA 4X rating delivers reliable ingress protection against dust, water, and oils, enabling operation in harsh environments without extra enclosures. A removable screw cover, recessed pull ring, and stainless screws simplify field maintenance and safe access, cutting maintenance time and improving operator safety. Surface mounting with external feet offers quick, tool-friendly installation and straightforward alignment in existing panels, minimizing retrofit complexity. Compact 10.25 inch height with 3.25 inch width and 2.75 inch depth fits tight spaces while still providing robust protection for push button controls. Weight of 4 lb keeps installation manageable and reduces structural loading. All of these features work together to support efficient installation, reliable operation, and lower lifecycle costs in industrial automation and process equipment environments.
Get a Quick Quote for a Eaton PV4-4XSS6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV4-4XSS6?
Enquire Now
FAQs
To install the PV4-4XSS6, begin with panel preparation and verify mounting surfaces. Use the external mounting feet for surface mounting, align the enclosure flush against the panel, and secure with stainless screws. Ensure the gasket sits evenly to maintain the NEMA 4X seal, then attach the screw cover. Finally, verify door clearance and ensure the recessed pull ring is accessible for maintenance.
The PV4-4XSS6 enclosure has a height of 10.25 inches, a width of 3.25 inches, and a depth of 2.75 inches. It weighs 4 pounds and is constructed from 316 stainless steel with a 14 gauge wall. The finish is #4 brushed, and the model features a medium single door with a screw cover and surface mounting capability.
Yes. The PV4-4XSS6 is built from 316 stainless steel with a 14 gauge wall and carries a NEMA 4X rating, which provides robust protection against water, dust, and oils in washdown and corrosive environments. The oil-resistant gasket further enhances environmental sealing, reducing maintenance and extending service life in demanding industrial settings.
PV4-4XSS6 supports surface mounting using external mounting feet, enabling quick installation on walls or equipment housings. The enclosure is designed for a surface mounting method with a screw cover, allowing easy access for maintenance. The external feet simplify alignment and reduce installation time in retrofit projects or new builds.
Official documents are available from Eaton’s site. Access the Pushbutton-enclosure-operator.pdf for installation and usage guidance, and the Eaton Specification Sheet PV4-4XSS6.pdf for detailed technical data and compliance notes. These downloads support design validation, parts selection, and maintenance planning for robust control enclosures.
