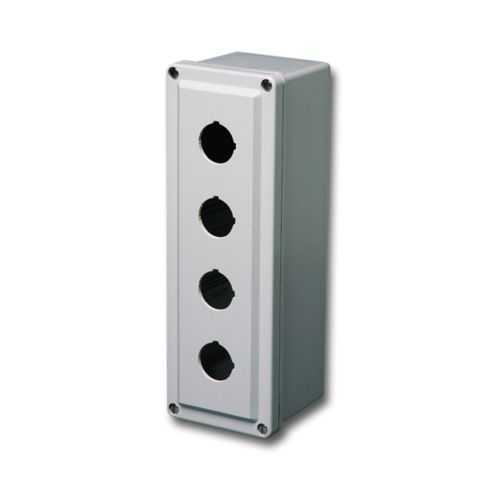

Eaton PV4F JIC Panel Enclosure - NEMA 4X UL 50
Part Number: PV4F
Quick Summary
Eaton PV4F JIC panel enclosure provides rugged protection for electrical controls in harsh industrial environments. In field installations, moisture ingress, dust, and corrosion can disrupt operation and escalate maintenance costs. UL 50 and NEMA 4X ratings confirm enclosure integrity, while CSA C22.2 compliance supports North American installations. As a surface-mounted PVF enclosure with a screw cover, it offers easy access and fast installation for control panels. Lightweight fiberglass construction helps reduce handling risk and supports retrofit projects without sacrificing protection, durability, or regulatory alignment. This combination delivers reliable protection for electrical controls while improving lifecycle costs for industrial facilities.
Product Information
Extended Description
PV4F Eaton: Eaton B-Line series JIC panel enclosure, 11.13" height, 3.89" length, 3.12" width, NEMA 4X, Screw cover, PVF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV4F
UPC
782051537925
Product Length/Depth
3.89 in
Product Height
11.13 in
Product Width
3.12 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers corrosion resistance and weatherability. In practice this reduces downtime and component replacement in outdoor or damp environments. NEMA 4X and UL 50 compliance provide robust protection against water, dust, and corrosive agents. This helps facilities meet regulatory requirements and avoid costly retrofits. Surface mounting and a screw cover enable quick access while maintaining a tight seal. The seamless poured in-place gasket enhances ingress protection against moisture and particulates. Compact, lightweight form factor (2 lb) simplifies retrofits and minimizes installation time. Field crews can maneuver the unit with less risk and fewer mounting provisions. PVF enclosure with gray unfinished fiberglass offers field customization without compromising structural integrity. Length/height/depth fit typical JIC panel footprints for versatile placements. Industry context: As part of Eaton's B-Line series, PV4F integrates with standard mounting dimensions and other B-Line components. This compatibility reduces total install time and ensures consistent performance across panels.
Get a Quick Quote for a Eaton PV4F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV4F?
Enquire Now
FAQs
PV4F uses surface mounting with a screw cover and no mounting provisions inside, enabling flexible placement on walls or equipment pads. The unit relies on a seamless poured-in-place gasket for a tight seal, enhancing ingress protection. Plan for compatible footprint and existing mounting patterns in retrofit projects to minimize fabrication steps and reduce installation time.
Key specs include a 11.13 in height, 3.89 in depth, and 3.12 in width, with a weight of 2 lb. It is a fiberglass PVF enclosure, gray unfinished, surface-mounted, with a screw cover and a medium single-door configuration. Certifications include UL 50, NEMA 4X, and CSA C22.2, aligning with North American safety standards.
Yes. The PV4F JIC panel enclosure carries a NEMA 4X rating and UL 50 compliance, providing protection against wind-driven rain, dust, and corrosion. Its fiberglass construction further enhances outdoor durability while keeping weight low for easier handling during installation and maintenance.
PV4F aligns with UL 50, NEMA 4X, and CSA C22.2 standards. These certifications verify that the enclosure provides robust electrical and mechanical protection in demanding environments, enabling safer operation and easier regulatory access for North American facilities.
Fiberglass and seamless gasket sealing reduce ingress-related wear and maintenance requirements, contributing to longer service intervals. The lightweight, easy-access design speeds routine inspections and panel servicing, lowering labor costs and downtime across retrofit or new-install projects.
