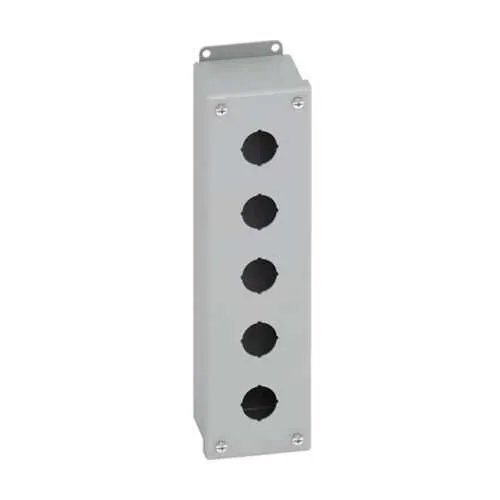

Eaton PV5 Push Button Enclosure - UL 508A/NEMA 12
Part Number: PV5
Quick Summary
The Eaton PV5 Push Button Enclosure provides durable protection for control pushbutton assemblies in industrial panels. Facilities struggle with dust, moisture, and equipment tampering that threaten uptime and safety. UL 508A, CSA C22.2, and NEMA 12 ratings ensure reliable compliance in harsh environments. Its surface-mount design in carbon steel with an oil-resistant gasket delivers long-term value by reducing maintenance and replacement costs. This enclosure pairs with Eaton's B-Line accessories for faster installations, easier retrofits, and scalable control stations across manufacturing and process facilities. With a painted ANSI 61 gray finish and 12.5 in height, PV5 fits medium-sized control rooms and panel combinations.
Product Information
Extended Description
PV5 Eaton: Eaton B-Line series push button enclosures, 12.50" height, 2.75" length, 3.25" width, NEMA 12, Screw cover, PV enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PV5
UPC
782051702484
Product Length/Depth
2.75 in
Product Height
12.5 in
Product Width
3.25 in
Product Weight
4.6 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PV enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
NEMA Rating
12
Country of origin
US
Feature: The PV5 is a medium single-door enclosure built for surface mounting with external mounting feet. It measures 12.5 inches tall, 3.25 inches wide, and 2.75 inches deep, providing a compact footprint that supports efficient panel layouts. This configuration supports NEMA 12 protection and reliable field performance in industrial spaces. Feature: Constructed from carbon steel with a 14-gauge wall for rugged durability. Its oil-resistant gasket helps seal against dust and moisture during operation. This combination enhances enclosure integrity in dirty or oily environments. Feature: UL 508A, CSA C22.2, and NEMA ratings validate safety and compliance. This simplifies procurement and accelerates audits across regulated facilities. It is well suited for automotive, packaging, and general industrial lines needing certified protection. Feature: ANSI 61 gray painted finish provides corrosion resistance and easy ID. This finish supports long-term appearance and standardization across plant fleets. It’s ideal for general-purpose enclosures and color-coded installations in plant rooms. Feature: Surface mounting with external feet for flexible installation. This enables quick relocation and minimizes field modifications. It is especially valuable in retrofit projects and new builds in control panels. Feature: Screw cover and a medium single-door design streamline maintenance. This enables fast access to push-button components while preserving enclosure integrity. It’s a practical choice for operator stations and start-stop assemblies. Feature: Designed to integrate with Eaton B-Line series accessories. This supports scalable expansions, reduces replacement cycles, and simplifies spare parts management. It’s a solid fit for modular panel designs and turnkey control stations.
Get a Quick Quote for a Eaton PV5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV5?
Enquire Now
FAQs
PV5 is designed for surface mounting with external feet, which simplifies retrofits and new builds. The 12.5 in x 3.25 in x 2.75 in footprint fits standard panel cavities, while its screw-cover door maintains enclosure integrity during fast access. This makes PV5 compatible with common Eaton B-Line accessories for turnkey installations.
PV5 carries UL 508A, CSA C22.2, and NEMA ratings, ensuring compliance for industrial control panels. The NEMA 12 protection rating provides ingress protection against dust and non-corrosive liquids. These certifications reduce regulatory risk and streamline procurement for regulated industries.
Yes. The PV5 uses carbon steel with a 14-gauge wall and an oil-resistant gasket, delivering reliable sealing in oily and damp spaces. This makes it suitable for workshop floors, machine bays, and packaging lines where exposure to lubricants occurs.
External mounting feet enable surface installation without chassis modification, facilitating relocation and reconfiguration. Plan for a level mounting surface and compatible fasteners to ensure seal integrity and easy door operation during routine maintenance.
PV5 reduces maintenance and replacement costs through robust carbon steel construction, durable gasket sealing, and standardization with Eaton’s B-Line accessories. The combination of certifications and modular compatibility supports lower downtime, simplified spares, and faster panel upgrades over the product lifecycle.
