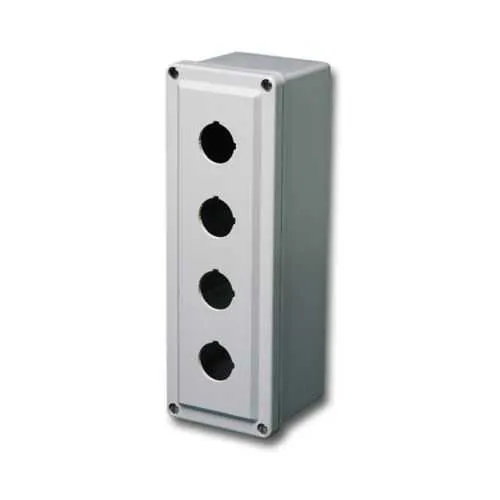

Eaton PV5F JIC Panel Enclosure Fiberglass NEMA 4X
Part Number: PV5F
Quick Summary
The Eaton PV5F JIC panel enclosure protects electrical components in harsh industrial environments. In challenging sites, moisture, dust, and vibration can compromise reliability and uptime; this enclosure helps prevent costly downtime. UL 50 and CSA C22.2 listings plus a NEMA 4X rating back up its rugged performance, making it suitable for wet, dusty, or corrosive conditions. The fiberglass body and unfinished gray finish resist weathering while staying light enough for easy handling. Its surface-mount design and screw-cover access simplify installation and field service, supporting streamlined procurement within Eaton's B-Line series ecosystem. For engineers and maintenance teams, this combination translates to predictable lifecycle costs and faster, safer installations.
Product Information
Extended Description
PV5F Eaton: Eaton B-Line series JIC panel enclosure, 13.78" height, 3.89" length, 3.12" width, NEMA 4X, Screw cover, PVF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV5F
UPC
782051537949
Product Length/Depth
3.89 in
Product Height
13.78 in
Product Width
3.12 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers excellent corrosion resistance, reducing maintenance and replacement costs in coastal or chemical environments, while extending device reliability in the field. This translates to lower total cost of ownership and fewer unplanned outages in demanding facilities. The NEMA 4X protection rating provides robust ingress resistance from water, dust, and corrosive elements, enabling safer operation in wash-down areas and outdoor installations. With dimensions of 13.78 in height, 3.89 in length, and 3.12 in width, the PV5F offers a compact footprint ideal for tight electrical closets or equipment spaces, supporting flexible rack layouts and easier retrofits in legacy installations. The screw cover and seamless poured-in-place gasket enhance seal integrity, delivering dependable enclosure performance for critical process controls. Surface mounting simplifies installation and reduces hardware requirements, accelerating project timelines and improving site safety. This PVF enclosure is designed for compatibility with Eaton’s B-Line series, ensuring seamless integration with existing enclosures and modular infrastructure. Fiberglass construction keeps weight manageable, easing handling during field work and replacement.
Get a Quick Quote for a Eaton PV5F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV5F?
Enquire Now
FAQs
PV5F is designed for surface mounting and does not include internal mounting provisions. Installers should attach the enclosure to a suitable mounting surface using external hardware, ensuring a stable, vibration-free installation that aligns with the surface-mMounting requirements and the canopy or wall surface.
PV5F dimensions are 13.78 in height, 3.89 in length, and 3.12 in width, with an approximate weight of 2 lb. The compact footprint supports tight electrical spaces and simple relocation, while the light weight aids handling during installation and servicing.
PV5F is ideal for harsh, wash-down, damp, or dusty environments due to its NEMA 4X rating and fiberglass construction. It supports outdoor installations and process-area protection, delivering reliable performance in challenging facilities such as manufacturing, water/wastewater, and chemical processing plants.
PV5F carries UL 50 and CSA C22.2 listings and a NEMA 4X rating, indicating robust protection against water, dust, and corrosion. These certifications help validate compliance for building codes and industry regulations while supporting safe, reliable operation.
By using a corrosion-resistant fiberglass enclosure with a seal-tight gasket and a simple surface-mount design, PV5F reduces maintenance, prolongs service life, and speeds installation—lowering lifecycle costs and accelerating project timelines in facilities with demanding environmental conditions.
