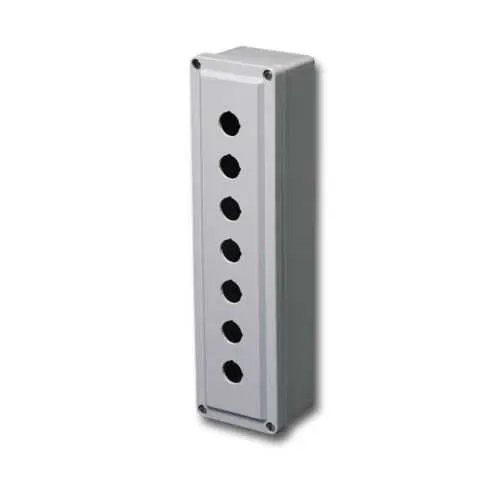

Eaton PV5MF JIC Panel Enclosure - NEMA 4X, US
Part Number: PV5MF
Quick Summary
PV5MF JIC panel enclosure by Eaton protects electrical gear in surface-mounted control panels across harsh industrial environments. Installing in damp or dusty facilities can challenge gasket integrity and maintenance responsiveness, but this enclosure is designed to keep contaminants out while enabling quick field access. UL 50, NEMA 4X, and CSA C22.2 certifications back its rugged fiberglass construction, ensuring reliability in corrosive or washdown settings. By pairing a screw-cover with a seamless gasket and a compact footprint, the PV5MF supports scalable control solutions while minimizing downtime and total cost of ownership. This makes it well-suited for facilities that require durable, low-maintenance electrical housings without sacrificing accessibility.
Product Information
Extended Description
PV5MF Eaton: Eaton B-Line series JIC panel enclosure, 11.13" height, 3.89" length, 3.81" width, NEMA 4X, Screw cover, PVMF enclosure, Surface mount, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV5MF
UPC
782051537987
Product Length/Depth
3.89 in
Product Height
11.13 in
Product Width
3.81 in
Product Weight
2 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVMF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Fiberglass construction with a gray unfinished finish delivers corrosion resistance and a lighter weight compared to metal enclosures, reducing handling risk and installation time in outdoor or damp environments. The UL 50, NEMA 4X, and CSA C22.2 certifications provide solid regulatory compliance for industrial controls, enabling installers to meet safety standards with confidence. Surface mounting simplifies installation in tight spaces; however, there are no internal mounting provisions, so external hardware or back-panel solutions are used to secure components, which can streamline field modifications and service procedures. A seamless poured-in-place gasket enhances the watertight and dust-tight seal, dramatically reducing ingress and delaying maintenance cycles. With compact dimensions—11.13 in tall, 3.89 in deep, 3.81 in wide—and a light 2 lb weight—the PV5MF fits crowded control rooms while preserving serviceability and heat dissipation considerations. The screw cover combines quick access with reliable protection, supporting quick routine inspections and minimizing downtime during panel work. This enclosure is an ideal fit for fiberglass-based, surface-mounted control panels in process, manufacturing, and utility applications, where durability, ease of retrofit, and predictable lifecycle costs are paramount.
Get a Quick Quote for a Eaton PV5MF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV5MF?
Enquire Now
FAQs
PV5MF is designed for surface mounting with a screw cover and seamless gasket; it does not include internal mounting provisions, so external mounting hardware or back panels are used to secure internal equipment. This enables quick field upgrades and easier retrofits in space-constrained enclosures while maintaining a robust protective seal.
The PV5MF enclosure measures 11.13 in high, 3.89 in deep, and 3.81 in wide, with an approximate weight of 2 lb. These compact dimensions support dense panel layouts and simplify handling during installation and maintenance in tight spaces.
PV5MF carries UL 50, NEMA 4X, and CSA C22.2 certifications, confirming compliance for enclosure performance in corrosive and washdown environments. These ratings support reliability in industrial controls, outdoor installations, and moisture-prone facilities.
PV5MF is well-suited for control panels in manufacturing, food and beverage processing, water treatment, and general industrial facilities where rugged fiberglass enclosures handle outdoor or damp conditions, while preserving quick access for routine service and inspections.
The seamless gasket and fiberglass construction reduce ingress risk and corrosion over time, lowering maintenance frequency. The screw-cover design allows rapid access for inspections and part replacement, contributing to shorter downtime and a lower total cost of ownership in facility maintenance programs.
