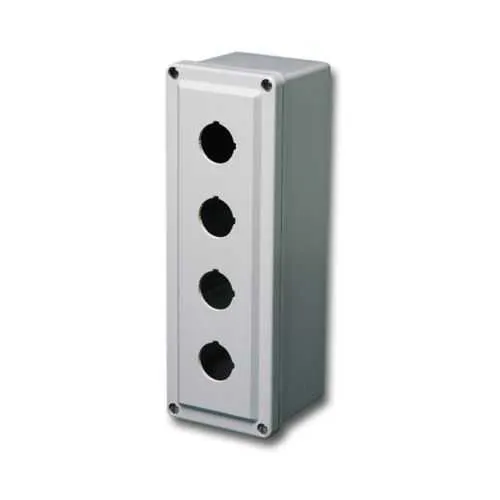

Eaton PV6F JIC Panel Enclosure - Fiberglass NEMA 4X
Part Number: PV6F
Quick Summary
PV6F JIC panel enclosure protects electrical controls in industrial environments. Engineers often confront corrosion, wash-down exposure, and mounting constraints that complicate choosing a reliable housing for critical panels. This Eaton B-Line PVF enclosure carries UL 50, NEMA 4X, and CSA C22.2 certifications to support compliance and long service life in demanding settings. With surface mounting, a screw cover, and a seamless poured-in-place gasket, it resists moisture and particulates while simplifying installation. The fiberglass construction and gray, unfinished finish reduce weight and material costs without sacrificing strength, helping facilities lower maintenance while preserving electrical integrity. In short, it blends performance, durability, and value for modern automation projects.
Product Information
Extended Description
PV6F Eaton: Eaton B-Line series JIC panel enclosure, 17.35" height, 3.89" length, 3.12" width, NEMA 4X, Screw cover, PVF enclosure, Surface mounted, Medium single door, No mounting provisions, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
PV6F
UPC
782051537956
Product Length/Depth
3.89 in
Product Height
17.35 in
Product Width
3.12 in
Product Weight
3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
PVF enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
No mounting provisions
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers excellent corrosion resistance, making the PV6F JIC panel enclosure a robust fiberglass electrical enclosure for wash-down and outdoor environments. This translates to longer service life, fewer maintenance intervals, and lower total cost of ownership in industrial automation settings. The design supports reliable control housing for automation projects across manufacturing and process industries, with material performance that withstands challenging conditions. The seamless gasket and screw cover provide a tight seal, reducing ingress of dust and moisture and supporting steady operation in demanding plants. Reduced maintenance downtime and easier cleaning contribute to higher overall equipment effectiveness and safer, compliant control panels. The enclosure’s compact footprint and lightweight profile enhance installation speed and accessibility in tight spaces, supporting scalable layouts in modern facilities.
Get a Quick Quote for a Eaton PV6F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PV6F?
Enquire Now
FAQs
The PV6F is designed for surface mounting, providing a straightforward installation path for wall or vertical surfaces. It features a screw cover and a PVF enclosure body with no internal mounting provisions, so external mounting hardware may be used if required by a specific installation. This keeps the interior clean while enabling flexible placement in tight spaces.
PV6F carries UL 50, NEMA 4X, and CSA C22.2 certifications. These confirm enclosure integrity against moisture, dust, and corrosion, supporting compliance in regulated industries and outdoor or wash-down environments. For engineers, this reduces qualification risk during audits and simplifies selection for marine, food & beverage, and process automation applications.
PV6F measures 17.35 inches in height, 3.12 inches in width, and 3.89 inches in depth, with an approximate weight of 3 pounds. These compact, lightweight dimensions facilitate easy handling, quick retrofits, and efficient integration into existing control panels without adding significant load or space requirements.
The enclosure uses fiberglass as the primary material and is finished in an unfinished gray surface. This combination delivers strong corrosion resistance, reduced weight, and cost-effective durability suitable for harsh environments, while maintaining compatibility with standard control components and surface-mounted installations.
You can access Eaton’s official resources for PV6F from the product downloads section. The Electrical Enclosure Catalog and the Eaton Specification Sheet for PV6F provide detailed dimensions, mounting guidance, and certification data, helping you verify suitability for your specific application and ensure proper installation and compliance.
