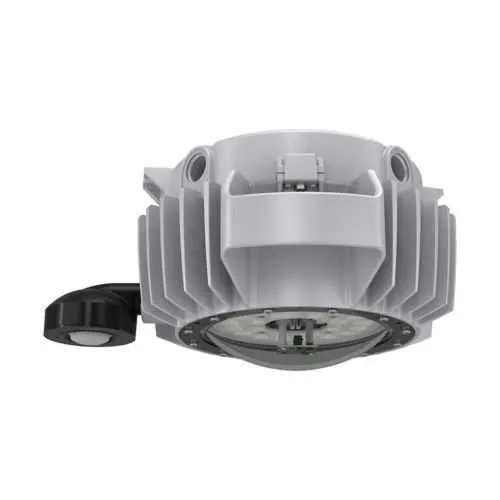

Eaton PVML-3-UNV1-SS12-M3 Intelligent LED light - IP66
Part Number: PVML-3-UNV1-SS12-M3
Quick Summary
PVML-3-UNV1-SS12-M3 Intelligent LED light fixture from Eaton delivers 3000 lumens of cool-white light with an efficient 21-watt driver for industrial facilities. This robust lighting solution addresses downtime and maintenance challenges by combining long life, dimming capability, and sensor-ready design that can integrate with existing controls. Built to withstand harsh environments, it carries IP66 ingress protection and a NEMA 4X enclosure, helping keep critical equipment illuminated in wet, dusty, or corrosive settings. It also complies with NEC/CEC/IEC standards, ensuring safe installation in ordinary and non-hazardous locations. By pairing smart lighting with rugged reliability, this fixture reduces energy use while improving safety, inspection cycle times, and overall facility uptime.
Product Information
Extended Description
PVML-3-UNV1-SS12-M3 Eaton: Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture, Cool, Dimmable, No guard, Heat and impact resistant glass lens, 3000 lm, 156 lm/W, Die cast alum, No mtg module, Type V optics, Sensor, 100-277 Vac, 127-250 Vdc, 21W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture
Catalog Number
PVML-3-UNV1-SS12-M3
UPC
662277167024
Product Length/Depth
18.25 in
Product Height
6.5 in
Product Width
16 in
Product Weight
14.98 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
3000
Lumens per watt
156
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
21W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
Special features
Sensor with barrier board
SP3D Design Package - Champ PVML LED Intelligent Lighting
Champ Intelligent Lighting cybersecurity flyer
Champ Intelligent Lighting cybersecurity flyer
Champ Intelligent Lighting Quick Start Guide
Crouse-Hinds series Champ PVML LED Intelligent lighting - catalog page
Champ PVML LED Intelligent lighting UL certification
Champ PVML LED Intelligent lighting UL certification
Champ PVML LED Intelligent lighting UL certification
Champ Intelligent Lighting FAQs
Crouse-Hinds series Champ PVML LED Intelligent ies photometric files
Intelligent sensor-ready design with barrier board enables smart control to substantially reduce energy waste and maintenance cycles in warehouses and manufacturing floors. This feature translates to measurable cost savings and easier compliance with energy management programs. The PVML-3-UNV1-SS12-M3 supports seamless integration with existing control systems, enabling occupancy-based dimming and scene-setting without a complete lighting overhaul. Dimmable driver and wide voltage range (100–277 Vac, 127–250 Vdc) provide installation flexibility across varying facility electrical infrastructures, reducing the need for multiple SKUs and simplifying procurement. Type V optics deliver uniform area illumination, improving safety and productivity on production lines while maintaining high visual comfort for operators. The die-cast aluminum housing paired with a heat- and impact-resistant glass lens ensures longevity in dusty or industrial environments, lowering maintenance costs and downtime. With IP66 and NEMA 4X ratings, the fixture is protected against water, dust, and corrosion, extending service life in challenging locations. The Champ PVML design supports robust performance in ordinary/non-hazardous locations, aligning with NEC/CEC/IEC standards and ensuring reliable operation across shifts and seasons.
Get a Quick Quote for a Eaton PVML-3-UNV1-SS12-M3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVML-3-UNV1-SS12-M3?
Enquire Now
FAQs
PVML-3-UNV1-SS12-M3 uses no mounting module by design. Installation relies on compatible mounting hardware or brackets suitable for die-cast aluminum luminaires. Verify weight (approximately 14.98 lb) and ensure the mounting surface or bracket supports the fixture’s size and load. Consult product installation guidelines for compliant mounting practices.
The luminaire accepts 100–277 Vac or 127–250 Vdc, operates at 50/60 Hz, and draws 21 W while delivering 3000 lumens (approx. 156 lm/W). It features a dimmable driver compatible with compatible controls, enabling occupancy-based or daylight-responsive dimming without compromising performance or color consistency.
Yes. The fixture is rated IP66 and NEMA 4X, designed for ordinary/non-hazardous locations in dusty, wet, or potentially corrosive settings. The housing is die-cast aluminum with a heat- and impact-resistant glass lens, providing robust protection and long service life in demanding facilities.
PVML-3-UNV1-SS12-M3 complies with NEC/CEC/IEC standards and carries IP66/NEMA 4X ratings, supporting installation in ordinary/non-hazardous locations. This alignment aids safe commissioning, reduces regulatory risk, and ensures alignment with common industrial procurement and safety requirements. Additional documentation and UL certification resources are available via Eaton’s literature and certification pages.
With 3000 lumens at 21 W and a dimmable driver, the fixture delivers high energy efficiency (roughly 156 lm/W) while enabling smart control to reduce waste during low-occupancy periods. The rugged housing and lens minimize maintenance cycles, lowering replacement costs and downtime across shift operations in warehouses and light industrial spaces.
