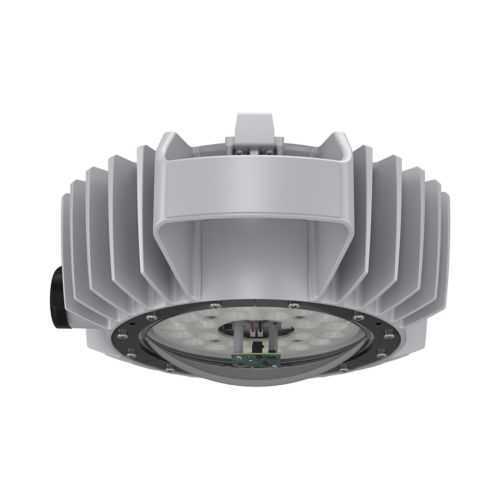

Eaton PVML-5-A2-R1A-UNV1-M3 LED light fixture - IP66
Part Number: PVML-5-A2-R1A-UNV1-M3
Quick Summary
PVML Intelligent LED light fixture from Eaton provides high-output illumination for industrial facilities. Engineers often struggle with downtime, limited voltage compatibility, and rising maintenance costs, making a reliable lighting upgrade essential. This unit meets NEC/CEC IEC standards, NEMA 4X, and IP66 ratings, delivering rugged reliability. With a dimmable driver, 5000 lumens, and a broad 100-277 Vac / 127-250 Vdc range, it supports energy programs and long-term budgets. Its pendant mounting and heat and impact resistant glass lens add installation flexibility and protect performance in washdown environments, making it a strong fit for warehouses, manufacturing floors, and outdoor facilities.
Product Information
Extended Description
PVML-5-A2-R1A-UNV1-M3 Eaton: Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 5000 lumens, 133 lm/W, Die cast alum, Pendant mt, Type I optics, 3/4", 100-277Vac, 127-250Vdc, 35W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture
Catalog Number
PVML-5-A2-R1A-UNV1-M3
UPC
662277166607
Product Length/Depth
13 in
Product Height
8 in
Product Width
16 in
Product Weight
12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
5000
Lumens per watt
133
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type I
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
35W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ PVML LED Intelligent Lighting
Champ Intelligent Lighting cybersecurity flyer
Champ Intelligent Lighting cybersecurity flyer
Champ Intelligent Lighting Quick Start Guide
Crouse-Hinds series Champ PVML LED Intelligent lighting - catalog page
Champ PVML LED Intelligent lighting Canadian certification
Champ PVML LED Intelligent lighting Canadian certification
Champ PVML LED Intelligent lighting Canadian certification
Champ Intelligent Lighting FAQs
Crouse-Hinds series Champ PVML LED Intelligent ies photometric files
Feature: 5000 lumens at 133 lm/W with cool white output. Business Impact: High-efficiency lighting reduces energy consumption and lowers operating costs while maintaining bright, consistent illumination. Application: Ideal for general area lighting in industrial spaces such as warehouses and production lines. Feature: Dimmable driver. Business Impact: Enables optimized light levels for task-specific areas, reducing glare and energy use during low-demand periods. Application: Supports intelligent control schemes and retrofit projects where lighting needs vary by shift. Feature: Universal input range 100-277 Vac / 127-250 Vdc. Business Impact: Simplifies stocking and installation across global facilities, reducing wiring mistakes and project complexity. Application: Suitable for mixed-voltage plants and retrofit assemblies. Feature: IP66 and NEMA 4X protection. Business Impact: Ensures reliable operation in washdown, dusty, or harsh environments, lowering maintenance disruptions. Application: Food processing, chemical plants, and outdoor installations. Feature: Heat and impact resistant glass lens + die-cast aluminum housing. Business Impact: Extended service life and resistance to corrosion, reducing replacement cycles. Application: Environments with temperature fluctuations and physical wear. Feature: Pendant mounting with Type I optics. Business Impact: Flexible light distribution and straightforward installation, saving installation time and reducing space constraints. Application: Industrial ceilings and elevated mounting zones. Long-tail keywords integrated: industrial LED lighting for ordinary locations, IP66 LED fixture, rugged industrial pendant light, 100-277Vac universal input, dimmable intelligent lighting, Crouse-Hinds Champ PVML, washdown-ready LED light.
Get a Quick Quote for a Eaton PVML-5-A2-R1A-UNV1-M3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVML-5-A2-R1A-UNV1-M3?
Enquire Now
FAQs
Begin with a suitable ceiling or support point for pendant mounting, ensuring clearance for wiring and the 13 in length, 16 in width, and 8 in height. Connect the 100-277 Vac or 127-250 Vdc supply to the dimmable driver, follow safety guidelines for working at height, secure the housing and glass lens, and verify Type I optical alignment. The lens is heat and impact resistant, and the housing is die-cast aluminum for rugged installations.
The fixture runs at 35W with 5000 lumens and a luminous efficacy of 133 lm/W. It supports a wide voltage range of 100-277 Vac and 127-250 Vdc, with a dimmable driver and a frequency rating of 50/60 Hz. The power factor is greater than 0.90, ensuring efficient operation within standard electrical systems.
Yes. The PVML is rated for Ordinary/Non-Hazardous Locations and features IP66 ingress protection along with NEMA 4X enclosure protection. These ratings make it appropriate for washdown zones, dusty environments, and general industrial spaces without requiring special hazard classifications.
The PVML supports NEC/CEC IEC standards, has a NEMA 4X enclosure rating, and an IP66 ingress protection rating. It is intended for ordinary/non-hazardous industrial locations, providing reliable compliance for typical industrial and commercial facilities.
The LED design delivers energy savings with 5000 lumens at 133 lm/W and a dimmable driver to optimize lighting levels. Long life and robust housing reduce maintenance cycles and replacement costs. Its rugged IP66/NEMA 4X protection also diminishes downtime in harsh environments, improving overall return on investment for facility lighting upgrades.
