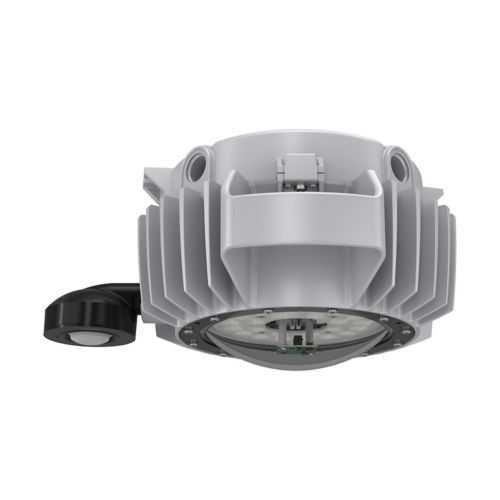

Eaton PVML-5-UNV1-SS12-M3 LED Intelligent Fixture - IP66

High lumen output pairs with efficient optics to deliver brighter illumination with lower energy consumption. At 5000 lumens and 156 lm/W, Type V distribution ensures uniform coverage across large industrial spaces, reducing hotspots and supporting accurate visual inspection in factories and warehouses. The dimmable driver and wide voltage range support flexible deployment across existing electrical systems. With 100-277 Vac and 127-250 Vdc, plus 50/60 Hz operation and PF >0.90, it integrates smoothly with building controls and energy management systems. Rugged IP66 and NEMA 4X enclosures protect against dust, water, and corrosion in harsh environments. This reduces maintenance intervals and extends service life in outdoor facilities, washdown areas, and warehouse docks. Sensor with barrier board enables occupancy-based control, turning lighting on only when needed. This capability, combined with dimmable drivers, delivers measurable energy savings and supports compliance with lighting standards. Die-cast aluminum housing provides robust heat management and long life in hot plants. The heat and impact resistant glass lens protects performance, while Type V optics deliver uniform illumination. No mounting module is included, but PVML is designed to integrate with common mounting hardware and Champ Intelligent Lighting controls. Quick-start guides and photometric data help installers plan, verify, and deploy with confidence.
