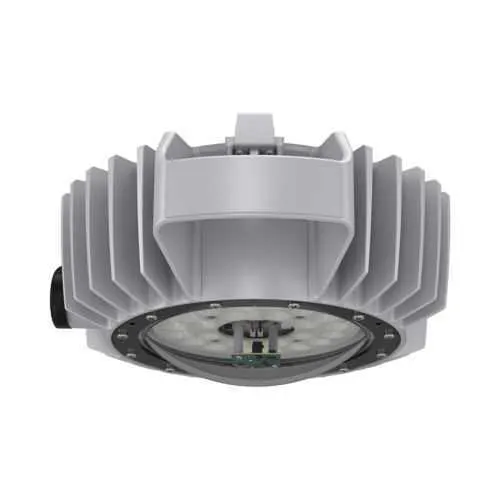

Eaton PVML-7-A2-UNV1-M3 LED Light Fixture - IP66

Part Number: PVML-7-A2-UNV1-M3
PVML-7-A2-UNV1-M3
Manufacturer
Eaton
Part number
PVML-7-A2-UNV1-M3
Category

Quick Summary

Eaton PVML-7-A2-UNV1-M3 is an intelligent LED light fixture designed for rugged industrial environments. It delivers bright, reliable illumination while enabling dimming control to optimize energy use and minimize maintenance downtime. In harsh facilities, glare, lens damage, and failure modes threaten uptime; this fixture’s heat and impact resistant glass lens, Type V optics, and 50 W driver mitigate these risks. With an input range of 100-277 Vac or 127-250 Vdc, pendant mounting, and robust certifications, it supports dependable operation across automation floors, outdoors, and wet locations. For engineers and procurement teams, the PVML line aligns with modern energy management and lifecycle cost reduction goals without compromising safety or performance.

Product Information

Extended Description

PVML-7-A2-UNV1-M3 Eaton: Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture, Cool white, Dimmable, No guard, Heat and impact resistant glass lens, 7000 lm, 153 lm/W, Die cast alum, Pendant mt, Type V optics, 3/4", 100-277 Vac, 127-250 Vdc, 50W
Product Name
Eaton Crouse-Hinds series Champ Pro PVML Intelligent LED light fixture
Catalog Number
PVML-7-A2-UNV1-M3
UPC
662277166775
Product Length/Depth
13 in
Product Height
8 in
Product Width
16 in
Product Weight
12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lumens
7000
Lumens per watt
153
Color temperature
Cool white
Mounting Method
Pendant
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Lens material
Heat and impact resistant glass
Guard type
No guard
Voltage rating
100-277 Vac, 127-250 Vdc
Wattage
50W
Dimming
Dimmable driver
Frequency rating
50/60 Hz
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ PVML LED Intelligent Lighting Champ Intelligent Lighting cybersecurity flyer Champ Intelligent Lighting cybersecurity flyer Champ Intelligent Lighting Quick Start Guide Crouse-Hinds series Champ PVML LED Intelligent lighting - catalog page Champ PVML LED Intelligent lighting UL certification Champ PVML LED Intelligent lighting UL certification Champ PVML LED Intelligent lighting UL certification Champ Intelligent Lighting FAQs Crouse-Hinds series Champ PVML LED Intelligent ies photometric files
Feature: High lumen output with efficient optics → Business Impact: Improves area coverage with fewer fixtures and lower energy use, reducing total cost of ownership. Application: Large manufacturing floors and warehouses seeking uniform cool-white illumination. Feature: Dimmable driver and wide voltage range → Business Impact: Enables precise control with building automation and occupancy sensors, cutting wasteful lighting. Application: Automated facilities and retrofits where dimming enhances energy savings. Feature: Rugged housing and protective lens → Business Impact: Enhanced durability lowers maintenance frequency in aggressive environments, extending service life. Application: Outdoor loading bays, chemical plants, and wet locations requiring reliable protection. Feature: Certified to NEC/CEC IEC, IP66 and NEMA 4X → Business Impact: Simplifies compliance, safety approvals, and procurement routing, reducing project delays. Application: Industrial facilities with strict standards and harsh service conditions. Feature: Pendant mounting and Type V optics → Business Impact: Flexible installation in truss or suspended ceilings with precise photometric distribution. Application: Refinery galleries, mezzanines, and large work areas where focused light control is essential.

Get a Quick Quote for a Eaton PVML-7-A2-UNV1-M3

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton PVML-7-A2-UNV1-M3? Enquire Now

FAQs

The PVML-7-A2-UNV1-M3 uses a pendant mounting method, designed for easy suspension from ceilings or support structures. The fixture weighs 12 lb and measures 13 in length, 8 in height, and 16 in width, enabling straightforward alignment and photometric placement. This reduces installation time and compatibility with existing mounting points in industrial facilities.
PVML-7-A2-UNV1-M3 is certified for Ordinary/Non-Hazardous Locations and features IP66 and NEMA 4X protection. It is not rated for hazardous (classified) locations. For facilities with hazardous exposure, consider alternative champ PVML models that meet appropriate classifications and consult the certifications and UL documentation before deployment.
This luminaire supports a universal input range of 100-277 Vac and 127-250 Vdc, with a dimmable driver. The combination enables seamless integration with lighting controls and automation systems, allowing you to reduce energy use during off-peak hours while maintaining required lumen levels during active production shifts.
PVML-7-A2-UNV1-M3 aligns with NEC/CEC IEC standards and carries IP66 and NEMA 4X ratings, ensuring durability in wet and harsh environments. These certifications simplify regulatory approval, safety compliance, and procurement processes for industrial facilities, minimizing project risk and installation delays.
The fixture provides 7000 lumens at approximately 153 lm/W with cool white light. This combination delivers bright, high-contrast illumination ideal for industrial workspaces, while maintaining energy efficiency and long-term reliability in demanding conditions.
