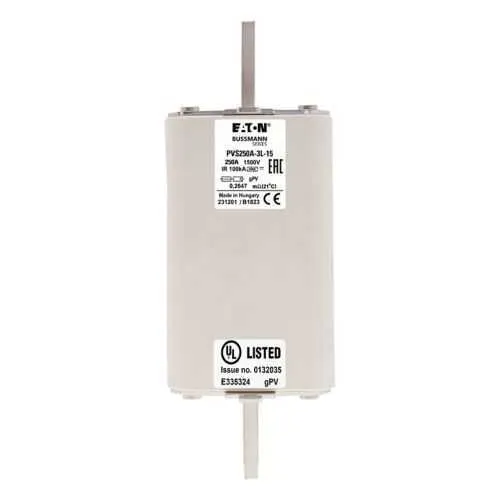

Eaton PVS250A-3L-15 Photovoltaic Fuses - UL Listed
Part Number: PVS250A-3L-15
Quick Summary
Eaton PVS250A-3L-15 Photovoltaic fuses protect solar arrays and inverters in demanding PV installations. Engineers often face high fault currents, long downtime, and uncertainty when protecting 1500 V DC systems; these fuses deliver fast, predictable interruption to keep critical PV assets online. The device carries CE marking, RoHS compliance, UL Listed status, and IEC 60269 alignment, ensuring global acceptance. With a top-indicator design and a PV-specific 3L format, installation is straightforward and diagnostics are quick, reducing on-site labor. For solar projects, this translates into improved reliability, lower maintenance costs, and faster project timelines through consistent protection performance.
Product Information
Extended Description
PVS250A-3L-15 Eaton: Eaton Bussmann series photovoltaic fuses, 250A, 1500V, 3L PV, BLA,DED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS250A-3L-15
EAN
5996516049020
Product Length/Depth
205 mm
Product Height
82 mm
Product Width
75 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
250 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
90000
Watt losses
43 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Top indicator
Suitable for
SD3L-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004973.pdf
DA-DC-00004973.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature: 250 A amperage rating and 1500 V voltage rating. Business Impact: Enables safe, code-compliant protection for high-voltage PV strings, limiting damage during faults and reducing the risk of cascading failures. Application: Suitable for commercial and utility-scale PV arrays that operate at 1500 V DC. Insight: Pairing these ratings with a 100 kAIC interrupt capability ensures robust arc-quenching performance in demanding installations. Feature: Class gPV and Pre arc (I2T) of 90000. Business Impact: Optimizes fault discrimination and minimizes arcing energy, extending component life and protecting inverters. Application: Critical for inverters and junctions where fast interruption is essential to prevent panel-level damage. Insight: Supports reliable operation under diverse PV string configurations. Feature: With Indicator and 3L fuse size. Business Impact: Quick status checks and a compact footprint simplify field servicing and retrofit projects. Application: Ideal for SD3L-S-PV XL fuse bases in modular solar protection schemes. Insight: Reduces maintenance time and improves mount-density in crowded equipment rooms. Feature: Watt losses 43 W. Business Impact: Lower heat generation translates to cooler cabinet environments and improved overall system efficiency. Application: Beneficial in enclosure-limited installations where thermal management is a concern. Insight: Helps meet enclosure ratings and energy management objectives. Feature: Compliances CE Marked, RoHS Compliant; Certifications IEC 60269, UL Listed. Business Impact: Ensures regulatory acceptance across regions, streamlining procurement and reducing compliance risk. Application: Global solar deployments requiring standard electrical protection certification. Insight: Simplifies supplier audits and project documentation. Feature: Compatible with SD3L-S-PV XL Fuse base. Business Impact: Fast, plug-in protection with proven compatibility reduces installation time and field errors. Application: Retrofit and new-build PV systems using modular protection baselines. Insight: Supports scalable protection architectures with predictable performance.
