Eaton PVS250A-3L-B-15 PV Fuses - UL Listed 1500V
Part Number: PVS250A-3L-B-15
Quick Summary
Eaton PVS250A-3L-B-15 PV Fuses protect solar power systems by interrupting fault current in photovoltaic arrays. Engineers often struggle with choosing fuses that withstand 1500 VDC, deliver reliable opening, and fit standard PV hardware. This device is CE marked, RoHS compliant, and UL listed per IEC 60269, providing robust regulatory alignment for global deployments. Its 3L format, built-in side indicator, and compatible blade-on-bolt holders translate to faster installation and reduced field mistakes. For designers, the 250 A rating, 1500 VDC rating, and 100 kAIC interrupt rating simplify risk modeling and system safety margins. The fuse is purpose-built for photovoltaic systems and inverters, with the 3L size and bolt-down compatibility that speeds field installation.
Product Information
Extended Description

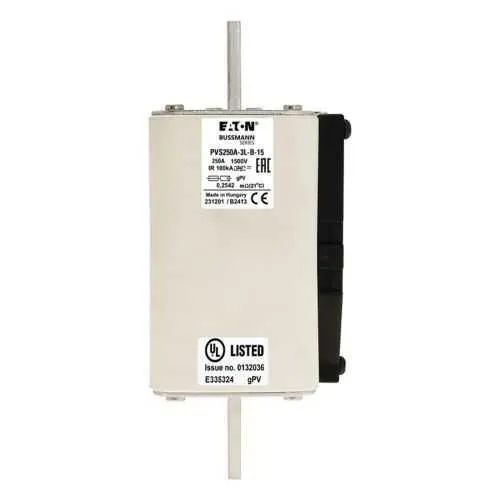

PVS250A-3L-B-15 Eaton: Eaton Bussmann series photovoltaic fuses, 250A, 1500V, 3L PV, BOLTED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS250A-3L-B-15
EAN
5996516049129
Product Length/Depth
201.4 mm
Product Height
91 mm
Product Width
74 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
250 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
90000
Watt losses
42 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Side indicator
Suitable for
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004974.pdf
DA-DC-00004974.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature: 250 A continuous current rating with a 1500 V DC maximum and 100 kAIC interrupt rating. Business Impact: Enables protection for large PV arrays and high-energy inverters while minimizing nuisance tripping and protecting critical components. Application: Ideal for commercial rooftop deployments and utility-scale PV installations where fast, reliable fault clearance is essential. Feature: Class gPV construction with a Pre-arc (I2T) rating of 90000. Business Impact: Predictable opening characteristics reduce arc energy and downtime, improving overall system reliability. Application: Suitable for PV systems and inverters subjected to transient conditions and fault events. Feature: Indicator capability and 3L form factor with side indicator. Business Impact: Quick, at-a-glance status checks reduce maintenance time and field troubleshooting. Application: Field service and remote monitoring scenarios where uptime is critical. Feature: Blade-with-bolt-hole compatibility for fuse holders. Business Impact: Speeds installation and retrofit, lowers mechanical integration risk. Application: Retrofit projects and panel upgrades in PV infrastructure. Feature: Compliance and efficiency attributes including CE Marked, RoHS Compliant, UL Listed, and 42 W watt losses. Business Impact: Enhances regulatory compliance and predictable thermal performance, supporting global deployments. Application: Cross-border solar projects and energy storage interfaces requiring proven protection.
