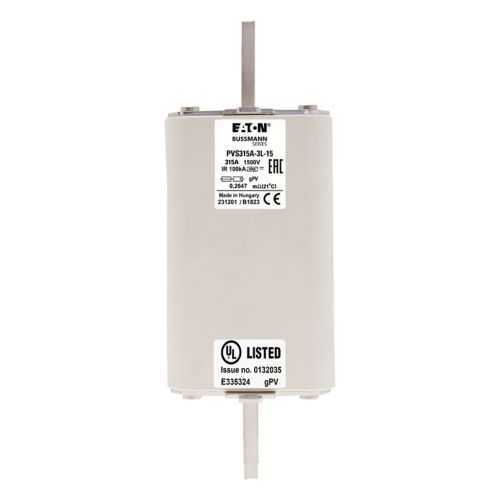

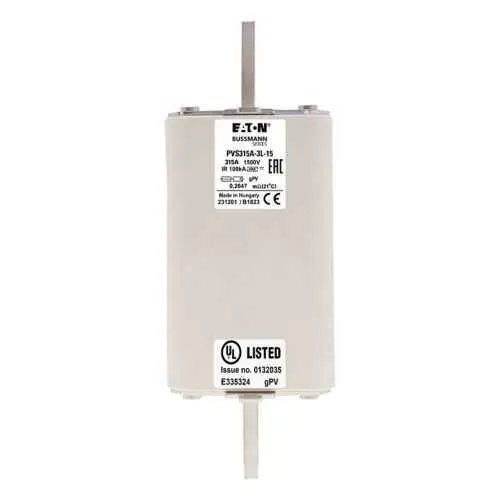

Eaton PVS315A-3L-15 Photovoltaic Fuses - 100 kAIC
Part Number: PVS315A-3L-15
Quick Summary
Eaton Bussmann series photovoltaic fuses protect solar arrays by safely interrupting overcurrent in high‑voltage DC PV circuits. Engineers and procurement teams often struggle to select devices that resist arc energy, minimize downtime, and withstand outdoor exposure. These fuses are CE marked, RoHS compliant, and UL listed, with IEC 60269 alignment for global compliance. With a 315 A rating at 1500 V in a 3L package and a top indicator, they offer robust protection plus easy field checks. Designed for PV strings and inverter protection, they help reduce maintenance costs and improve uptime. The PVS315A-3L-15 is compatible with SD3L-S-PV XL bases, supporting simple retrofit and scalable solar deployments.
Product Information
Extended Description
PVS315A-3L-15 Eaton: Eaton Bussmann series photovoltaic fuses, 315A, 1500V, 3L PV, BLA,DED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS315A-3L-15
EAN
5996516049037
Product Length/Depth
205 mm
Product Height
82 mm
Product Width
75 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
315 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
175000
Watt losses
55 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Top indicator
Suitable for
SD3L-S-PV XL Fuse base
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004973.pdf
DA-DC-00004973.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature: 315 A at 1500 V rating provides headroom for PV strings and inverters. Business Impact: Enables reliable protection under fault and surge conditions, reducing device damage and unplanned outages. Application: Ideal for 1500 VDC PV arrays and high‑voltage inverter feeds. Feature: 100 kAIC interrupt rating enables fast fault clearance with minimal arc energy. Business Impact: Lowers conductor heating, minimizes thermal stress on downstream equipment, and decreases replacement costs. Application: Utility-scale and commercial PV plants with long cable runs. Feature: Class gPV construction with Pre arc (I2T) of 175000. Business Impact: Predictable arc behavior and selective coordination with other protection devices, improving system reliability. Application: PV strings in centralized and decentralized solar installations. Feature: Top indicator and 3L fuse size. Business Impact: Quick status checks during maintenance, reducing downtime and service time. Application: Retrofit and routine inspections in fielded PV systems. Feature: Watt losses listed at 55 W. Business Impact: Manageable thermal load within enclosures, supporting stable operation and easier thermal management. Application: Enclosures housing PV protection assemblies. Feature: Compliance and compatibility. Business Impact: Global acceptance (CE, RoHS, UL) and straightforward integration with SD3L-S-PV XL fuse bases, lowering installation risk. Application: Global PV projects, inverters, and multi‑string configurations.
