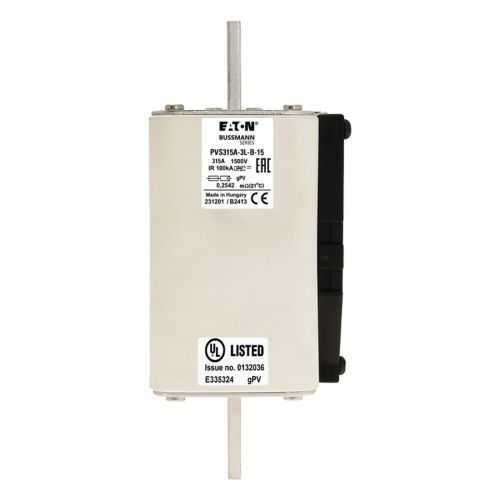

Eaton PVS315A-3L-B-15 Photovoltaic Fuses - 1500 V, 315 A, 100 kAIC
Part Number: PVS315A-3L-B-15
Quick Summary
Eaton Bussmann photovoltaic fuses protect PV inverters and string circuits by fast interrupting faults. Engineers face challenges delivering reliable overcurrent protection at 1500 V DC without nuisance trips or delayed responses. These devices carry CE marked and RoHS compliant for EU markets, plus IEC 60269 and UL Listed for global deployment. Designed for 1500 VDC systems, the 315 A, 3L form factor reduces cabinet space while maintaining safe margins, enabling easier installation. This model also features a status indicator for quick maintenance verification. Partnering with Eaton ensures scalable PV protection, lower maintenance, and predictable performance across solar inverters and array mains.
Product Information
Extended Description
PVS315A-3L-B-15 Eaton: Eaton Bussmann series photovoltaic fuses, 315A, 1500V, 3L PV, BOLTED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS315A-3L-B-15
EAN
5996516049136
Product Length/Depth
201.4 mm
Product Height
91 mm
Product Width
74 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
315 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
175000
Watt losses
52 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Side indicator
Suitable for
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004973.pdf
DA-DC-00004973.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature: 315 A amperage rating and 1500 V DC operating capability underline the device's suitability for modern PV strings. Business Impact: Enables reliable fault interruption while meeting system voltage requirements, reducing the risk of panel damage and unscheduled outages. Application: ideal for photovoltaic arrays and inverter mains in commercial and utility-scale solar installations. Feature: 3L fuse size with bolt-hole compatibility and blade mounting simplifies integration with standard fuse holders and reduces installation time. Business Impact: accelerates field assembly and lowers labour costs while maintaining secure mounting. Application: protection assemblies in inverters, combiner boxes, and string enclosures. Feature: Indicator and side indicator improve visibility of fuse status during maintenance and troubleshooting. Business Impact: quick MTTR reduction and improved reliability margins for remote plants. Application: ongoing plant monitoring in utility-scale PV facilities and rooftop arrays. Feature: Pre-arc I2T of 175000 and watt losses of 52 W minimize arc energy and energy waste. Business Impact: longer fuse life, reduced contact wear, and improved overall system efficiency. Application: continuous protection in high-energy PV installations. Feature: Compliances and certifications including CE Marked, RoHS, IEC 60269, and UL Listed support regulatory readiness and cross-market deployment. Business Impact: simplifies certification processes and accelerates project approval. Application: global solar projects across EU, NA, and APAC regions.
Get a Quick Quote for a Eaton PVS315A-3L-B-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVS315A-3L-B-15?
Enquire Now
FAQs
The PVS315A-3L-B-15 is designed for photovoltaic systems up to 1500 V DC and 315 A continuous current. It fits 3L fuse holders with blade or bolt-hole interfaces, making it suitable for PV arrays, inverter mains, and string protection in commercial and utility-scale solar projects. Ensure compatibility with the fuse holder and follow UL/IEC installation guidelines for safe operation.
This fuse is CE Marked and RoHS compliant for EU markets, and UL Listed with IEC 60269 recognition for broader global deployment. These certifications support regulatory acceptance, safety compliance, and streamlined procurement across international solar projects.
Install with the blade-and-bolt compatible fuse holder using the 3L size, ensuring proper alignment with the side indicator for status. Torque requirements should follow the holder’s specification, and confirming the indicator before energizing ensures correct operation and safe maintenance access in PV inverters and string boxes.
The fuse features a 100 kAIC interrupt rating with a pre-arc I2T of 175000, delivering rapid fault interruption and limiting energy transfer during faults. This helps protect PV modules and inverters from damaging overcurrent events while supporting reliable system uptime in solar installations.
Low watt losses of 52 W and a status indicator contribute to reduced energy waste and quicker fault diagnosis, lowering maintenance costs and downtime. The robust 1500 V, 315 A rating supports longer service life in continuous PV protection, delivering a favorable return on investment for solar plant operators and EPCs.
