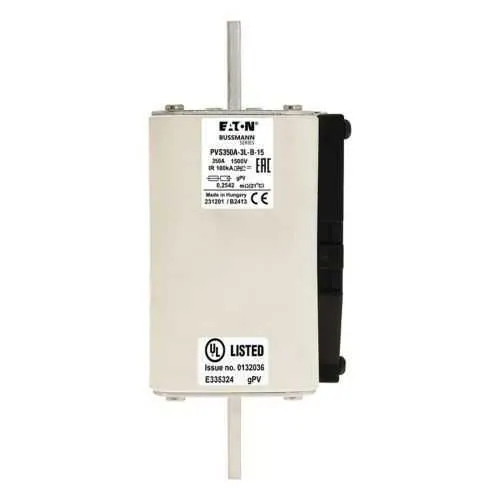

Eaton PVS350A-3L-B-15 Photovoltaic fuses - UL Listed
Part Number: PVS350A-3L-B-15
Quick Summary
Photovoltaic fuses protect solar power systems by reliably interrupting faults in PV strings and inverters. The Eaton PVS350A-3L-B-15 delivers robust protection with a 350 A, 1500 V rating for bolt-on 3L configurations used in utility-scale and commercial PV plants. CE Marked, RoHS compliant, and UL Listed under IEC 60269, these certifications support regulatory compliance and supply-chain reliability. The device also features a built-in indicator for fast diagnostics, easing maintenance and reducing downtime, while its compact 3L form-factor simplifies panel mounting and wiring in tight installations. This combination of reliability and installability makes it a compelling choice for PV protection, solar inverter protection, and end-to-end system integrity.
Product Information
Extended Description
PVS350A-3L-B-15 Eaton: Eaton Bussmann series photovoltaic fuses, 350A, 1500V, 3L PV, BOLTED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS350A-3L-B-15
EAN
5996516049143
Product Length/Depth
201.4 mm
Product Height
91 mm
Product Width
74 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
350 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
250000
Watt losses
54 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Side indicator
Suitable for
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004973.pdf
DA-DC-00004973.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Amperage and voltage ratings provide clear protection boundaries. A 350 A current rating paired with a 1500 V DC rating means the fuse can safely interrupt faults in mid- to large-scale PV arrays without overrating components. In practice, installers specify for solar strings and inverters in utility-scale and commercial installations. High interrupt rating of 100 kAIC ensures rapid fault clearance in high-energy fault scenarios, reducing the risk of equipment damage and fire in utility-scale projects. Pre-arc (I2T) of 250000 enhances reliability during heavy fault currents by minimizing contact erosion and extending fuse life, which translates to lower replacement costs and less downtime. The side indicator and 3L size support straightforward diagnostics and modular mounting, enabling faster commissioning and easier field servicing. Compatibility with blade-with-bolt-hole fuse holders simplifies retrofit and new installs alike, while 54 W watt losses are managed to minimize heat within the switchgear and panels in PV protection schemes. All these features align with industry needs for compliant, efficient PV protection, inverter safety, and long-term system availability.
Get a Quick Quote for a Eaton PVS350A-3L-B-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVS350A-3L-B-15?
Enquire Now
FAQs
PVS350A-3L-B-15 is suitable for blade with bolt holes fuse holders and uses a 3L bolt-on configuration. The side indicator aids in rapid field diagnostics, and the blade-with-bolt-hole compatibility streamlines retrofits and new installations in existing racks or switchgear.
The fuse provides a 350 A amperage rating, 1500 V DC voltage rating, and a 100 kAIC interrupt rating. These specs mean it can safely interrupt faults in medium to large PV arrays and inverters, meeting common utility-scale and commercial PV protection needs while supporting fast fault clearance.
Yes. With a 1500 VDC rating and 350 A protection, the PVS350A-3L-B-15 is designed for PV inverters and PV strings. Its indicator feature helps technicians verify status quickly, reducing maintenance time during commissioning and fault investigations.
It is CE Marked and RoHS Compliant, with IEC 60269 and UL Listed certifications. These approvals ensure regulatory compliance, safety, and compatibility with international standards, streamlining supplier qualification and reducing risk during procurement.
The 100 kAIC interrupt rating, 250000 pre-arc I2T, and 54 W watt losses contribute to reliable fault interruption with controlled heat generation, reducing nuisance trips and component wear. The side indicator supports quick diagnostics, shortening maintenance windows and improving system availability.
