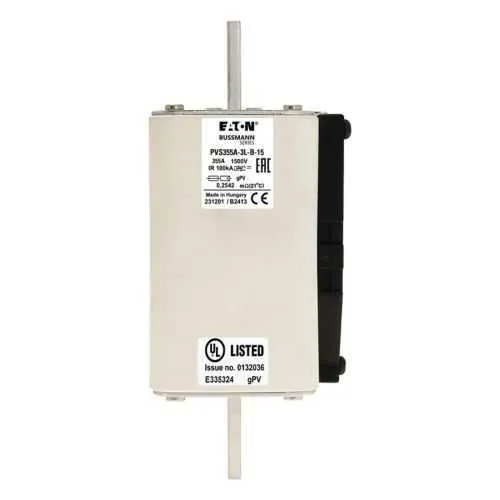

Eaton PVS355A-3L-B-15 Photovoltaic fuses - UL Listed
Part Number: PVS355A-3L-B-15
Quick Summary
Photovoltaic fuses protect solar inverters and PV arrays by fast DC interruption in high-voltage installations. Manufacturers often struggle to pick fuses that reliably handle 1500 V DC while minimizing nuisance trips across dynamic PV strings. The PVS355A-3L-B-15 carries CE Marked, RoHS Compliant, UL Listed and IEC 60269 alignment for reliable global compliance and traceability. It is designed for 355 A at 1500 V in a 3L package with a side indicator, giving clear status in crowded equipment racks. This combination reduces maintenance downtime, improves uptime, and provides predictable protection for critical PV assets, while enabling straightforward installation and compatibility with blade-style holders—supporting efficient, scalable solar protection strategies.
Product Information
Extended Description
PVS355A-3L-B-15 Eaton: Eaton Bussmann series photovoltaic fuses, 355A, 1500V, 3L PV, BOLTED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS355A-3L-B-15
EAN
5996516049150
Product Length/Depth
201.4 mm
Product Height
91 mm
Product Width
74 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
355 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
250000
Watt losses
57 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Side indicator
Suitable for
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004973.pdf
DA-DC-00004973.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature: 355 A current rating at 1500 V DC with a 100 kAIC interrupt rating. Business Impact: Robust fault clearance in high‑energy PV strings reduces arc exposure and minimizes system downtime. Application: Suitable for large‑scale PV inverters and string connections in 1500 V DC networks. Feature: Pre-arc I2T of 250000 provides controlled arc energy during interruptions, increasing protection predictability and component longevity. Business Impact: Lower risk of collateral damage and equipment wear, improving maintenance cost profiles. Application: Utility-scale and commercial PV installations with rapid fault isolation. Feature: Class gPV construction and 3L fuse size with side indicator. Business Impact: Clear status signaling inside enclosures and compatibility with standard 3L PV protection schemes, simplifying installation and reducing commissioning time. Application: Enclosed switchgear and PV protection banks. Feature: Fitted with a side indicator and compatible with blade style fuse holders (blade with bolt holes). Business Impact: Easier visual verification and straightforward replacement, cutting downtime during maintenance. Application: Retrofit and new-build PV protection in compact enclosures. Feature: CE Marked, RoHS Compliant, and UL Listed with IEC 60269 alignment. Business Impact: Regulatory certainty across geographies, smoother procurement, and reduced compliance risk. Application: Global PV deployments in accordance with international standards.
Get a Quick Quote for a Eaton PVS355A-3L-B-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVS355A-3L-B-15?
Enquire Now
FAQs
The PVS355A-3L-B-15 is designed for blade with bolt hole holders. Ensure the enclosure supports a 3L PV fuse, then seat the device securely in the holder, connect the 1500 V DC PV string leads, and verify the side indicator shows a healthy status after commissioning. Follow manufacturer torque specs and ensure proper clearance for high‑voltage connections.
It features a 1500 V voltage rating, a 355 A amperage rating, and a 100 kAIC interrupt rating, all housed in a 3L form factor with a side indicator. The Class gPV designation, along with UL Listed and CE RoHS compliance, ensures compatibility with high‑voltage PV strings and inverter protections across global standards.
Yes. The device is CE Marked, RoHS Compliant, and UL Listed, with IEC 60269 alignment. This combination provides regulatory assurance for international projects and simplifies supplier qualification, procurement, and cross-border deployments.
The pre-arc (I2T) rating of 250000 indicates the energy the fuse can handle before arcing occurs, influencing fault current interrupt behavior and arc energy. A higher I2T generally correlates with better protection during surge and fault events, helping to minimize damage to PV components and adjacent equipment.
This fuse combines high current and voltage ratings with clear status indication and compatibility with common blade holders, reducing installation time and downtime. Its regulatory compliance reduces procurement risk, while the robust interrupt performance and 3L form factor support scalable, reliable protection for commercial and utility‑scale PV installations.
