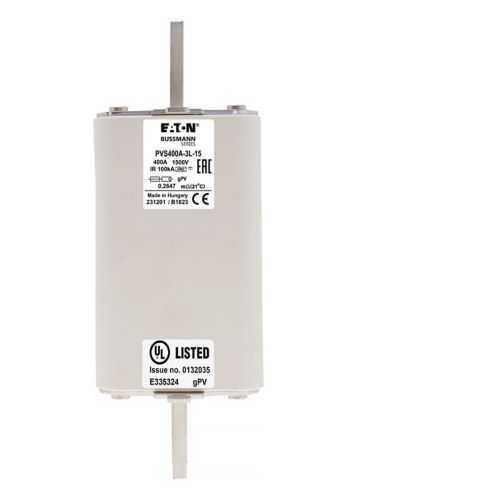

Eaton PVS400A-3L-15 Photovoltaic Fuse - UL Listed 100 kAIC
Part Number: PVS400A-3L-15
Quick Summary
Eaton Bussmann photovoltaic fuses protect PV systems by fast interrupting fault currents in solar installations. Engineers often struggle with high DC fault energy, arc risk, and complex protection schemes; this fuse simplifies design while enhancing safety. They carry CE marking with RoHS compliance, plus UL Listed and IEC 60269 certifications, supporting global acceptance. Designed for 1500 V DC inverters and PV strings, they integrate easily with the SD3L-S-PV XL base, delivering reliable protection and reducing lifecycle costs.
Product Information
Extended Description
PVS400A-3L-15 Eaton: Eaton Bussmann series photovoltaic fuses, 400A, 1500V, 3L PV, BLA,DED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS400A-3L-15
EAN
5996516049068
Product Length/Depth
205 mm
Product Height
82 mm
Product Width
75 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
400 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
315000
Watt losses
71 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Top indicator
Suitable for
SD3L-S-PV XL Fuse base
