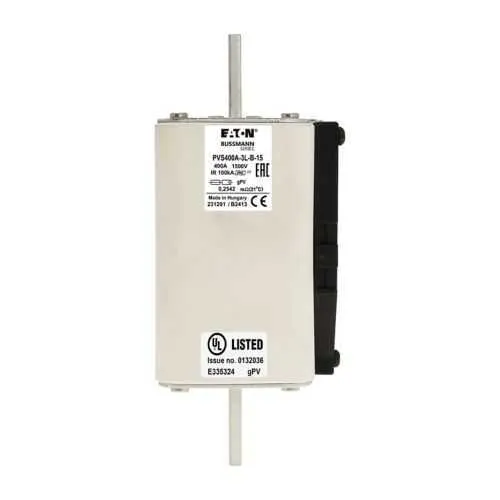

Eaton PVS400A-3L-B-15 Photovoltaic Fuses - UL Listed
Part Number: PVS400A-3L-B-15
Quick Summary
Eaton PVS400A-3L-B-15 Photovoltaic fuses protect solar inverters and PV arrays by interrupting fault currents. When field conditions expose strings to overcurrent or arc faults, downtime and warranty costs rise. It carries CE marking and UL listing, plus IEC 60269 compliance, ensuring regulatory alignment in global solar installations. Designed for photovoltaic protection with 3L size and 1500 V ratings, this fuse supports reliable inverter protection while enabling compliant, easy installation. Its 3L fuse size and side indicator aid quick status checks in field cabinets. Rated 400 A at 1500 V and 100 kAIC interrupt capability, it protects PV strings against high fault currents. Fitted with a side indicator for at-a-glance status monitoring reduces maintenance time.
Product Information
Extended Description
PVS400A-3L-B-15 Eaton: Eaton Bussmann series photovoltaic fuses, 400A, 1500V, 3L PV, BOLTED W IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS400A-3L-B-15
EAN
5996516049167
Product Length/Depth
201.4 mm
Product Height
91 mm
Product Width
74 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
400 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
315000
Watt losses
66 W
Application
Photovoltiac systems, inverters
Fuse indicator
With Indicator
Fuse size
3L
Fitted with:
Side indicator
Suitable for
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004973.pdf
DA-DC-00004973.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature → Business Impact → Application: The PVS400A-3L-B-15 delivers a 400 A rating at 1500 VDC, enabling high-current PV strings to be protected without nuisance blows, reducing downtime and maintenance costs in utility-scale and commercial PV installations. This improves system uptime for inverters and balance of plant, directly supporting energy yield and customer SLAs. Feature → Business Impact → Application: With a 100 kAIC interrupt rating and Class gPV profile, the device offers robust fault clearance in harsh outdoor environments, minimizing arc-flash risk and safeguarding cabinet integrity in utility substations and rooftop arrays. Feature → Business Impact → Application: Pre-arc I2T of 315000 and 66 W watt losses provide predictable thermal performance, helping engineers dimension cooling and enclosure space accurately for reliable long-term operation in solar plants. Feature → Business Impact → Application: Fitted with side indicator and 3L form factor, installation is simplified in blade-with-bolt-hole fixtures, enabling quick diagnostics and streamlined replacement during routine maintenance or string-level protection.
Get a Quick Quote for a Eaton PVS400A-3L-B-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVS400A-3L-B-15?
Enquire Now
FAQs
The PVS400A-3L-B-15 is designed for blade with bolt hole compatibility and includes a side indicator for quick status checks. Mount it in standard protective enclosures used for PV strings and inverter cabinets, ensuring correct orientation to maintain visibility of the indicator and proper cooling. Verify enclosure dimensions to accommodate the 201.4 mm length and 74 mm width of the device within the 3L form factor.
The fuse is rated for 400 A at 1500 V DC, with a 100 kAIC interrupt rating, Class gPV, and a pre-arc I2T of 315000. These figures mean it can protect PV strings against overcurrents and short-circuits typical in PV arrays and inverters, while handling high short-circuit energies safely and efficiently.
Yes. Its high current capability (400 A), high DC voltage rating (1500 V), robust interrupt rating (100 kAIC), and PV-class designation make it suitable for both utility-scale and commercial rooftop PV systems, providing reliable protection across string configurations and inverter connections.
The PVS400A-3L-B-15 carries CE marking and RoHS compliance, and is UL Listed with IEC 60269 compatibility, aligning with global electrical protection standards and simplifying compliance in diverse markets.
With a side indicator for quick status checks, 3L form factor ease of installation, and robust 66 W watt losses, the device minimizes maintenance time and energy losses. Its high interrupt rating reduces upstream fault propagation, contributing to longer system uptime and a lower total cost of ownership for solar PV projects.
