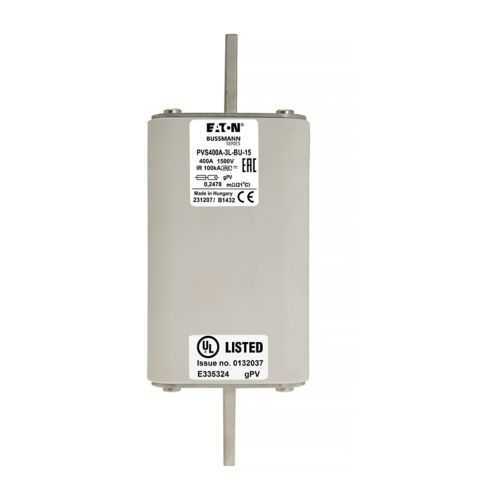

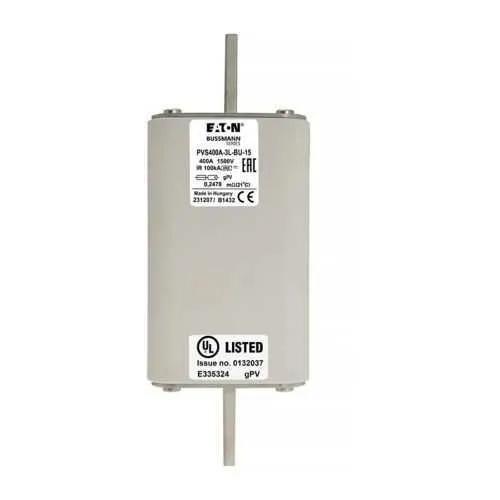

Eaton PVS400A-3L-BU-15 Photovoltaic Fuses - UL Listed
Part Number: PVS400A-3L-BU-15
Quick Summary
Eaton Bussmann series photovoltaic fuses protect solar power systems by interrupting faults in PV arrays. In practice, choosing the right fuse for 1500 V DC PV strings can be a challenge, risking costly downtime and fire hazards when protection isn’t fast or scalable. These devices are CE marked, RoHS compliant, and UL listed, with IEC 60269 certification and a 100 kAIC interrupt rating that support safe, long-term operation in utility-scale and commercial PV installations. By aligning with a 3L fuse size and compatible blade-bolt holders, you gain installation simplicity and consistency across inverters and string combiners, while maintaining standards compliance and reducing warranty concerns.
Product Information
Extended Description
PVS400A-3L-BU-15 Eaton: Eaton Bussmann series photovoltaic fuses, 400A, 1500V, 3L PV, BOLTED W/O IND
Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PVS400A-3L-BU-15
EAN
5996516049266
Product Length/Depth
201.4 mm
Product Height
74 mm
Product Width
74 mm
Product Weight
0.001 g
Compliances
CE Marked RoHS Compliant
Certifications
IEC 60269 UL Listed
Amperage Rating
400 A
Voltage rating
1500 V
Interrupt rating
100 kAIC
Class
Class gPV
Pre arc (I2T)
315000
Watt losses
66 W
Application
Photovoltiac systems, inverters
Fuse indicator
Non Indicating
Fuse size
3L
Suitable for
Blade with bolt holes
eaton-bussmann-series-photovoltaic-fuses-catalogue-ca135004en.pdf
DA-DC-00004974.pdf
DA-DC-00004974.pdf
Eaton Bussmann - Products for sustainable energy
PVS-3L Fuses flyer
PVS-3L Fuses data sheet
Feature: 400 A, 1500 V rating with 100 kAIC interrupt rating. Business Impact: Provides robust fault interruption for high-energy PV strings, protecting inverters and modules from damaging arc events. Application: Ideal for utility-scale and commercial PV installations where fast, reliable protection is mandatory. Feature: 3L fuse size with blade-bolt holder compatibility. Business Impact: simplifies mounting, reduces part variety, and streamlines procurement and field installation for OEMs and integrators. Application: Fits standard blade-and-bolt chassis inverters and combiner boxes. Feature: Non-indicating fuse indicator. Business Impact: minimizes maintenance requirements and avoids false alarms while delivering dependable protection. Application: Suitable for arrays where external status indicators are managed by system controllers. Feature: CE RoHS compliant, IEC 60269 certified, UL Listed. Business Impact: Ensures regulatory compliance and worldwide acceptance, reducing risk during audits and inspections. Application: Supports international projects and utility-grade PV deployments. Feature: Watt losses and pre-arc performance (66 W, 315000 I2T). Business Impact: Balances energy efficiency with fast fault clearing, improving system reliability and reducing total owned cost. Application: Effective in inverter input circuits and protection coordination schemes.
Get a Quick Quote for a Eaton PVS400A-3L-BU-15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVS400A-3L-BU-15?
Enquire Now
FAQs
What mounting arrangements best suit the PVS400A-3L-BU-15? This fuse is designed for blade with bolt hole assemblies, enabling straightforward integration into common PV string cabinets and inverter enclosures. Ensure the holder pattern matches the 3L fuse size and that clearance margins meet 1500 V dc safety requirements for reliable installation and maintainability over the system life.
The fuse is rated for 400 A and 1500 V with a 100 kAIC interrupt rating, class gPV. This combination supports high-energy PV strings, fast fault interruption, and safe operation in inverter inputs. The Pre-arc I2T of 315000 and watt losses of 66 W indicate selective coordination potential and manageable thermal behavior in typical outdoor PV installations.
Yes. With 1500 V dc capability, 400 A rating, and UL IEC 60269 compliance, the PVS400A-3L-BU-15 is designed for PV arrays and inverter protection in utility-scale and commercial deployments. Its 3L size and blade-bolt compatibility simplify integration into standard protection schemes while meeting stringent safety and performance standards.
The fuse carries CE marking, RoHS compliance, IEC 60269 certification, and UL Listed status. These certifications support global deployment, reduce compliance risk in inspections, and help OEMs demonstrate adherence to international safety and environmental standards for PV protection devices.
Using the PVS400A-3L-BU-15 can lower total cost of ownership by reducing downtime, preventing inverter damage from faults, and simplifying procurement with a single, standards-compliant high-voltage fuse across multiple installations. The 3L form factor, robust interruption, and certified reliability translate into improved system uptime and predictable maintenance needs.
