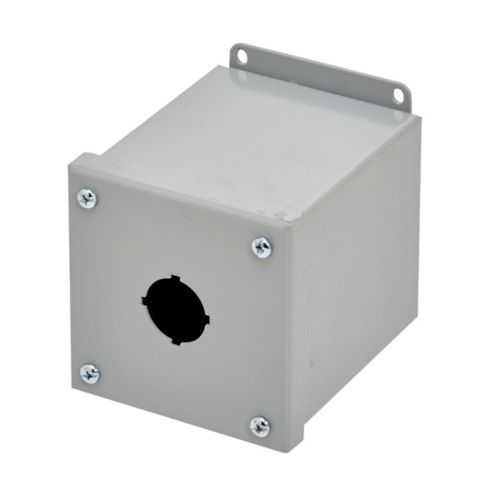

Eaton PVX1-4XS Push Button Enclosure - NEMA 4X
Part Number: PVX1-4XS
Quick Summary
The Eaton PVX1-4XS Push Button Enclosure protects control devices in industrial panels and outdoor installations. Engineers often struggle with corrosion, moisture ingress, and maintenance access in harsh environments, which can drive up downtime and service costs. Key standards include NEMA 4X protection for outdoor and wash-down suitability, 304 stainless steel construction for corrosion resistance, and a robust 16 gauge wall with an oil-resistant gasket for long-term sealing. This combination delivers reliable protection without compromising serviceability, supporting efficient panel design, easier field maintenance, and compatibility with standard push-button stations—helping you minimize lifecycle costs while maintaining safety and compliance.
Product Information
Extended Description
PVX1-4XS Eaton: Eaton B-Line series push button enclosures, 4" height, 4.75" length, 4" width, NEMA 4X, Screw cover, PVX4XS enclosure, Surface mounted, Medium single door, External mounting feet, 304 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PVX1-4XS
UPC
782051138184
Product Length/Depth
4.75 in
Product Height
4 in
Product Width
4 in
Product Weight
2.6 lb
Compliances
Not Applicable
Certifications
Not Applicable
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
PVX4XS enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Special features
Removable cover, recessed pull ring, s.s. screws
NEMA Rating
4X
Country of origin
US
Material and finish provide superior corrosion resistance with 304 stainless steel and a 16 gauge wall, paired with an oil-resistant gasket to seal out moisture. Business impact: reduced maintenance costs and longer interval service in wash-down and chemical environments; application: outdoor panels, food processing, and chemical processing facilities. NEMA 4X protection delivers reliable ingress protection against water and corrosion, improving uptime in outdoor installations, wash-down areas, and dusty environments. Business impact: higher reliability and lower risk of panel contamination; application: outdoor process control cabinets and exposed control stations. Surface mounting with external mounting feet simplifies retrofits and new installs, even in tight spaces; business impact: faster installation and lower labor costs; application: compact control panels and equipment rooms. The removable cover with recessed pull ring and stainless screws enables quick maintenance access, reducing shutdown times and service complexity; application: periodic operator interface servicing and component replacement. The finished Gray #4 brushed surface combines aesthetics with compatibility to OEM panels and protective enclosures, supporting scalable device integration in mixed automation environments. Business impact: standardized appearance and easier component replacement; application: multi-vendor control panels and modular enclosure systems.
Get a Quick Quote for a Eaton PVX1-4XS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVX1-4XS?
Enquire Now
FAQs
The PVX1-4XS is designed for surface mounting using external mounting feet, with a screw cover for a clean, tamper-resistant appearance. The enclosure’s 4 x 4 in body dimensions fit compact control panels, while the 16 gauge 304 stainless steel shell provides rigidity. Field installation is straightforward, reducing commissioning time and supporting quick upgrades to existing panels.
Key specifications include 4.75 in product depth, 4 in height, 4 in width, a body weight of 2.6 lb, 304 stainless steel material, 16 gauge wall thickness, and a NEMA 4X rating. The screw-style cover, surface mounting, and external feet enable flexible mounting. The oil-resistant gasket ensures effective sealing in wet or oily environments, supporting reliable operation in demanding installations.
Yes. The enclosure carries a NEMA 4X rating and is made from corrosion-resistant 304 stainless steel with an oil-resistant gasket, making it suitable for outdoor, wash-down, and harsh industrial environments. Its surface-mounted, externally footed design accommodates installations near moisture-prone areas while preserving access for maintenance and serviceability.
Maintenance is streamlined thanks to a removable screw cover and recessed pull ring, enabling quick access to internal components for inspection or replacement. The 304 stainless steel construction and gasketed seal resist corrosion and moisture, reducing cleaning frequency and prolonging service intervals. Regular checks should focus on gasket integrity and fastener tightness to maintain seal performance.
The PVX1-4XS delivers lifecycle value through exceptional corrosion resistance, durable stainless steel construction, and a robust NEMA 4X protection rating, which collectively reduce replacement and maintenance costs in outdoor or wash-down environments. Faster installation and easier field servicing also lower labor costs during commissioning and routine maintenance, improving overall uptime and asset availability.
