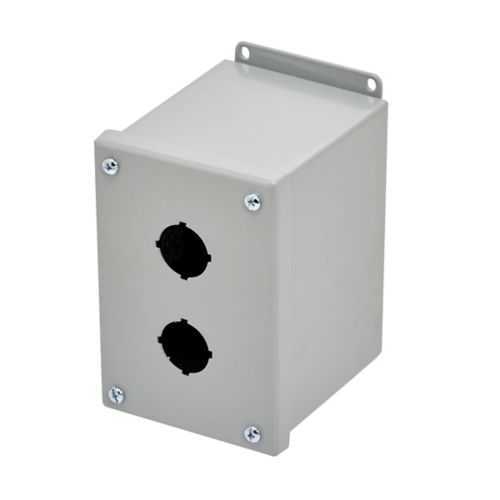

Eaton PVX2 Enclosures - Surface-Mount, NEMA 12
Part Number: PVX2
Quick Summary
Eaton PVX2 Enclosures provide rugged, surface-mounted housing for push-button controls in industrial panels. In busy facilities, protecting control circuits from dust, splash, and impact is a constant challenge, and downtime hurts productivity. This PVX2 carries UL 508A, CSA C22.2, and NEMA ratings for reliable compliance across North American installations. With a 6 in tall, 4 in wide footprint and a 16 gauge carbon steel body, it resists wear in harsh environments, while an oil-resistant gasket guards against fluid exposure. The screw cover simplifies maintenance access, and external mounting feet speed field installation. For engineers and buyers, the combination of durable materials and standard mounting reduces total cost of ownership and accelerates panel builds.
Product Information
Extended Description
PVX2 Eaton: Eaton B-Line series push button enclosures, 6" height, 4.75" length, 4" width, NEMA 12, Screw cover, PVX enclosure, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series push button enclosures
Catalog Number
PVX2
UPC
782051701203
Product Length/Depth
4.75 in
Product Height
6 in
Product Width
4 in
Product Weight
3.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
PVX enclosure
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
NEMA Rating
12
Country of origin
US
PVX2 combines a compact footprint with a heavy-duty carbon steel shell. The enclosure measures 6 in tall, 4 in wide, and 4.75 in deep, with a 16 gauge wall and a painted ANSI 61 gray finish. This combination yields a sturdy home for push-button interfaces while preserving valuable panel real estate. The surface-mount design and external mounting feet simplify retrofit and new-build installations in tight control rooms and machine bays. With a NEMA 12 rating and an oil-resistant gasket, PVX2 protects internal components from dust, water splash, and compatible fluids common in manufacturing environments. This reduces maintenance cycles and extends component life, even under rough handling. The screw cover provides straightforward access for routine wiring checks without exposing the interior to the environment, while external mounting feet support quick alignment and leveling during panel assembly. Constructed from carbon steel with ANSI 61 gray painted finish, PVX2 withstands shop conditions and pairs with standard push-button components. UL 508A and CSA C22.2 certifications promote regulatory compliance across North America, and the unit is designed to integrate with PVX enclosure family accessories and common mounting hardware. From control panels to motor start stations, PVX2 delivers consistent protection in medium-duty environments. The durable design reduces replacement costs and supports long service life, delivering a favorable return on investment for OEMs and maintenance teams. Its compatibility with surface mounting and external feet streamlines installation across diverse industrial applications.
Get a Quick Quote for a Eaton PVX2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton PVX2?
Enquire Now
FAQs
PVX2 supports surface mounting with external mounting feet and uses a screw cover for easy field servicing. This configuration enables quick alignment and leveling during panel assembly and retrofit projects, while preserving a compact footprint for control stations in tight industrial spaces.
PVX2 measures 6 in tall, 4 in wide, and 4.75 in deep. It is constructed from 16 gauge carbon steel and finished in ANSI 61 gray paint. The enclosure includes a screw cover and is designed for surface mounting with external feet, making it suitable for compact control panels.
Yes. PVX2 carries UL 508A and CSA C22.2 certifications and is rated for NEMA 12 protection. This combination supports regulatory compliance in North American installations and simplifies procurement for regulated environments.
PVX2 is well-suited for control panels, push-button interfaces, motor-start stations, and packaging lines. Its surface-mount design, external feet, and NEMA 12 protection make it ideal for factory floors, machine bays, and conveyors where dust, splash, and limited space are common concerns.
The screw cover and oil-resistant gasket simplify field servicing while protecting internal components, reducing downtime. Durable carbon steel construction and a robust finish extend service life, lowering replacement costs. Overall, PVX2 supports faster panel builds and improved uptime, delivering a favorable return on investment for OEMs and maintenance teams.
